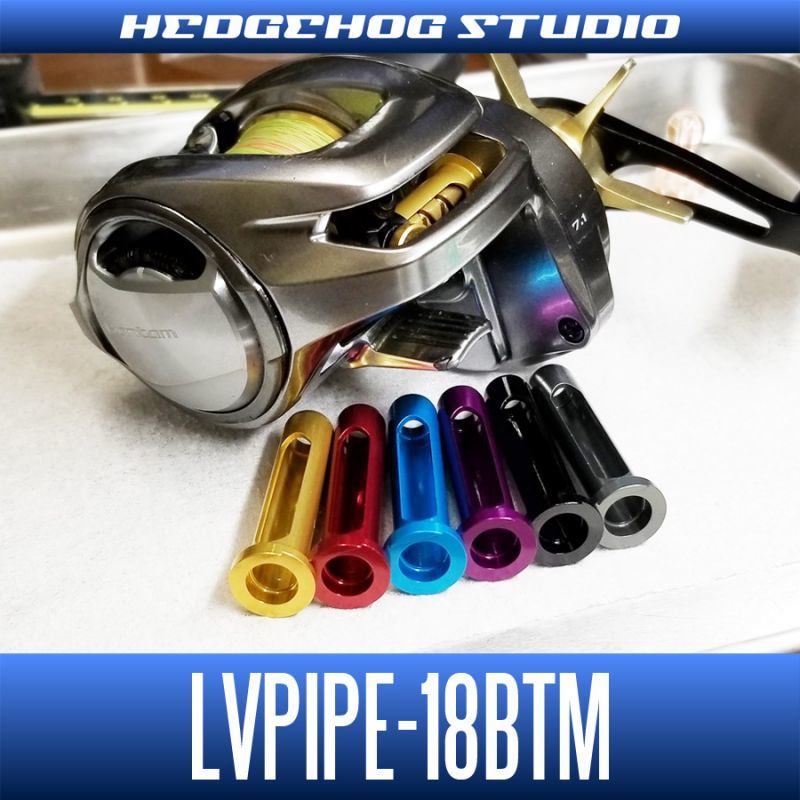

[SHIMANO] Level Wind Pipe LVPIPE-18BTM (3-Piece Set)

Product Description

Level-wind pipe LVPIPE-18BTM for Bantam and Metanium (common for left and right).

The component configuration is different from the genuine parts. Replacing the worm shaft with this level-wind pipe will allow the worm shaft to be converted to a 2BB.

Special worm shaft bearings and worm shaft pins are required for installation.


Contents



- Level Wind Pipe LVPIPE-18BTM
- Exclusive worm shaft bearing (SHG-630 or HRCB-630Hi)
- Exclusive worm shaft pin


Compatibility

- 22 Bantam
- 18 Bantam MGL

- 23 Metanium
- 22 Metanium SHALLOW EDITION
- 20 Metanium


About Bearings

Please select either [SHG Premium Bearing] or [HRCB Anti-rust bearing].

Included is one 630-size bearing.
If you wish to convert to 2BB, please also purchase worm shaft bearings (SHG-740ZZ or HRCB-740ZHi) on the following page.
The bearings are size 740 on the handle side of the level-wind pipe and size 630 on the side cover side.



Worm Shaft Bearing Kit (+1BB) for SHIMANO 22 Bantam, 18 Bantam MGL



Worm Shaft Bearing Kit (+1BB) for SHIMANO 23 Metanium, 22 Metanium SHALLOW EDITION, 20 Metanium


Color



- Red
- Sky Blue
- Royal Purple
- Champagne Gold
- Gunmetal


Installation Method



The reel needs to be overhauled to the condition shown in the photo for installation.


Please refer to the KAKEDZUKA DESIGN WORKS blog for detailed replacement instructions.




https://kakedzukass.com/18-bantam-mgl-level-wind-pipe-replacement/
