19 CYGNUS LBD 2500LBD, 2500H-LBD, 3000LBD, 3000H-LBD for MAX8BB full bearing tuning kit [surf fishing, Ukifukase fishing and the Grenadines, Medina]

Product concept

※ selling product is tuning kit, you are not in the reel body.
※ When you select the type of bearing, you will see each of the selling price.




With an emphasis on rotational performance, high sensitivity bearing of the tournament specifications.


It was adopted strong new material to corrosion, salt water corresponding bearing, which boasts the best of anti-rust and durability performance.

(Bearing of choice)
SHG premium bearing the light lure of freshwater fish and high-sensitivity-oriented, such as trout bus. The all saltwater fish in Salt General is recommended HRCB anti-rust bearings. ※ SHG is also salt can be used but, HRCB if to emphasize the durability is the best.

MAXBB full bearing tuning kit, can be added to BB from commercially available state until the maximum mounting number, "of dedicated bearing dedicated parts such-Manual" is a tuning kit which is full set. Recommended for beginners! We will send to align all the necessary things. ※ simple tool such as a screwdriver or pliers Please prepare.

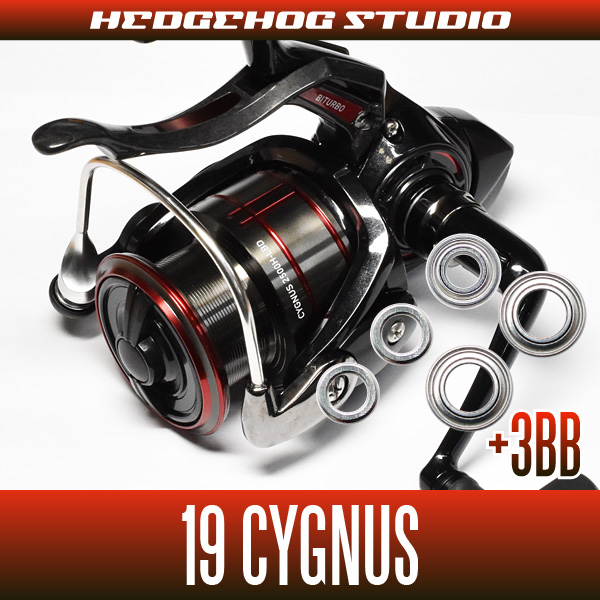

The contents of the tuning kit
(Tuning menu)
・line roller 1BB specification bearings Tune
・handle knob 2BB specification bearing tune


(contents)
・line BB × 1 pcs roller (SHG-630ZZ Or HRCB-630ZHi)
・handle knob for BB × 2 number (SHG-740ZZ or HRCB-740ZHi)
・roller washer (RK) 2 pieces ×
・installation instructions

※ three additional bearings here of the kit, and it is possible to the MAX8BB full bearing tuning.



Tuning menu

■ line roller 1BB specification bearings tune



because the line roller is genuine when the bearing is not included even one, it is possible to the line roller of 1BB specifications newly added one of the bearing.
(19 Cygnus LBD is, because it can not structurally put two bearings in the line roller, will be the only 1BB specification.)

Replace the arrow in the metal and white plastic collar to the bearing and roller washers.

Since the yarn twist when the rotation of the line roller will be better will be less likely to occur, suppleness of the yarn is maintained, also improves durability and distance.



■ handle knob 2BB specification bearing tune



handle knob part also to replace the two black plastic collar on the bearing, you can 2BB specification.

When the rotation of the handle knob is improved, not only the winding comfortable to go up, such as the exchange at the time of fight between the sensitivity and fish also has the advantage to be easier.


※ order to attach the here kit, mug shield (which is the inscription mug shield, part of the lower rotor) parts that are built do not touch at all on. We therefore, please be assured that does not have any such thing as mug shield comes off while working.

※ It is also easily possible to return the reel to reassemble the parts of the state of the genuine.



Compatible models



・Daiwa 19 CYGNUS LBD
( 2500LBD, 2500H-LBD, 3000LBD, 3000H-LBD )
