18 TATULA LT2000S-XH, LT2500S, LT2500S-XH Full Bearing Kit

Description

* The commercial product is the tuning kit, Not the fishing reel.
* Please select bearing type.



SHG bearing

The high-sensitive bearing whose rotary performance is terrific is for professional use. The products were carefully selected by hand work from the crowd of other bearings.
The rotational performance is superior to HRCB, and there is no rival for its ultimate smoothness.
This is the bearing to tune up for professional-use. It is very suitable for a high sensitivity reel to challenge by delicate tackle.



HRCB bearing

The new technique that metal itself is hard to get rusty very much by special manufacturing method is adopted.
The bearing is resistance to salt water.
And the derusting performance is more than ten times compared with SHG.
It makes rotation feeling like silky smoothness that's quite unique to HEDGEHOG STUDIO.
That helps tough fishing situation that requires both rotation performance and durability in a high level.
It is the next-generation anti-rust bearings for Salt Water angler.

How to choose bearings

SHG bearing : for freshwater fishing such as Bass/Trout or fishing which attaches importance to sensitivity by using light weight lures

HRCB bearing : for overall saltwater fishing which attaches importance to anti-rust effect
(Although you can use SHG bearing on saltwater fishing, HRCB bearing is more suitable because of its durability.)

It is the Full set of tuning kit consists of :
High-performance bearing / Peculiar parts / instructions
This one is for beginner tuners. We prepare and send all the necessary items.
* Please prepare drivers or pliers yourself.

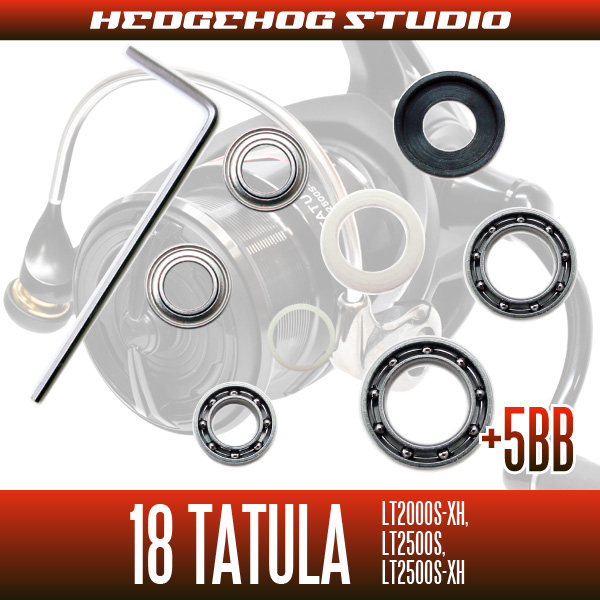

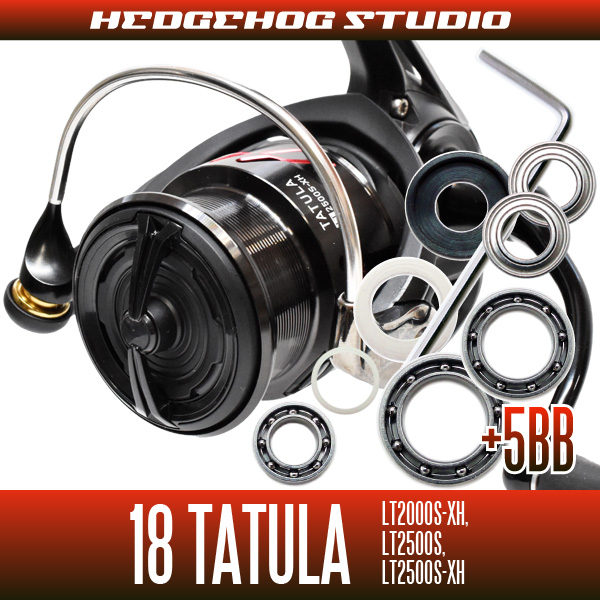

Contents

* Adding 5 bearings is possible by the kit.

・for 2 Bearing Line Roller System
・ Line Roller Bearing (SHG-740 or HRCB-740Hi) × 1pcs
・ Roller Packing ×1pcs
・ Roller collar ×1pcs
・ Roller washer ×1pcs

・for 2 Bearing Drag System
・ Spool Shaft Bearing (SHG-1170 or HRCB-1170Hi) × 1pcs
・ Spool Inside Bearing (SHG-1060 or HRCB-1060Hi) × 1pcs

・for 2 Bearing Handle Knob System
・ Handle Knob Bearing (SHG-740ZZ or HRCB-740ZHi) × 2pcs

・ Small wrench × 1pcs
・ Illustration Manual

Compatibility

18 TATULA
( LT2000S-XH, LT2500S, LT2500S-XH )

Instructions

・for 2 Bearing Line Roller System



18TATULAのラインローラー(ツイストバスターII)内部のプラスチックカラーをベアリング(740サイズ)に交換します。プラスドライバーでラインローラー部のネジを取り外し、内部のパーツをすべて取り出します。そして、オレンジ枠で囲っているパーツを付属のパーツと交換していきます。

ラインローラーの回転が良くなると糸ヨレが発生しにくくなりますので、
糸のしなやかさが保たれ、耐久性や飛距離も向上します。



・for Bearing Drag System (Spool Inside Bearing)



18TATULAのスプール内部にあるドラグワッシャー類を外していくと一番奥にカラーが見えます。

このカラーをベアリングに交換するのかフィネススプールドラグベアリングチューンです。

この部位にベアリングを追加することでドラグの回転をよりスムーズにすることが出来、ドラグのくいつきなども減少し、ファイト時のスムーズなライン放出をサポートします。


How to install



(1)まず、スプールからドラグリングやドラグワッシャーを取り外します。

この時、取り外したパーツを順番に並べておくと最後にパーツを再度組み込む時にスムーズに作業を行えますのでオススメです。




(2)ドラグワッシャーなどを取り外すと、スプールの底にストッパーリングで固定されたカラーが見えます。

これを小さなマイナスドライバーやつまようじなどでストッパーリングを外して、カラーを抜き出します。

※ストッパーリングは取り外しの際非常に紛失しやすいですのでお気をつけて作業されてください。




(3)カラーをキット付属のベアリング(1060サイズ)と交換します。




(4)ベアリングをスプール内に組み込み、ストッパーリングで固定します。

後は、ドラグワッシャー類を取り外した時と逆順で組み込み、リール本体に取り付けてスプールがスムーズに回転すること・クリック音がきちんと鳴ることをご確認ください。

問題なければ作業完了です。

きちんと動作しない場合は、どこかパーツの組み込みが間違っている可能性がありますので、再度分解し確認作業を行ってください。



・for Bearing Drag System (Spool Shaft Bearing)



18TATULAのスプールシャフト部に装着されているプラスチック製リングをベアリングに交換してドラグ性能を向上させることができます。

スプールを支えるこのパーツがベアリング化されることにより、よりスムーズな滑り出しが可能なドラグになります。


How to install



(1)まず、スプールシャフト部にある調整ワッシャーを取り外します。

するとイモネジが出てきます。




(2)これを付属の六角レンチで取り外します。




(3)すると、カラーとスプールメタルを取り外すことが出来ます。




(4)カラーをキット付属のベアリング(1170サイズ)と交換します。




(5)スプールメタルとベアリングを再度スプールシャフトへ取り付け、イモネジを使ってパーツを固定します。




(6)最後に調整ワッシャーを組み込んで作業完了です。



・for 2 Bearing Handle Knob System



18TATULAのハンドルノブ内にあるカラー2個をベアリングに交換します。

エアローターや精度の高いタフデジギアなどの恩恵で巻き感が滑らかなリールではありますが、ハンドルノブにベアリングを追加することでさらに上質な巻き心地と感度を向上させることが出来ます。


※こちらのキットを取付するにあたって、マグシールドが内蔵されているパーツ(マグシールドの刻印がされている、ローター下の部分)には一切手を触れません。従いまして、作業中にマグシールドが抜けるようなことは一切ありませんのでご安心下さい。

※パーツを組み直して純正の状態にリールを戻すことも簡単に可能です。

What is "Full Bearing Kit"?

It is kit that you can easily upgrade your reel by adding high performance bearings.
It's possible for beginners to tune a reel safe with clear instructions.


* Effect by bearing

・2 Bearing Line Roller System
Relieving line trouble / Increasing the sensitivity / Improving casting distance
Upgrade the performance of spinning reel.
2 Bearing Line roller System, which is loaded only on EXIST and STELLA, generates an excellent performance.

・2 Bearing Drag System
Get smooth drag by adding bearing!
It's safe to fight against a big fish with low test line.
2 Bearing Drag System, which is loaded only on EXIST and STELLA, generates an excellent performance.

・2 Bearing Handle Knob System
Get better feeling of winding and handling
Smooth handling by high-precision bearing
Depending on the type of reel, 1 bearing out of 2 is supposed to be the original one.

* Please note that some types of reel cannot be equipped with 2 Bearing System.
See Compatibility.

Quality

The difference between the bearings of HEDGEHOG STUDIO and the bearings generally sold.

Almost of all bearings that you can purchase in hardware stores or online stores at cheap price are made for industrial use.

Since industrial bearings are made on the assumption that those are rotated by electric motor, fitting them into a reel as they are causes “heavy and rough” rotation.

Reel is handled by human hands.
Turning the handle by human hands… in other words turning the bearing by our hands.
Therefore different quality from the industrial bearing rotated by a motor is asked for here.

The bearing of HEDGEHOG STUDIO is Japanese-made product tuned up in consideration of fitting it in a reel.
If you take in your hand, turn and compare the bearing of HEDGEHOG STUDIO with an industrial-use bearing, you will immediately understand the overwhelming difference in smoothness.

FAQ

Q:I'm tyring to tune a spinning reel for the first time. Isn't it difficult to do that if not used to it?

A:Although quite a few our customer are worried about it, most of those who tried it once said that was very easy to finish up.
With clear instructions, there is almost no inquiry about installation from customers after purchasing.


Q:Why does the kit include just 1 Line Roller bearing despite the kit is for "2 Bearing Line Roller System"?

A:Some kits include just 1 bearing for "2 Bearing Line Roller System".
It means that the reel has 1 line roller bearing originally and the original bearing is to be used as the other one for the 2 bearing system. (Then it comes to 2 beairngs.)
(The original bearing + one bearing with the kit = 2)
"2 Bearing Line Roller System" is NOT for all types of spinning reel.
See compatibility.


Q:Some kits do not include bearings for every systems.
For example, the kit for OLD CERTATE doesn't have bearing for line roller and handle knob.
Why is that?

A:In some types of reel, bearing cannot be added for all of the bearing systems.
In case of OLD CERTATE, it originally has 1 line roller bearing and 2 handle knob bearings already, and one more bearing cannot be added to line roller.
As to Drag System, the reel, which has no bearing in spool, can accept 1 bearing (not 2 bearings) to be added.
That's to say that all you are supposed to do for "Full Bearing" tuning of OLD CERTATE is to add just 1 bearing to spool shaft for Drag System.
It depends on the type of reel. So please check the compatibility.
When you click on the name of your reel type, you will see which bearing system you can get for your reel and what you should get for the systems.
