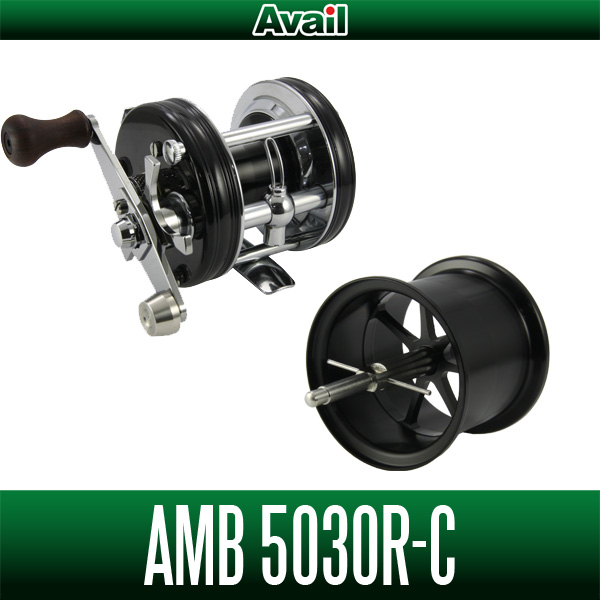

[Avail] ABU Microcast Spool [AMB5030R-C] for Ambassadeur 5000C/5001C

Model

Microcast Spool AMB5030R-C (Spool rim level: 3.0 mm)


Color



Black


Product Description



Microcast Spool for Ambassadeur 5000C OLD.

Can be installed on Ambassadeur 5000C and 5001C.

Production of the 5000C is said to have begun around 1967.
The spools shown on this page are compatible with models manufactured from the early days to around 1984, when they were reissued by EBISU FISHING.
The 5001C will also fit models manufactured from around 1972 to 1981.

Both 5000C and 5001C, and later (Mamiya-OP) reissue models have a bulge on the handle side plate, making this one non-conforming.

Please note that Ambassadeur 5000C and 5001C with the same name do not fit Palming models or ULTRACAST models.



Fits reels with spool shafts of the shape shown in the photo.

On the right, the cogwheel is removed. Remove the cogwheel and check the shape of the part that will be hidden.


Feature

By reducing the weight of the spool and the amount of spooled thread, the overall weight of the spool can be significantly reduced.
It greatly improves the minimum castable lure weight and increases the lure's casting distance at the same weight.


Spec

Basic Specifications

- Material
Spool portion: Super duralumin (colored by anodizing)
Shaft portion: stainless steel

- Weight
Microcast Spool AMB5030R-C: 16.0g
Genuine spool Ambassadeur 5000C (62172): 24.9g

- Compatible reels
Ambassadeur 5000C (models from the early days to the EBISU period)
Ambassadeur 5001C (models from 1972 to 1981)
and other models that can be fitted with spools with part number #8583

*Another model fits for rims manufactured after 1986 and 5001C.
ULTRACAST and Palming models cannot be installed.
*If you have any questions, please contact us by e-mail.


Line Capacity

12lb (φ0.285mm)：75ｍ
14lb (φ0.310mm)：60ｍ
16lb (φ0.330mm)：45ｍ

The above values are measured with Yamatoyo Tegusu Co., Ltd.'s nylon line (Versatile Design) wound to the bottom of the spool rim.


How to use



Remove the cogwheel on the genuine spool and port it to the Microcast Spool.


Attention

Thumbing with the spool rim may cause the anodized aluminum to peel off due to friction.
Thumbing should be done on the line winding surface of the spool.
