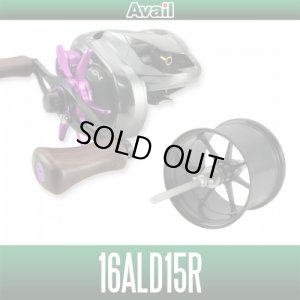

[Avail] SHIMANO Microcast Spool 16ALD15R for 16 ALDEBARAN BFS

Description

It is a microcast spool (custom spool) developed for SHIMANO BaitReel 16 ALDEBARAN BFS released by Avail.

This model is compatible with SHIMANO's original magnet brake, FTB (finesse tune brake system) brake.

The shallow groove model Microcast Spool 16ALD15R is suitable for fishing using the 4-6 lb line or PE line.

This spool has a shallow groove specification compared to the genuine spool, and due to its structure, the distance between the magnet brake and the spool is larger than that of the genuine spool.

As a result, if the genuine brakes are used, they will not be effective enough, so when using them, you can purchase a special neodymium magnet φ4 × 1mm set and add them to each of them for more comfort.



⇒[Avail] 8 pcs Magnet Set for Avail Spool 16ALD15R / 17SCP15R / 17CNQ15R

Regarding the Installation of Additional Magnets

To use the shallow groove type 16ALD15R, 8 auxiliary magnets φ4 x 1 mm are required.

Please use it after mounting the magnet sold separately on the magnet of the genuine brake.

Regarding Spool Bearings

The bearing mounted on the shaft of 16ALD15R, 16ALD29R is 740ZZ size.

Please note that the size is different from the bearing built into the genuine spool.

The bearing on the palming cup side is the same as the genuine one, and the 730ZZ size (inner diameter 3 mm x outer diameter 7 mm x thickness 3 mm) is suitable.




⇒SHG-740ZZ

Color

BLACK




RED




SKY BLUE




CHAMPAGNE GOLD

Spec

Material

Spool : Extra Super Duralumin
Shaft : Extra Super Duralumin


Spool Rim Level

16ALD15R : 1.5mm
16ALD29R : 2.9mm


Compatibility

16 ALDEBARAN BFS LEFT, RIGHT
16 ALDEBARAN BFS XG LEFT, RIGHT


Weight

Microcast Spool 16ALD15R : approx. 4.9g
Microcast Spool 16ALD29R : approx. 5.1g
Orginal Spool : approx. 7.7g
* It will be the weight including ball bearings.


Line capacity

16ALD15R:
4Lb φ0.165mm 45m
6Lb φ0.205mm 35m

16ALD29R:
10Lb φ0.260mm 50m
12Lb φ0.285mm 40m

* The numerical value above is the result of measuring by winding fluoro-carbon line up to the edge of spool rim.


* Cautions

There is a possibility that anodized color finish can be rubbed off by thumbing on the spool edge as you use. So it's better to thumb the fishing line wound on the spool.

When winding the line on the spool, applying too much tension may cause damage. Especially when winding a stretchy line such as a nylon line, loosen the tension before use.
