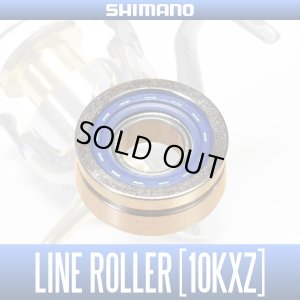

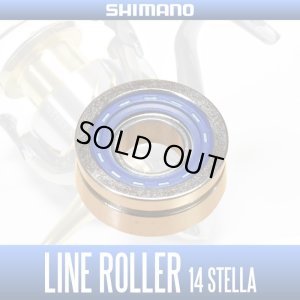

[SHIMANO Genuine] Line Roller for 14 STELLA [10KXZ] (1 piece) *SPLN

Product Description

SHIMANO Genuine Product



This is Line Roller originally equipped on SHIMANO 14 STELLA.




* The line roller bearing of 14 STELLA cannot be changed to a new bearing because the genuine line roller and the line roller bearing are unified and fixed tightly together. You need to replace the whole line roller unit if you want to exchange the line roller bearing. So the line roller cannot be upgraded by adding one more bearing or replacing just bearing itself separately from the line roller.

Quantity ： 1 piece



Compatibility

14 STELLA
(1000PGS, C2000S, C2000HGS, 2500, 2500S, 2500HGS, C3000, C3000SDH, C3000HG, C3000XG, 3000HGM, 3000HG, 4000, 4000HG, 4000XG)


Installation Method

Since all genuine line rollers are similar in construction, we will use the 14 STELLA as an example to explain replacing a genuine line roller.




Remove the bolt securing the line roller.




Depending on the condition of the reel, the bolt may be stuck, so be careful not to crush the threads when removing the bolt.

Caution


Depending on the reel type, the screw thread may be a flathead screw or a Torx screw. Please prepare a screwdriver suitable for your reel.




When the screws are removed, six parts can be removed.
Replace the line roller with a new one.




After replacing the line roller with a new one, assemble the parts in the above-numbered order.




First, install part (1).
This part has an installation orientation, so install it correctly according to its shape.




After installation, keep holding down part (1) with your finger, as shown in the photo, until the work is completed.
If the force is too loose and the part is displaced, it will not be installed correctly.




Attach part (2).




Attach the main unit of the line roller as shown in (3).

*Caution



There is an orientation for attaching the line roller.
If you look at the side of the line roller, you will see that the width of the grooves on both sides is different. The narrower side should face the bail side, and the wider side should face the fixing bolt side.




Attach part (4).




Attach the plate (5).




Raise the arm, correctly fit the tip of (1), and fix it with the bolt.




Finally, check that the parts are correctly installed and that the line roller rotates appropriately.
If there are no problems, the work is complete.
