[Avail] CARBON CLOTH DRAG WASHER DWASHER-CC

Model

DWASHER-CC


Description



Reel：09 ALDEBARAN Mg7

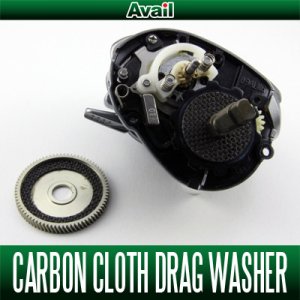

This is drag washer made from carbon fiber, useful for finesse fishing with baitcasting reels of SHIMANO, ABU, Isuzu.
By replacing the original drag washer with CARBON CLOTH DRAG WASHER, it makes your drag system possible to give a more reliable and smoother start to let out line especially when fighting a big fish with fine line.

* Please note that the maximum resisting drag force will be lower thanthat of the genuine product.
Please use it according to the purpose such as target fish and tackle.
By replacing it with our product, the parts around the drag washer may wear faster.
Please note that.


Handling precautions

This product is for incorporation into reels.
Please do not use it for any other purpose.

This product is made from a material that contains a lot of carbon fiber.
If you touch the skin directly, it may cause pain and itching, so please handle and store it with care.
If you feel pain or itching, rinse with water or hot water.


CARBON CLOTH DRAG WASHER


A-Type


B-Type


C-Type


D-Type


E-Type


F2-Type


Spec

Basic Specifications

Model
CARBON CLOTH DRAG WASHER A-Type

Size
Main gear inside φ32.6mm×φ24.6mm×1.0mm(thick)
Main gear outside(Flat side) φ24.6mm×φ8.1mm×1.0mm(thick)

Compatibility
SHIMANO
15 ALDEBARAN BFS XG Limited (Genuine product, larger one made of carbon)
12 ALDEBARAN BFS XG (Genuine carbon made)
09 ALDEBARAN Mg7
* Not compatible with 09 ALDEBARAN Mg (Model with gear ratio 5.8: 1)
11 Scorpion DC/DC7
10 Scorpion XT 1000
09 Scorpion XT 1500/1500-7
10 Amenista
14 Brenious
01 CONQUEST 200
14 CONQUEST 200
12 STEPHANO 200
13 STEPHANO 200XG
And the left handle of each model


Model
CARBON CLOTH DRAG WASHER B-Type

Size
Main gear inside φ23.4mm×φ15.6mm×1.0mm(thick)
Main gear outside(Flat side) φ15.6mm×φ8.1mm×1.0mm(thick)

Compatibility
ISUZU
BC420
BC420 PESCATORA
BC430

SMITH
PLUGGER

SHIMANO
BANTAM 10SG
BANTAM 100SG MAG CAST
BANTAM 100EX
BANTAM 20SG MAG CAST
BANTAM 200SG
Lew's
SPEED SPOOL BB-1
SPEED SPOOL BB-2
SPEED SPOOL BB-20

SHIMANO
BM series BM-1 *
BM series BM-2 *
BM series BM-3 *
BM series BM-4 *
And the left handle of each model
* Compatible with models released in 1977.
* Not compatible with models released in 1984.


Model
CARBON CLOTH DRAG WASHER C-Type

Size
Main gear inside φ35.4mm×φ26.0mm×1.0mm(thick)
Main gear outside(Flat side) φ26.0mm×φ8.1mm×1.0mm(thick)

Compatibility
SHIMANO
07 Metanium Mg7
08 Metanium MgDC7
12 ANTARES HG
06 ANTARES DC7
16 Scorpion 70HG (Genuine carbon made)
15 CHRONARCH CI4+150 (Genuine carbon made)
15 CHRONARCH CI4+150HG (Genuine carbon made)
14 Scorpion 200 (Genuine carbon made)
14 Scorpion 200HG (Genuine carbon made)
15 CURADO 200PG (Genuine carbon made)
15 CURADO 200 (Genuine carbon made)
15 CURADO 200HG (Genuine carbon made)
And the left handle of each model


Model
CARBON CLOTH DRAG WASHER D-Type

Size
Main gear inside φ26.6mm×φ17.0mm×1.0mm(thick)
Main gear outside(Flat side) φ17.0mm×φ8.1mm×1.0mm(thick)

Compatibility
SHIMANO
Scorpion ANTARES
92 Metanium XT
00 Metanium Mg
00 Scorpion 1000
04 Scorpiion Mg 1000
97 Scorpion 1500
CALCUTTA 200XT
01 CALCUTTA CONQUEST 50
04 CALCUTTA CONQUEST 50S
11 CALCUTTA CONQUEST 50DC
15 CHRONARCH CI4+ 150/150HG

ISUZU
520X
Megabass
PAGANI P300
And the left handle of each model


Model
CARBON CLOTH DRAG WASHER E-Type

Size
Main gear inside φ31.2mm×φ23.2mm×1.0mm(thick)
Main gear outside(Flat side) φ23.2mm×φ8.1mm×1.0mm(thick)

Compatibility
SHIMANO
15 ALDEBARAN 50 (Genuine carbon made)
15 ALDEBARAN 50HG (Genuine product, larger one made of carbon)
09 ALDEBARAN Mg
* Not compatible with 09 ALDEBARAN Mg7 (model with gear ratio 7.0: 1)
ANTARES AR
01 CALCUTTA CONQUEST 100
10 CALCUTTA CONQUEST 100DC
09 CALCUTTA CONQUEST 200DC
14 CALCUTTA CONQUEST 100
12 STEPHANO CI4+ 200 (Genuine product, larger one made of carbon)
And the left handle of each model


Model
CARBON CLOTH DRAG WASHER F2-Type

Size
Main gear inside φ26.2mm×φ18.0mm×1.0mm(thick)
Main gear outside(Flat side) φ16.0mm×φ8.1mm×1.0mm(thick)

Compatibility
ABU
ambassadeur 1500C
ambassadeur 1600C
ambassadeur 2500C
ambassadeur 2600C
ambassadeur 5500C BLUE GRAY (Mamiya OP)
And the left handle of each model
* Compatible with both models with gear ratios of 1500C to 2600C of 4.7: 1 and 5.3: 1.
[Avail] High Speed Gear Set for Abu ambassadeur 1500C-2601C
* Renewed in May 2021
The outer diameter of the main gear outside (Flat side) has been changed to 2.0 mm smaller to prevent contact with the anti-river's dog.


How to replace

Let us take "09 ALDEBARAN Mg7" as an example.


Necessary tools : wrench, cross slot screwdriver, flat-blade screw driver
* Tweezers will be useful too.


Take the handle and star drag off the reel.


Loosen these 3 screws to open the handle side plate.


Make sure not to lose those springs close to the pinion gear!


Take out the drive gear.


Then remove the original star drag washers.


In exchange for the original washers, install new carbon drag washers on. The carbon drag washers need to be greased before being installed.


After putting carbon drag washers, put all parts back one by one.


Make sure to put the parts in the right direction.


After putting all parts back, please check if the drag sytem works properly by turning the handle as you press and stop the spool spinning with your thumb with no drag tension.
