[SHIMANO] "Kattobi" Spool Bearing Kit - AIR CERAMIC - [1150AIR & 1030AIR] for ANTARES, CALCUTTA CONQUEST, Metanium, Bantam, Scorpion, GRAPPLER, EXSENCE

Description

"Kattobi" Tuning Kit is special bearing for bait casting reels.
It is a 2-pack set.

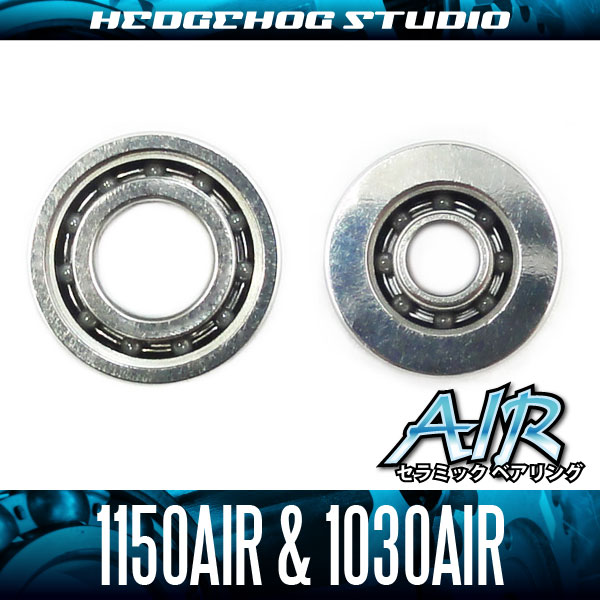

Bearing size : 1150AIR (5mm x 11mm x 4mm) & 1030AIR (3mm x 10mm x 4mm)

With English instructions, even the beginner can easily replace bearings.
Please enjoy the upgrade of your reel!!

To replace spool bearings, you need a "HEDGEHOG STUDIO Spool Bearing Pin Remover".
If you do not have one, please purchase from the following link.
> http://www.hedgehog-studio.co.jp/product-list/2



This is super-high rotation bearing working well for "finesse fishing" with a bait casting reel, which manages some lure weight between about 1g to 28g (1/28oz to 1oz).

By the adoption of a small-diameter ceramic ball and high-strength molding housing, you can cast lures of the MAX 1oz class, not to mention what is most suitable for finesse fishing with baitcast reel.
The bearing is NOT a tender design for exclusive use to finesse fishing with baitcast reel.
Having a rotary response by casting an ultra lightweight lure, you can taste the same sense as the use of normal bearing.

Once you try the "AIR" and cast it, you can feel the difference.
Please experiance the ultimate rotation performance of "AIR bearing".

* "AIR Bearing" is Designed & Trademark patent of HEDGEHOG STUDIO Co.,Ltd.


Product Features





* When fully casting a lure weighing 20g or more, the maximum reachable distance is about the same for all bearings, but the AIR bearing series is easier to control at short distances such as pitching.
(For lightweight lures weighing less than 20g, the AIR bearing series will increase the distance of a full cast compared to a regular bearing.)

* AIR BFS bearings are a cost-reduced version of AIR ceramic bearings.
It does not mean that AIR BFS bearings are more likely to produce greater distance when used in bait finesse than AIR ceramic bearings.
Even if only ultra-lightweight lures are used, the AIR ceramic bearing will provide superior total balance.

* If you want to use the highest performance bearing, choose the AIR Ceramic Series.
Lure weighing less than 20g → AIR Ceramic Bearing
Lure weighing more than 20g or used mostly in saltwater → AIR HD Ceramic Bearing

* The above recommended weights are for casting. Even heavier loads can be applied when not making full casts, such as jigging or offshore fishing.
(AIR Ceramic Bearing is recommended for offshore fishing when increasing the sinking speed of the trap is important, and AIR HD Ceramic Bearing is recommended for jigging main use.)

* All bearings can be used in saltwater, but the AIR HD ceramic bearing has the best corrosion resistance, followed by the ZHi bearing.



Compatibility

- 19 ANTARES NORMAL, HG
- 18 ANTARES DC MD XG
- 16 ANTARES DC NORMAL, HG

- 24 CALCUTTA CONQUEST SHALLOW EDITION 30HG, 31HG
- 23 CALCUTTA CONQUEST MD
300XG RIGHT, 300XGLH RIGHT, 301XGLH, 400XG RIGHT, 400XGLH RIGHT, 401XGLH
- 21 CALCUTTA CONQUEST 100, 200
- 15-18 CALCUTTA CONQUEST 300, 301, 400, 401

- 23 Metanium 100HG, 101HG, 100XG, 101XG
- 22 Metanium SHALLOW EDITION NORMAL, HG, XG
- 20 Metanium NORMAL, HG, XG
- 16 Metanium MGL NORMAL, HG, XG

- 22 Bantam RIGHT, LEFT, HG RIGHT, HG LEFT, XG RIGHT, XG LEFT
- 18 Bantam MGL PG, NORMAL, HG, XG

- 21 Scorpion MD

- 24 OCEA CONQUEST CT 300PG, 300MG, 300HG, 301MG, 301HG
- 22-23 OCEA CONQUEST 200PG, 201PG, 200HG, 201HG, 300PG, 301PG, 300HG, 301HG, 300XG, 301XG
- 19-20 OCEA CONQUEST LIMITED 200HG, 201HG, 200PG, 201PG, 300HG, 301HG, 400HG, 300PG, 301PG
- 18 OCEA CONQUEST CT 200HG, 200PG, 201HG, 201PG, 300HG, 300PG, 301HG, 301PG
- 15-16 OCEA CONQUEST 300PG, 301PG, 300HG, 301HG

- 24 GRAPPLER PREMIUM 150XG, 151XG
- 22 GRAPPLER BB 150HG, 151HG
- 17 GRAPPLER 300HG, 301HG

- 17 EXSENCE DC XG RIGHT, LEFT

- 23 ENGETSU PREMIUM 150PG RIGHT, 151PG LEFT, 150HG RIGHT, 151HG LEFT
- 22 ENGETSU BB 100PG RIGHT, 101PG LEFT, 100HG RIGHT, 101HG LEFT

- 20 BAY GAME 300PG, 301PG

- 24 Barchetta PREMIUM 150DH RIGHT, 151DH LEFT, 150DHXG RIGHT, 151DHXG LEFT


How to replace the bearing of SHIMANO 19 ANTARES (Increased difficulty)

19 ANTARES spool bearings are mounted on the spool body in size 1150ZZ and on the side plate side in size 1030ZZ.

The bearings built into the spool body can be removed and replaced in the conventional way by using our spool bearing remover or similar.

The bearing on the side cover side cannot be easily removed due to the special structure of the stock bearing, so it is necessary to disassemble the side cover part when replacing it.


Step 1



First, disassemble the parts inside the side cover until it reaches the state shown in the above photo.


Step 2



Then, turn over the base part that contains the bearing, and insert a toothpick or other thin object into the hole in the center of the part (arrowhead).
The internal parts are then pushed out and the bearings can be removed together.


Step 3



Finally, after replacing the bearings, the disassembled parts are assembled back together.

At this time, the brake dial should be set to MIN for smooth operation.

* Note that this operation can be performed more smoothly if the reel body is disassembled and the side covers are removed.
Many of the parts inside the side covers are also very small, so please work carefully.


How to replace the bearing of 16 ANTARES DC



16 ANTARES DC has bearings installed in the spool body and DC unit, so replace those bearings.

For further details, please visit the following link.




How to replace the bearing of 16 Metanium MGL



Unlike the 13 Metanium, the 16 Metanium MGL has a bearing mounted on the spool, so we will replace that.
* The side cover plate side is common to 13 Metanium.

For further details, please visit the following link.




How to replace the bearing of 15 CALCUTTA CONQUEST 300, 400



Bearing sizes and replacement parts for CALCUTTA CONQUEST vary depending on the reel number.
For 15 CALCUTTA CONQUEST 300 and 400, the bearings inside the spool shaft section and side cover will be replaced.

For further details, please visit the following link.




HEDGEHOG STUDIO Spool Bearing Remover



To replace a bearing on the spool shaft of most DAIWA and ABU GARCIA,
you need a special tool to remove the pin of spool shaft.
> http://www.hedgehog-studio.co.jp/product-list/2


FAQ

Q. Is it necessary to clean Hedgehog bearings before attaching to reel?

A. No, it isn't.
Generally, bearings available on the market for industrial use and hobbies have no good rotation very often, because relatively hard grease is often clogged up in the inside of the bearing and some dust get inside of the bearing.

Haven't you purchased the bearing of such low-priced editions, washed the them yourself and used them up to now?
Have you ever experienced to heard some noise or felt some rumbling from bearings after cleaning them thoroughly?
You never get good results no matter how many times it its washed, as long as the accuracy of bearing is bad.

All bearings of HEDGEHOG STUDIO are tuned up and coordinated "Just for fishing reels".
All the bearings are selected one by one by our craftsman's hand after assembly, and only the bearings with excellent rotation performance pass the checks.
And they are filled up with the "Alchemy Oil" developed only for the bearing, and are shipped.

Therefore, it is not necessary to clean or to lubricate oil of a different manufacturer since our bearing condition is the highest in performance when they arrive to you.
You will be able to get the best performance by just opening the package of bearings and setting them to your reel.

Q. What is the rating of your (HEDGEHOG STUDIO'S) bearing in the ABEC (Annular Bearing Engineers' Committee) scale?

A. It is the question we get most often from overseas customers.
Because the bearings of HEDGEHOG STUDIO are Japanese-made products developed exclusively for reels, it is not applied to the ABEC scale which is an American Standard.
However, the performance is the "non-standard" quality and precision which exceeds ABEC9 rating.

Q. Is it easy to replace the bearing?

A. Yes, it comes with installation instructions in the kit, so you can easily replace the bearings the first time.
Moreover, the bearing currently attached in the inner part of the spool shaft is also replaceable by using the spool bearing remover of HEDGEHOG STUDIO.

Q. Does it cause backlash easily because the spool becomes high rotation?

A. On the contrary, it causes backlash less. Casting softly gives rise to sufficient rotational force so that you can make a cast by utilizing the bending of the rod.
Especially, among professional anglers on tours day after day,
There is also much evaluation of being very hard to get tired since useless energy is not nesesarry for casting, and becoming easy to carry out thier control.
However, each person has its own habit in their cast. For anglers who had cast with all thier might up to now, we suggest setting up the brake somewhat stonger at the bebinning then gradually getting used to it.

Q. Is oil lubrication necessary for bearing?

A. Except for some bearings, HEDGEHOG STUDIO's bearings are lubricated with proper amount of Alchemy Oil and then shipped .
(* Alchemy Oil Ultra Light is used for baitcast reels.)

After the purchase, when attaching bearing to reel at first, there is neither necessity for degreasing nor oil lubrication.
However, since the oil film becomes gradually weak after going fishing several times, in that case please put one drop of the Alchemy oil into the bearing, so that the initial performance will last much longer.

Alchemy Oil is a special oil for ultra-low friction.
When lubricated by mixed with a lot of frictional resistance oil of others, there is a fear that bringing down the initial performance.
We recommend lubrication of Alchemy Oil.
