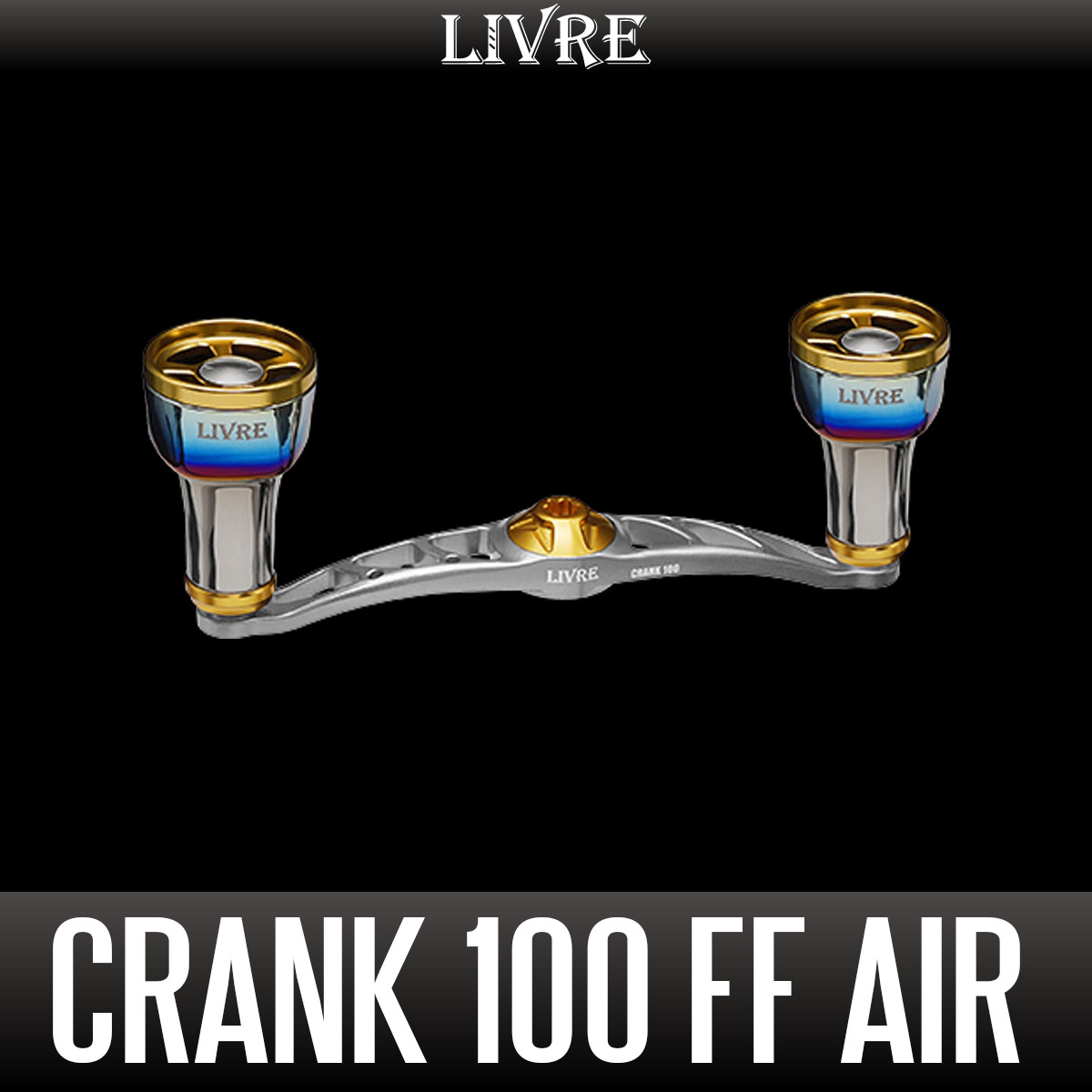

[LIVRE] CRANK 100 Handle *LIVHASH

* Please note that it takes about 4 to 5 days for us to get ready to send LIVRE handles since it's back-ordered after receiving your order.

[Knob Selection] f -Forte- Fino Fino Plus Fino Plus (Black IP) ff -Fortissimo- EF 30 PT 35 EP 37 EP 41  [Knob Color Selection] *Color samples are Fino.        Silver  Fire  Brown (IP)

Model	Manufacturer Type	Center Nut	Pitch (mm)	Weight (g)	Product No.	Item No.
CRANK 100	SHIMANO	Right	100	48.9	FRSK100-A3	133*
		Left			FLSK100-A3	134*
	DAIWA/Abu	Right		48.6	FRDK100-A3	233*
		Left			FLDK100-A3	234*
	KURODIKOBO (including drag)			49.3	FKKK100-A3	157*
	DAIWA B1			49.4	FB1K100-A3	235*
	No Center Nut			46.3-	FK100P-A3	135*
* Some SHIMANO Calcutta series are compatible with DAIWA.

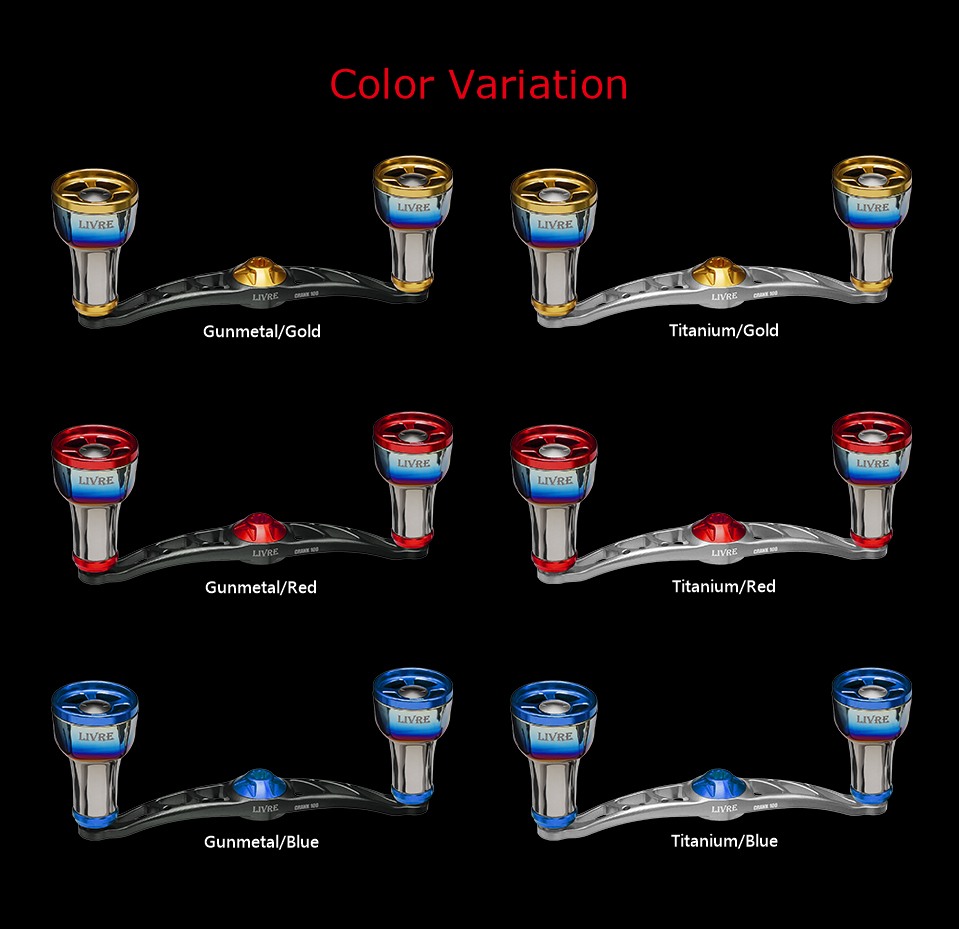

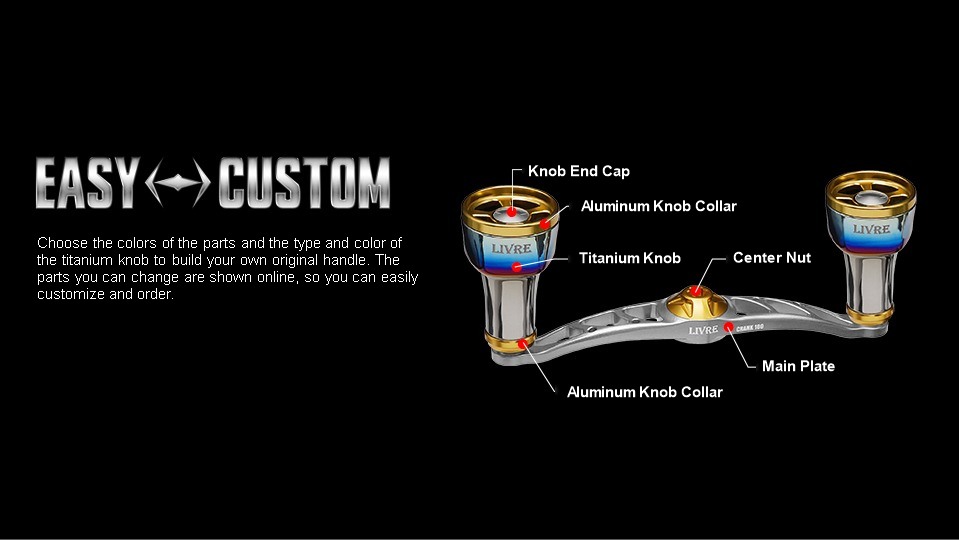

Main Plate	Titanium Knob	Center Nut	Aluminum Knob Collar	Knob End Cap	Item No.
Gunmetal	Silver	Gold	Gold	Gunmetal	1
Titanium		Gold	Gold	Titanium	4
Titanium		Red	Red	Titanium	6
Gunmetal		Red	Red	Gunmetal	7
Gunmetal		Blue	Blue	Gunmetal	8
Titanium		Blue	Blue	Titanium	9

Product Description

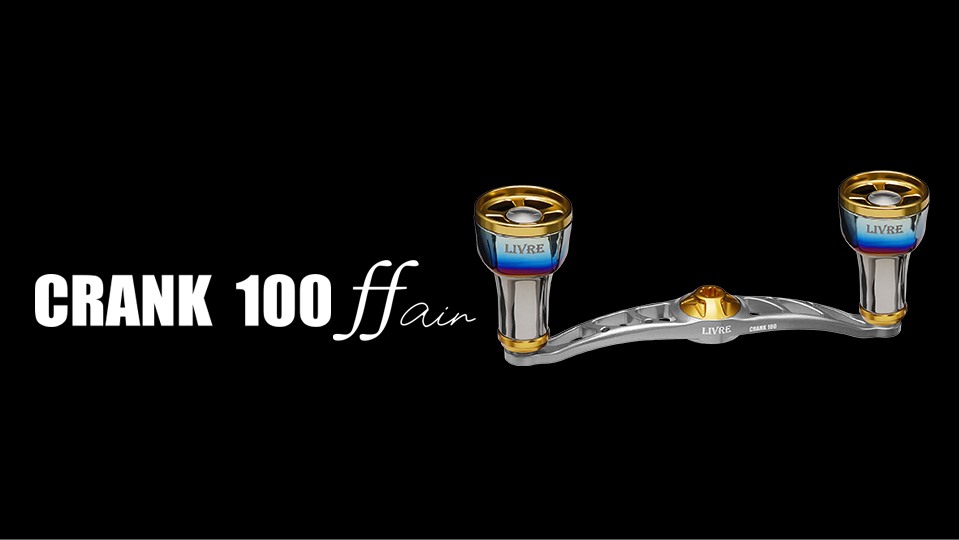

Unyielding Strength. CRANK 100

Steady Handle

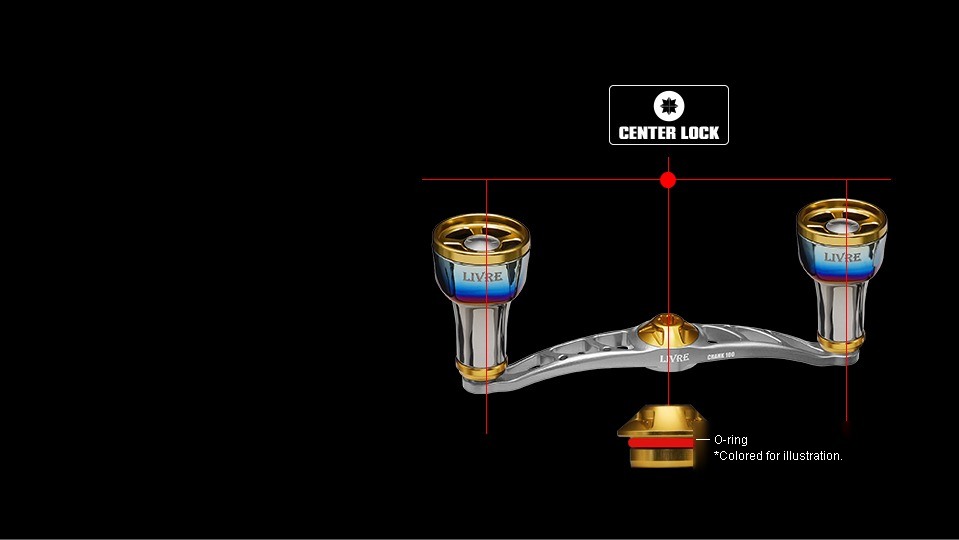

The handle adopts a center-lock method that eliminates the need for anti-loosening plates and small screws.
The round material is precisely machined (NC) to carve out the center of the screw part, and an O-ring is used to ensure the nut becomes the center of the plate.
Anyone can easily install a custom handle centered, achieving an incredibly steady winding feel.

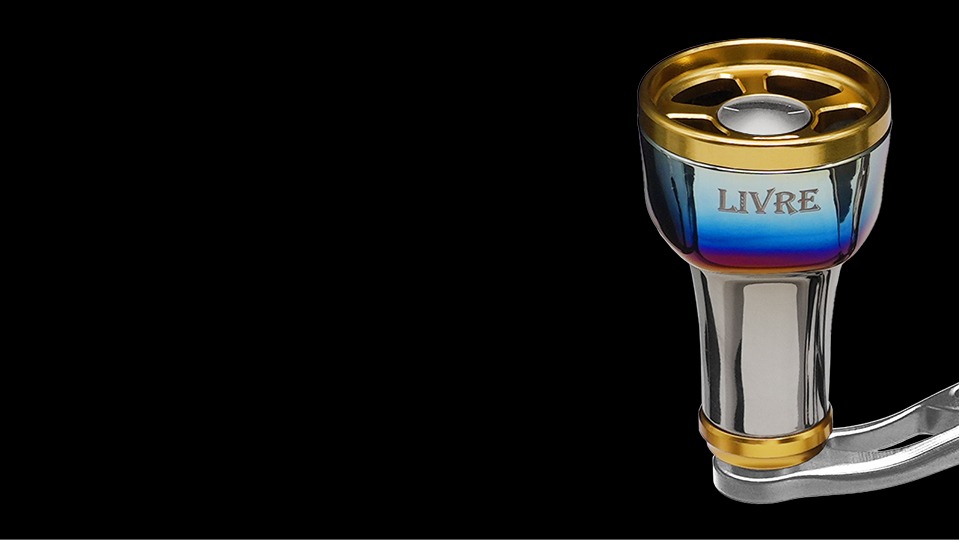

Equipped with "Fortissimo", a Thin-Walled Hollow Titanium Knob that Balances Lightweight and Styling
"Fortissimo" has a round shape on the palm side and a gentle pentagon shape on the reel side.
It is gentle on the palm and designed to prevent slipping where the fingers touch.

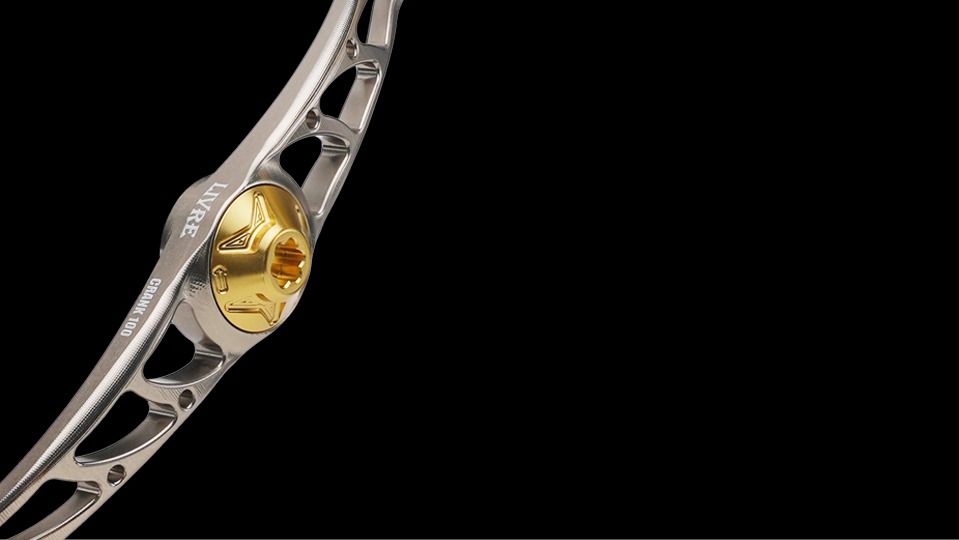

A7075 Super Duralumin 3D Machined
Duralumin is a type of aluminum alloy, called "A7075" in the Japanese Industrial Standards (JIS), which has excellent stress resistance and is used for thick plates and forged products.
The material is used for thick plates and forgings.
It is 3D-machined with an H-section using high-precision machining.
While placing the highest priority on maintaining high rigidity, the maximum amount of wall removal can only be achieved by machining.

Compatible with a Wide Variety of Reels from Various Manufacturers

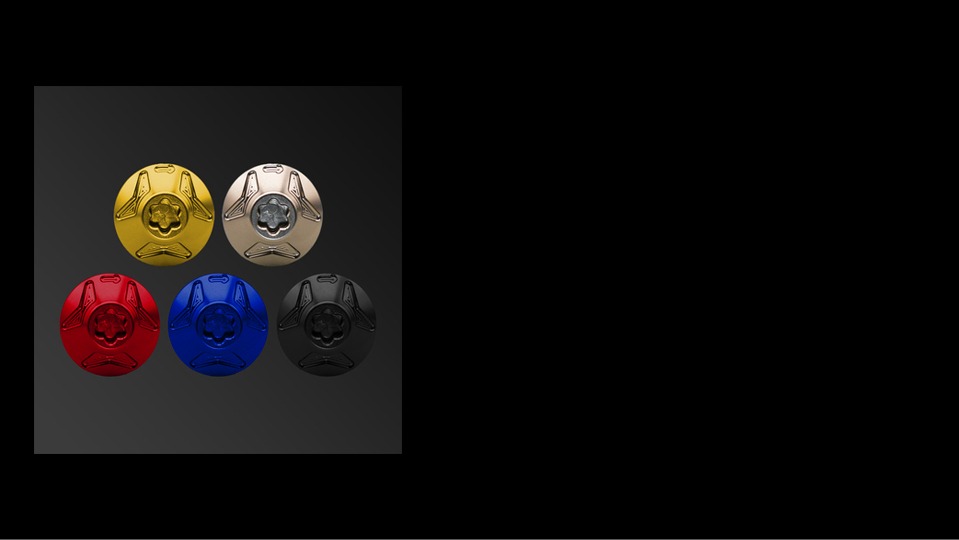

If the center nut is purchased separately, it can be attached to SHIMANO/DAIWA/AbuGarcia/PFLUEGER reels.
The industry's first quick-change system is adopted.
Simply by replacing the included hex washer with the main plate, it can be attached to reels from various manufacturers.


Compatibility Table

■SHIMANO

SLX MGL [19] 70, 70HG, 70XG
SLX DC [20] 70, 70HG, 70XG

ALDEBARAN MGL [18] 30 HG RIGHT, 30 RIGHT, 31 LEFT, 31HG LEFT
ALDEBARAN Mg [09] ALDEBARANMg, ALDEBARAN Mg7
ALDEBARAN BFS [16] RIGHT (LEFT), XG　RIGHT (LEFT)
ALDEBARAN BFS XG LIMITED [15] RIGHT (LEFT)
ALDEBARAN [15] 50 (51), 50HG (51HG)
ALDEBARAN BFS XG [12] ALDEBARAN BFS XG

ANTARES DC [16] DC HG RIGHT (LEFT), DC RIGHT (LEFT)
ANTARES DC MD [18] MD XG RIGHT (LEFT)
ANTARES [98] ANTARES 5, ANTARES Version2
ANTARES [19] RIGHT (LEFT), HG RIGHT (LEFT)
ANTARES [12] ANTARES, ANTARES HG
ANTARES [06-07] ANTARES DC, ANTARES DC7, ANTARES DC7LV
ANTARES [03] ANTARES AR

EXSENCE DC [20] HG RIGHT (HG LEFT), XG RIGHT (XG LEFT)
EXSENCE DC [17] XG RIGHT (XG LEFT)
EXSENCE DC [12] EXSENCE DC

OCEA CALCUTTA [11] 200HG (201HG), 200PG (201PG)

OCEA CONQUEST Limited [20] 200HG (201HG), 200PG (201PG)
OCEA CONQUEST [15] 200PG (201PG)
OCEA CONQUEST [14] 200HG (201HG)
OCEA CONQUEST CT [18] 200HG (201HG), 200PG (201PG)

CASITAS MGL [16] 100 (101), 100HG (101HG)

CALCUTTA [05] 50 (51)

CALCUTTA CONQUEST DC [20] 100DC (101DC), 100DC HG (101DC HG), 200DC HG (201DC HG)
CALCUTTA CONQUEST DC [19] 200DC (201DC)
CALCUTTA CONQUEST DC [11] 50DC (51DC)
CALCUTTA CONQUEST DC [10] 100DC (101DC)
CALCUTTA CONQUEST DC [09] 200DC (201DC)
CALCUTTA CONQUEST DC [03] 250DC
CALCUTTA CONQUEST BFS [17] HG LEFT, HG RIGHT
CALCUTTA CONQUEST [15] 100HG (101HG), 200HG (201HG)
CALCUTTA CONQUEST [14] 100 (101), 200 (201)
CALCUTTA CONQUEST [01] 100 (101), 200 (201), 50 (51)

CARDIFF DC [09] 50S (51S)

CURADO [15] 200 (201), 200HG (201HG), 200PG

CHRONARCH MGL [17] 150 (151), 150HG (151HG), 150XG (151XG)
CHRONARCH CI4+ [14] 150 (151), 150HG (151HG)

GRAPPLER BB [16] 200HG (201HG)
GRAPPLER Premium [18] 150XG (151XG)
GRAPPLER CT [19] 150XG (151XG)
GRAPPLER CT [16] 150HG (151HG)

CITICA [15] 200 (201), 200HG (201HG)

Scorpion MGL [19] 150 (151), 150HG (151HG), 150XG (151XG LEFT)
Scorpion DC [17] 100 (101), 100HG (101HG)
Scorpion BFS [17] XG RIGHT (XG LEFT), RIGHT ( LEFT)
Scorpion [16] 200 (201), 200HG (201HG), 70 (71), 70HG (71HG), 70XG (71XG)
Scorpion [14] 200 (201), 200HG (201HG)
Scorpion XT [10] 1000 (1001), 1500 (1501), 1500-7 (1501-7)
Scorpion Mg [04] 1000 (1001)
Scorpion DC [11] Scorpion DC, Scorpion DC7

Stile SS [17] 150HG (151HG), 150PG (151PG)
Stile [16] 100HG (101HG), 100PG (101PG), 100XG (101XG)

SPEED MASTER [06] 200 (201)

BARCHETTA Premium [19] 150 (151), 150DH (151DH), 150DHXG (151DHXG)
BARCHETTA [18] 300PGDH (301PGDH)
BARCHETTA [17] 200HG (201HG), 300HG (301HG)
BARCHETTA F CUSTOM [20] 150 (151), 150DH (151DH), 150DHXG (151DHXG)
BARCHETTA CI4+ [14] 200HG (201HG), 300HG (301HG)
BARCHETTA BB [17] 300HG (301HG), 300HGDH (301HGDH), 300PGDH (301PGDH), 600HG, 600PG
BARCHETTA BB [14] 200HG (201HG), 300HG (301HG)

BANTAM MGL [18] MGL HG RIGHT (LEFT), MGL PG RIGHT (LEFT), MGL RIGHT (LEFT), MGL XG RIGHT (LEFT)

Brenious [14] RIGHT (LEFT)

BAY GAME [18] 150 (151), 150DH (151DH)
BAY GAME [14] 300 (301), 300HG (301HG)

Metanium MGL [16] Metanium MGL, Metanium MGL HG, Metanium MGL XG
Metanium DC [15] Metanium DC, Metanium DC HG, Metanium DC XG
Metanium [20] Metanium, Metanium HG, Metanium XG
Metanium [13] Metanium, Metanium HG, Metanium XG
Metanium [08] Metanium Mg DC7
Metanium [07] Metanium Mg, Metanium Mg7, Metanium Mg DC
Metanium [05] Metanium XT

炎月-ENGETSU-Premium [18] 150HG (151HG), 150PG (151PG)
炎月-ENGETSU- [09] RIGHT・LEFT
炎月-ENGETSU- CT [19] 150HG (151HG), 150PG (151PG)
炎月-ENGETSU- CT [15] 100HG (101HG), 100PG (101PG)
炎月-ENGETSU- BB [16] 100HG (101HG), 100PG (101PG)
炎月-ENGETSU- BB [10] RIGHT・HG RIGHT・PG RIGHT
炎月-ENGETSU- [17] 100HG (101HG), 100PG (101PG)
炎月-ENGETSU- 7 [09] RIGHT・LEFT


■DAIWA/ABU

OCEA CALCUTTA [13] 300HG (301HG)（※）

OCEA CONQUEST Limited [19] 300HG (301HG), 300PG (301PG), 400HG（※）
OCEA CONQUEST [16] 300PG (301PG)（※）
OCEA CONQUEST [15] 300HG (301HG)（※）
OCEA CONQUEST CT [18] 300HG (301HG), 300PG (301PG)（※）

CALCUTTA CONQUEST [18] 300 (301), 400 (401)（※）
CALCUTTA CONQUEST [15] 300 (301), 400 (401)（※）
CALCUTTA CONQUEST [10] 200TypeJ-HG (201), 200TypeJ-PG, 300TypeJ, 300TypeJ-HG, 300TypeJ-M（※）
CALCUTTA CONQUEST [01] 300, 400 (401)（※）

GRAPPLER [17] 300HG (301HG)（※）

ForceMaster [18] 400DH (401), 600（※）
ForceMaster [15] 300DH (301DH)（※）
ForceMaster [13] 400 (401), 400DH (401)（※）

※It is for Daiwa.
Please specify or enter the reel name when ordering.
It will be shipped after replacing it with the dedicated center bolt (nut).


PE Special 8.1R-TW (L)

It’ICV 150R (L), 150WR (L), 200R (L)

SS AIR [14] 8.1R (L)
SS SV [14] 103 (L), 103H (L), 103SH (L), 105XH (L)

SV LIGHT Limited [18] 6.3R (L)-TN, [18] 8.1R (L)-TN

T3 [13] SV 6.3R-TW (L), SV 8.1R-TW (L)
T3 MX [13] 1016H (L), 1016SH (L), 1016XH (L)
T3 AIR 6.8R-TW (L), 8.6R-TW (L)
T3 1016H-TW (L), 1016SH-TW (L)

AGGREST PE SP 100H (L)
AGGREST 100H (L), 100SH (L)

ALPHAS SV [15] 105 (L), [15] 105SH (L)
ALPHAS AIR [16] 5.8R (L), [16] 7.2R (L)
ALPHAS Finesse Custom 105H (L)
ALPHAS AIR Stream Custom 7.2R (L)
ALPHAS type-F 103 (L)
ALPHAS R-Edition 103 (L)
ALPHAS 150H (L)

CATALINA　BJ [16] 100H (L), 100P(L)-RM (L), 100SH (L), 200SH (L)

SEABORG Limited 200J (L)
SEABORG 150J (L), 150J-DH (L), 200J (L), 200J-DH (L), 200J-SJ (L)

Team DAIWA ZILLION PE SP 100H (L)
Team DAIWA ZILLION HLC 100H (L)
Team DAIWA ZILLION 100H (L), 100P-CC (L), 100SH (L)

SPARTAN MX IC [18] 150H (L), 200H (L)
SPARTAN TW [18] 100H (L)
SPARTAN TW 150H (L)
SPARTAN RT TW 100SH (L), 100XH (L)
SPARTAN IC [19] 200H (L)
SPARTAN IC [18] 150H (L)

SMAK [12] 100SH (L)
SMAK RED TUNE SH 100SH (L)

SALTIST ICS [14] 103SH (L)
SALTIST ICS [13] 100SH (L)

TATULA [14] 100H-TW (L), 100SH-TW (L), 103-TW (L), 103H-TW (L), 103SH-TW (L), 103XH-TW (L)
TATULA TW [19] 100H (L), 100SH (L), 100XH (L)
TATULA SV TW [17] 6.3R (L), [17] 7.3R (L), 8.1R(L)
TATULA HLC [15] 7.3R-TW (L), 8.1R-TW (L)

TIERRA IC [20] 100XH (L), 105XH (L)

LIBERTO PIXY AIRY RED (L), SILVER MICA(L), PRESSO・BAIT (L)
PX68 SPR 68RSPR (L)
PX68 68R (L)

FUEGO CT [16] 103H (L), 103SH (L)

BLAST BJ TW [18] 150SH (L)

Millionaire 凛牙-RINGA- HL 103 (L)
Millionaire Bay Casting SP 103 (L)
Millionaire Bay Area SP 100 (L)
Millionaire Basara [15] 100H (L), 200H (L)
Millionaire SW 103 (L)
Millionaire CV-Z 103 (L), 105 (L)

LIGHT GAME ICV [15] 150H (L)

RYOGA SHRAPNEL [15] C3000H (L)
RYOGA [18] 1016 (L)-CC, 1016H (L), 1520 (L)-CC, 1520H (L)

紅牙-KHOGA- [14] 100 (L)
紅牙-KHOGA- ICS [13] 103 (L)

鏡牙-KYOGA- 100SH (L)


■DAIWA B1

DAIWA Z 2020H (L), 2020SH
Z BLACK Limited 2020SH (L)

HRF Sonic Speed 9.1R (L)-TW
HRF PE Special 7.3R (L)-TW

ALPHAS CT SV [19] 70H (L), 70SH (L)

CATALINA TW [18] 100P (L)-RM, 100SH (L)
CATALINA IC [18] 100SH (L), 150SH (L)

Team DAIWA ZILLION J DREAM 5.3R-JD (L), 6.3R-JD (L), 7.9R-JD (L)
Team DAIWA ZILLION PE SP [12] 7.9R (L)
ZILLION TW [15] 1516 (L), 1516H (L), 1516SH (L), 1516XXH (L)
ZILLION TW HLC [18] 1516SH (L)
ZILLION TW HLC [16] 1514SH (L)
ZILLION TW HD [18] 1520 (L)-CC, 1520H (L), 1520SH (L), 1520XH(L)
ZILLION SV TW [20] 10.0R (L)
ZILLION SV TW [16] 1016SV (L), 1016SV-H (L), 1016SV-SH (L), 1016SV-XXH (L)

STEEZ Limited SV [14] 103H-TN (L), 105XH (L)
STEEZ Limited SV TN 103H-TN, 103HL-TN
STEEZ [13] SV 6.3R (L)
STEEZ SV TW [16] 1012SV-XH (L), 1016SV-H (L), 1016SV-SH (L)
STEEZ CT SV TW [19] 700H (L), 700XH (L)
STEEZ A TW [17] 1016 (L)-CC, 1016H (L), 1016SH (L), 1016XH (L)
STEEZ AIR TW [20] 500H (L), 500XXH (L)
STEEZ 100H (L), 100SH (L), 103H (L)

SALTIGA BJ [17] 100P-RM (L), 100SH (L), 200H (L), 200SH (L)

TATULA HD CUSTOM [15] 150H-TW (L), 150SH-TW (L), 153H-TW (L), 153SH-TW (L)

Millionaire CT SV [19] 70H (L), 70SH (L)

morethan PE TW [18] 1000SH (L)-TW, 1000XH (L)-TW
morethan PE SV 8.1R (L)-TW

RYOGA BAY JIGGING [14] C1012PE-H (L), C1012PE-SH (L), C2025PE-SH (L)
RYOGA BAY JIGGING C1012PE-HW (L)
RYOGA 1016 (L), 1016H (L), 2020 (L), 2020H (L)

紅牙-KHOGA- TW Hyper Custom [18] 4.9R (L)-RM, 8.6R (L)
紅牙-KHOGA- TW [17] 4.9R (L)-RM, 7.3R (L)
紅牙-KHOGA- IC [18] 100P (L)-RM
