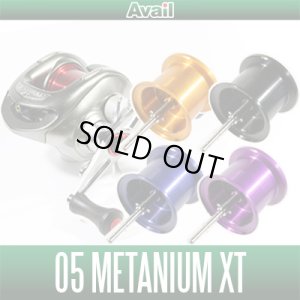

[Avail] SHIMANO Microcast Spool MT05XT25 / MT05XT39 for 05 Metanium XT

---

｜Regarding the stock of AVAIL product

---

It takes us two to three days to get ready to send Avail products
because we order them from the Avail factory.
Sometimes they might be out of stock at the timing of your order.
In the case of a stockout, we refund your purchase price immediately.

---

｜Type and description

---

Metanium
Avail Microcast Spool MT05XT25
（The spool rim level is 2.5mm）
Avail Microcast Spool MT05XT39
（The spool rim level is 3.9mm）


This model is for '05 Metanium XT.
The diameter is φ34mm (same as Metanium Mg).
You can use a genuine centrifugal brake and also magnetic brake "Microcast Brake SHSC-05A".

---

｜Spool colors

---

・BLACK
・NAVY
・RED
・PURPLE
・ORANGE
・GUNMETAL

---

｜Braking system options

---

With No brake
※When you just remove SVS from your genuine spool and use it, please choose here.
At the most reasonable price, you can try the performance of lightweight spool.



With 4P centrifugal brake
※ It is lightweight exclusive brakes and you can easily attach it.
Since it is manufactured more lightly (about 0.3g loss in quantity) than a genuine SVS unit, the spool gross weight also becomes still lighter.



With a magnetic brake
※ Although the attachment would be difficult, fine tuning of the magnetic brake is possible even with SHIMANO reel. Metanium

---

｜Spec

---

｜Material

Spool : extra super duralumin
Shaft : stainless-steel

｜Compatibility

'05 Metanium XT

｜Weight

Microcast Spool MT05XT25 : 8.9g
(The weight ratio against genuine product approximately 73%)
Microcast Spool MT05XT39 : 8.1g
(The weight ratio against genuine product approximately 67%)

SHIMANO genuine spool : 12.1g

※The numerical values mentioned above are the result of measuring with SVS unit.

｜Line capacity

MT05XT25　12Lb-55m：10Lb-65m：8Lb-85m
MT05XT39　14Lb-75m：12Lb-90m：10Lb-105m：8Lb-135m

※The numerical value mentioned above is the result of measuring by winding nylon line up to the edge of spool rim.

---

｜Instruction

---

｜How to replace genuine SVS


To remove the SVSunit off the spool

The unit is press-fitted tightly.
Pull the unit by holding the 3 part protruding from the unit, little by little with patience.
(Please take great care not to damage SVS and scratch spool.)

| How to use 4-points centrifugal brake
(Although you need to purchase the brake separately, the replacement is very easy.)



Just attach the centrifugal brake purchased to the spool with no difficulty.
You can use the genuine Shimano brake blocks.

This choice will be nice if you are concerned about pulling up SVS from a genuine spool.
And it will be also convenient if you do not want to remove SVS unit because you want to use the genuine spool as a spare.

｜How to use the magnetic brake



Attach the brake on the receiver as pictured above.
Turn the screw to adjust the brake.
When the distance between the magnetic pole face and the bottom-face of spool inside gets closer, the brake becomes stronger.
