  3. > [DAIWA] 25 STEEZ LIMITED CT SV TW Genuine Parts List - Schematic Diagram & Parts Diagram
  4. > [DAIWA] Genuine Spare Parts for 25 STEEZ LIMITED CT SV TW 70XH Product code: 00630326 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 STEEZ LIMITED CT SV TW 70XH Product code: 00630326 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 25 STEEZ LIMITED CT SV TW 70XH Product code: 00630326 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

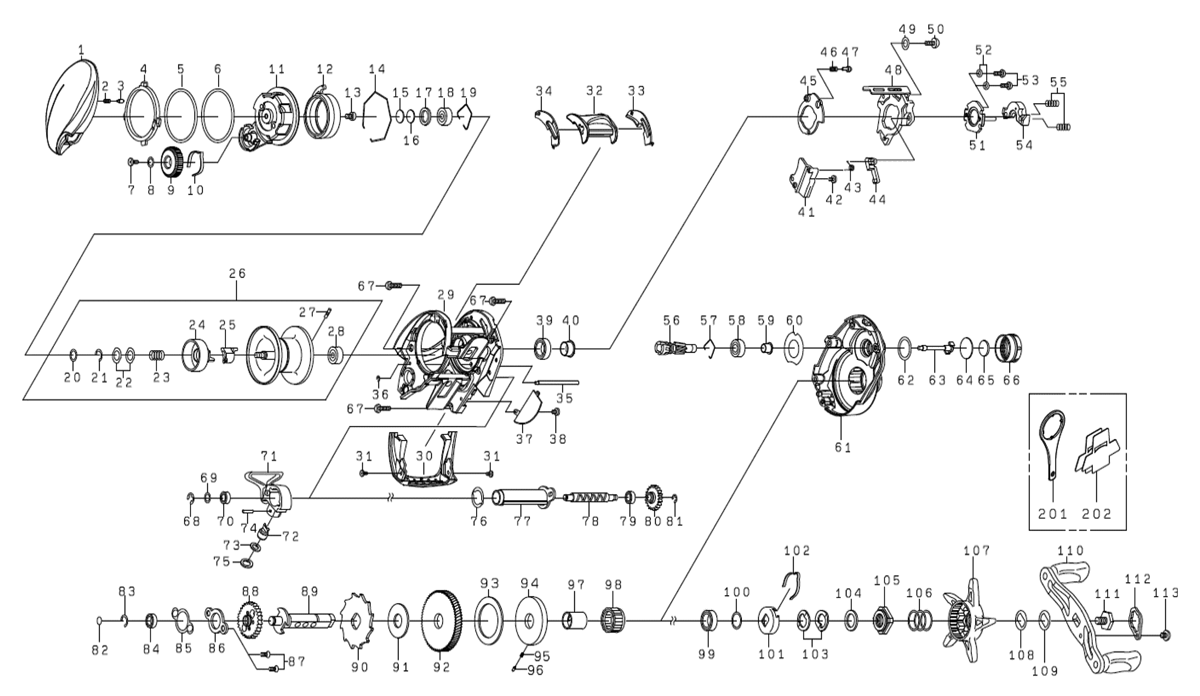

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS PLATE 6M777701 45.10
2 LEVER PLATE SP 6J631901 2.20
3 LEVER PLATE PIN 6J286301 2.20
4 LEVER PLATE (A) 6J741601 2.20
5 LEVER PLATE (B) 6J742601 2.20
6 LEVER PLATE (C) 6J741703 2.20
7 BRAKE DIAL SC 6G940402 2.20
8 BRAKE DIAL SC-W 6H159201 1.10
9 BRAKE DIAL 6J741807 7.70
10 BRAKE DIAL LEAF SP 6H663401 2.20
11 SET PLATE 6J741301 46.20
12 MAG HOLDER 6J741901 24.20
13 SET PLATE SC 6H666002 2.20
14 MAG HOLDER RING 6J742201 2.20
15 LS BEARING W (A) 63757404 1.10
16 LS BEARING W (B) 63757411 1.10
17 LS BEARING W (C) 6G185101 1.10
18 LS BALL BEARING 6G511506 15.40
19 LS BEARING RING 6F032201 2.20
20 SPOOL HOLDER O-RING 6H770601 1.10
21 SPOOL HOLDER SP RETAINER 63208002 2.20
22 SPOOL HOLDER SP-W 6J497001 1.10
23 SPOOL HOLDER SP 6H862301 2.20
24 SPOOL HOLDER 6J699901 34.10
25 SPOOL HOLDER COLLARS 6J190301 2.20
26 SPOOL (20-28) 6Z028174 151.80
27 SPOOL PIN 6H358802 2.20
28 SPOOL BALL BEARING 6G511506 15.40
29 FRAME 6M840301 126.50
30 FRONT COVER *Not available 6J740907 0.00
31 FRONT COVER SC 6H531507 2.20
32 CLUTCH LEVER 6J739202 9.90
33 CLUTCH LEVER PLATE (R) 6J738401 2.20
34 CLUTCH LEVER PLATE (L) *Not available 6J738501 2.20
35 OSCILLATING POST 6J741001 2.20
36 OSCILLATING POST RETAINER 6H704101 2.20
37 RS COVER PLATE 6J738601 2.20
38 RS COVER PLATE SC 6H531507 2.20
39 CLUTCH CAM BALL BEARING 6G431008 15.40
40 CLUTCH CAM BEARING COLLAR 6M518401 7.70
41 KICK LEVER PLATE (A) 6J739101 3.30
42 KICK LEVER PLATE (A) SC 6H531507 2.20
43 KICK LEVER PLATE SP 6J915201 2.20
44 KICK LEVER 6J622901 6.60
45 CLUTCH CAM PLATE 6J739001 2.20
46 CLUTCH CAM PLATE SP 6H928801 2.20
47 CLUTCH CAM PLATE PIN 6J055201 2.20
48 CLUTCH CAM 6J738701 9.90
49 CLUTCH CAM PLATE W 6H450701 1.10
50 CLUTCH CAM PLATE SC 6B360405 2.20
51 KICK LEVER PLATE (B) 6H659103 3.30
52 KICK LEVER PLATE (B) W 6G913306 1.10
53 KICK LEVER PLATE (B) SC 6B032905 3.30
54 CLUTCH PLATE 6H929001 3.30
55 CLUTCH SP 6J313901 2.20
56 PINION + DRIVE GEAR SET 6Z025904 56.10
57 PINION RING 6H448402 2.20
58 PINION BALL BEARING 6G538003 15.40
59 PINION BEARING COLLAR 6J724601 9.90
60 CLUTCH SP PLATE 6J285901 2.20
61 RS PLATE 6M759101 162.80
62 OIL INJECTION CAP O-RING 6J279701 1.10
63 PINION SHAFT 6G931001 3.30
64 OIL INJECTION CAP W (A) 6H161001 1.10
65 OIL INJECTION CAP W (B) 6B175503 1.10
66 OIL INJECTION CAP 6M731502 8.80
67 RS PLATE SC 6G945806 2.20
68 WORM SHAFT RETAINER 63205901 2.20
69 WORM SHAFT W 6B411702 1.10
70 WORM SHAFT BALL BEARING 6G469009 15.40
71 LEVEL WINDING 6M604801 70.40
72 POLE 6J740102 3.30
73 POLE W 6M161301 1.10
74 LEVEL WINDING PIN 6J740201 3.30
75 LEVEL WINDING O-RING 6G252202 1.10
76 WORM SHIELD PLATE 6J281601 2.20
77 WORM SHIELD 6J740001 3.30
78 WORM SHAFT 6J739901 8.80
79 WORM SHAFT BALL BEARING 6G469009 15.40
80 WORM SHAFT GEAR 6J281401 4.40
81 WORM SHAFT GEAR RETAINERS 6B339801 2.20
82 GEAR SHAFT W 6G099801 1.10
83 GEAR SHAFT RETAINER 63208002 2.20
84 GEAR SHAFT BALL BEARING 6G466201 15.40
85 GEAR SHAFT PLATE (A) 6M730701 2.20
86 GEAR SHAFT PLATE (B) 6J281101 3.30
87 GEAR SHAFT PLATE SC 6G297006 2.20
88 WORM GEAR 6J281001 7.70
89 GEAR SHAFT 6J739403 27.50
90 RATCHET 6H660901 3.30
91 DRIVE GEAR W 63746605 1.10
92 PINION + DRIVE GEAR SET 6Z025904 56.10
93 DRAG W 6H359004 7.70
94 DRIVE COLLAR 6J740501 17.60
95 DRIVE COLLAR SP 6J410801 2.20
96 DRIVE COLLAR PIN 6J566201 2.20
97 DRAG COLLAR 6G011401 8.80
98 ONE-WAY CLUTCH 6J540401 20.90
99 HANDLE BALL BEARING 6G431008 15.40
100 HANDLE BEARING W 6B553801 1.10
101 DRAG HOLDER 6F028203 3.30
102 DRAG HOLDER LEAF SP 6F032401 2.20
103 DRAG SP・W 61508901 2.20
104 STAR DRAG W 6H929501 2.20
105 DRAG NUT 6J141001 7.70
106 DRAG NUT SP 6J011901 2.20
107 STAR DRAG 6M289902 41.80
108 HANDLE W (A) 6J102801 1.10
109 HANDLE W (B) 6J101301 3.30
110 HANDLE W (A) 6M759501 96.80
111 HANDLE SC 6J295501 9.90
112 HANDLE LOCK PLATE 6J319207 3.30
113 HANDLE LOCK PLATE SC 6G835502 3.30
201 SCREWDRIVER 6X390501 4.40
202 FRAME HOGO SHEET 6J374301 2.20
203 HANDLE KNOB SP-W 6H744801 1.10
204 HANDLE KNOB W 6B411703 1.10
205 HANDLE KNOB BALL BEARING 6G469007 15.40
206 HANDLE KNOB 6Q344801 17.60
207 HANDLE KNOB SC 6B679308 2.20
208 HANDLE KNOB CAP 6Q345001 2.20
