[SHIMANO] Genuine Spare Parts for 24 Force Master 2000 Product code: 044839 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

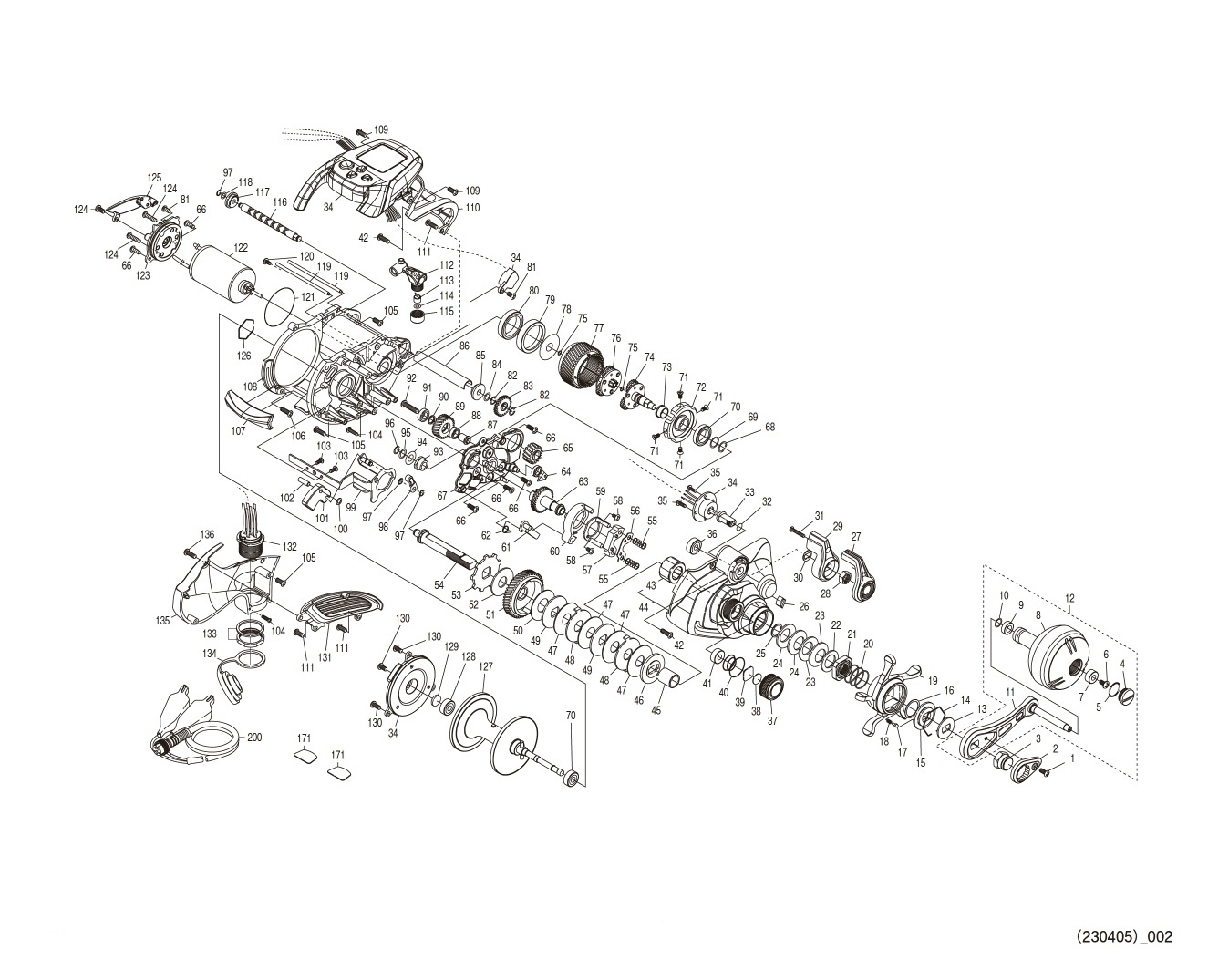

　Reel Part's Schematic Diagram

No.	S Part No.	Description	Price (USD)
1	103GK	FIXING BOLT	1.10
2	10QL6	RETAINER	3.85
3	10FT0	HANDLE FIXING NUT	6.05
4	1062R	HANDLE CAP	1.10
5	10LAB	O-RING	1.10
6	103E9	FIXING BOLT	1.10
7	10EU0	HANDLE GRIP BUSH (A)	1.65
8	13E8Y	HANDLE KNOB ASSEMBLY	45.10
9	104UJ	HANDLE GRIP BUSH (B)	1.65
10	104FH	WASHER	2.20
11	1400D	HANDLE SHAFT ASSEMBLY	56.10
12	1400E	HANDLE ASSEMBLY	112.20
13	107QM	HANDLE HOLDER WASHER	1.10
14	10KXX	STAR DRAG CLICK PLATE EXTRACTION STOP	1.65
15	10J27	STAR DRAG CLICK PLATE	1.65
16	10G6M	WASHER	1.10
17	10B27	CLICK PIN	1.65
18	10988	CLICK PIN	1.65
19	1400J	STAR DRAG	45.10
20	10HZ2	STAR DRAG SPRING	1.65
21	10QY2	STAR DRAG FIXING NUT	4.95
22	10BR2	BEARING PUSH FLY	1.65
23	10EW3	DOWEL SPRING (DB8L)	1.65
24	1052E	SALA SPRING (DB8H)	1.65
25	104L5	SPOOL SHAFT WASHER (A)	1.10
26	10RNS	THREAD STOPPER	2.75
27	1062Z	LEVER SWITCH NAMEPLATE	6.05
28	10NAN	FIXING NUT	2.75
29	1400K	LEVER SWITCH	7.70
30	10NAQ	SMALL SIZE WASHER	1.65
31	10LSC	FIXING BOLT	1.10
32	108W6	O-RING	1.65
33	10N78	LEVER INSERT SHAFT	3.85
34	1400C	COUNTER UNIT ASSEMBLY	330.00
35	10MPW	FIXING BOLT	1.10
36	10KA8	BALL BEARING (4X10X4)	13.75
37	1400L	MECHANICAL BRAKE KNOB	16.50
38	1057Q	SPOOL SHAFT CONTACT TALLY (B)	1.10
39	1085F	MECHANICAL BRAKE WASHER	1.10
40	10BRE	MECHANICAL BRAKE SPRING	1.65
41	13Y1N	BUSH	1.10
42	10LSZ	FIXING BOLT	1.10
43	1021D	ROLLER CLUTCH	17.05
44	1400F	BODY A ASSEMBLY	60.50
45	10BN3	ROLLER CLUTCH INNER TUBE	6.05
46	10762	STAR DRAG WASHER (C)	1.65
47	1064S	STAR DRAG WASHER	6.05
48	10LBA	STAR DRAG WASHER	1.65
49	10KZV	STAR DRAG WASHER	1.65
50	10CKS	STAR DRAG WASHER	6.05
51	13B7B	DRIVE GEAR	17.05
52	13UML	STAR DRAG WASHERS	4.95
53	13UKR	STOPPER GEAR	2.75
54	13B78	DRIVE GEAR SHAFT	11.55
55	104BJ	CLUTCH YOKE SPRING	1.10
56	13T6E	CLUTCH YOKE PLATE	1.65
57	13SYZ	CLUTCH YOKE	1.65
58	10MT0	FIXING BOLT	1.10
59	13UB4	CLUTCH CAM PUSH PLATE	2.75
60	13U4L	CLUTCH CAM	1.65
61	1063K	CLUTCH CLAW	6.05
62	10N1Z	CLUTCH CLAW SPRING	1.10
63	13B6C	PINION TRANSMISSION GEAR (B)	22.55
64	10MW2	STOPPER CLAW ASSEMBLY	3.85
65	13SKJ	PINION GEAR	11.55
66	103GS	FIXING BOLT	1.10
67	13H5X	BODY A FIXING PLATE	34.10
68	105S3	C TOMEWA (NO. 5103-25)	1.10
69	13PK4	WASHER	1.10
70	10KX7	BALL BEARING (10X15X4)	13.75
71	10MGD	FIXING BOLT	1.10
72	10PYS	MOTOR HOLDER COVER LID	9.35
73	13SUU	PLATE FOR REDUCTION GEAR (B) BEARING KE	3.85
74	13H0G	REDUCTION GEAR PLATE (B) ASSEMBLY	22.55
75	13B0W	WASHER	1.10
76	13H0F	REDUCTION GEAR PLATE (A) ASSEMBLY	67.65
77	13SWS	MOTOR HOLDER COVER	28.05
78	10GA9	BEARING WASHER	1.65
79	13SWH	BEARING COLLAR	3.85
80	108PG	BALL BEARING (15 X 21 X 4)	22.55
81	10QG5	FIXING BOLT	1.10
82	105NK	E TYPE STOP RING 2.5	1.10
83	13SER	WORM SHAFT GEAR	2.75
84	10E7Q	WORM SHAFT GEAR WASHER	1.65
85	10NFK	CROSS GEAR RECEIVER (A)	1.65
86	13S2G	LEVEL WINDING PIPE	6.05
87	10QG6	PINION TRANSMISSION GEAR (A) COLLAR	2.75
88	104JY	BALL BEARING (5X8X2.5)	13.75
89	13T6F	PINION TRANSMISSION GEAR (A)	9.35
90	10QG7	PINION TRANSMISSION GEAR (A) COLLAR B	1.65
91	105BP	BALL BEARING (5X9X3)	13.75
92	103UX	FIXING BOLT	1.65
93	10BQ2	DRIVE GEAR SHAFT BUSH	1.65
94	10DN3	WASHER	6.05
95	1058E	MAIN GEAR SHAFT WASHER (A)	1.10
96	105NE	E-TYPE RETAINING RING 3	1.10
97	105NC	E-TYPE RETAINING RING 2	1.10
98	13JL3	MAGNET HOLDER ASSEMBLY	11.55
99	13H39	CLUTCH PLATE	6.05
100	13B0X	CLUTCH WASHER	1.10
101	13B59	CLUTCH LEVER (B)	6.05
102	10B0Q	CLUTCH LEVER (B) SHAFT	1.65
103	103C0	FIXING BOLT	1.10
104	10LPT	FIXING BOLT	1.10
105	10LT0	FIXING BOLT	1.10
106	10LST	FIXING BOLT	1.10
107	13Y1R	CLUTCH LEVER	7.15
108	1400G	FRAME ASSEMBLY	56.10
109	103DC	FIXING BOLT	1.10
110	1400M	LEVEL WIND GUARD	20.35
111	10LSS	FIXING BOLT	1.10
112	13XZQ	LEVEL-WIND ASSEMBLY	16.50
113	10FFX	CROSS GEAR PIN	2.75
114	10RR9	WASHER	2.75
115	10FJW	LEVEL WINDING RECEIVER	1.65
116	13Y1M	WORM SHAFT	6.60
117	104SZ	CROSS GEAR UKE B	1.65
118	10G8K	WASHER	1.10
119	13S3Z	LEVEL WINDING ROD	2.75
120	10MT3	FIXING BOLT	1.10
121	13JZR	MOTOR O-RING	2.75
122	1400B	MOTOR ASSEMBLY	67.10
123	13GZX	MOTOR HOLDER ASSEMBLY	45.10
124	10LSQ	FIXING BOLT	1.10
125	1400N	MOTOR HOLDER (B)	19.80
126	13RBP	BEARING STOPPER	1.65
127	1400H	SPOOL ASSEMBLY	55.00
128	10KAE	BALL BEARING (4X11X4)	13.75
129	1057S	SPOOL SHAFT CONTACT (B)	1.10
130	10PMK	FIXING BOLT	1.10
131	1400P	BODY B2	18.15
132	100XP	CONNECTOR	22.55
133	10BGS	SOCKET NUT SET	6.05
134	10T2G	SOCKET CAP	3.85
135	1400Q	BODY B	23.10
136	103KL	FIXING BOLT	1.10
171	10CYP	LEG ADJUSTMENT SHEET	1.65
200	10004	CABLE	45.10
LINE	10CW0	LINE THREADING	1.65
