[DAIWA] Genuine Spare Parts for 21 SALTIGA IC 300H-SJ Product code: 00631506 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 21 SALTIGA IC 300H-SJ Product code: 00631506 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

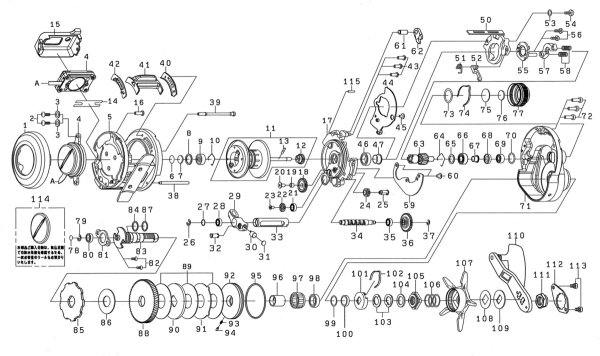

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS PLATE 6M046901 96.80
2 IC MODULE SC 6H666003 2.20
3 IC MODULE SC・W 6B536104 1.10
4 IC MODULE 6M011602 139.70
5 FRAME 6M043301 158.40
6 LS BEARING W (A) 63757404 1.10
7 LS BEARING W (B) 63757411 1.10
8 LS BEARING W (C) 6G185101 1.10
9 LS BALL BEARING 6G511506 15.40
10 LS BEARING RING 6F032201 2.20
11 SPOOL (11-13) 6M046401 79.20
12 SPOOL GEAR 6M026001 2.20
13 SPOOL PIN 6J252301 2.20
14 IC MODULE HOLD SEALS 6J911901 2.20
15 FINGER COVER 6M046801 70.40
16 LS PLATE SC 6J632304 2.20
17 SET PLATE 6M043601 36.30
18 SET PLATE GEAR (A) 6M023701 2.20
19 SET PLATE GEAR (A) COLLAR 6M023601 2.20
20 SET PLATE GEAR (A) SC 6H472205 2.20
21 SET PLATE GEAR (B) BEARING 6G469009 15.40
22 SET PLATE GEAR (B) 6M023801 2.20
23 SET PLATE GEAR (B) SC 6H842806 2.20
24 SET PLATE GEAR (C) 6M023901 2.20
25 SET PLATE GEAR (C) SC *Not available 6M024001 2.20
26 WORM SHAFT RETAINER 63205901 2.20
27 WORM SHAFT BEARING W 6B411702 1.10
28 WORM SHAFT BALL BEARING 6G469009 15.40
29 LEVEL WINDING 6M044901 58.30
30 POLE 6H168601 15.40
31 POLE W 6G099801 1.10
32 LEVEL WINDING POST COLLAR 6H168701 2.20
33 WORM SHIELD 6M023301 17.60
34 WORM SHAFT 6M044501 12.10
35 WORM SHAFT BALL BEARING 6G469009 15.40
36 WORM SHAFT GEAR 6M023501 2.20
37 WORM SHAFT GEAR RETAINERS 6B339801 2.20
38 POST 6M076201 3.30
39 FRAME SC 6M026201 6.60
40 CLUTCH LEVER PLATE (R) 6M044601 2.20
41 CLUTCH LEVER 6M044801 7.70
42 CLUTCH LEVER PLATE (L) 6M044701 2.20
43 SET PLATE SC 6G040834 2.20
44 CLUTCH CAM PLATE 6M043701 2.20
45 CLUTCH CAM PLATE SC 6H531508 2.20
46 CLUTCH CAM BALL BEARING 6G431008 15.40
47 CLUTCH CAM BEARING COLLAR 6M518401 7.70
50 CLUTCH CAM 6M043801 6.60
51 KICK LEVER SP 6J933601 2.20
52 KICK LEVER 6J933201 6.60
53 CLUTCH CAM W 6H159201 1.10
54 CLUTCH CAM SC 63522501 2.20
55 KICK LEVER PLATE (B) 6M044101 3.30
56 KICK LEVER PLATE (B) SC 6B032904 2.20
57 CLUTCH PLATE 6M105701 3.30
58 CLUTCH PLATE SP 6J142501 2.20
59 CLUTCH PLATE 6M045401 8.80
60 COVER PLATE SC 6G557113 2.20
61 STOPPER PIN 6J946701 2.20
62 STOPPER 6H270401 8.80
63 PINION + DRIVE GEAR SET 6Z025784 82.50
64 PINION RING 6H160801 2.20
65 PINION BEARING W 6E700401 1.10
66 PINION BALL BEARING (A) *Cannot be ordered 6J184402 45.10
67 PINION BEARING COLLAR (A) *Cannot be ordered 6J953001 7.70
68 PINION BEARING COLLAR (B) 6M043201 3.30
69 PINION BALL BEARING (B) 6G431104 15.40
70 PINION BEARING O-RING *Not available 6F714803 1.10
71 RS PLATE *Not available 6M043001 181.50
72 RS PLATE SC 6G945821 2.20
73 MECHANICAL BRAKE O-RING 6H157002 1.10
74 MECHANICAL BRAKE SP 6H160901 2.20
75 MECHANICAL BRAKE W (A) 6J692001 1.10
76 MECHANICAL BRAKE W (B) 6B175503 1.10
77 MECHANICAL BRAKE KNOB 6M022401 22.00
78 GEAR SHAFT W 6G099801 1.10
79 GEAR SHAFT RETAINER 63208002 2.20
80 GEAR SHAFT BALL BEARING 6G538007 15.40
81 GEAR SHAFT PLATE 6M044301 3.30
82 GEAR SHAFT PLATE SC 6E134514 2.20
83 GEAR SHAFTS 6M044201 22.00
84 GEAR SHAFT O-RING (A) 6H156901 1.10
85 RATCHET 6M045501 3.30
86 DRIVE GEAR W 6M085901 2.20
87 GEAR SHAFT O-RING (B) 6F657801 1.10
88 PINION + DRIVE GEAR SET 6Z025784 82.50
89 DRAG W 6H470801 9.90
90 DRAG DISK W *Discontinued 6H470903 2.20
91 DRAG LIP W 6M046101 3.30
92 DRIVE COLLAR 6M046301 17.60
93 DRIVE COLLAR SP 6M025201 2.20
94 DRIVE COLLAR PIN 6J566201 2.20
95 DRIVE COLLAR O-RING 6H452801 1.10
96 CLUTCH RING 6J327701 8.80
97 ONE-WAY CLUTCH 6G819801 20.90
98 HANDLE BALL BEARING 6G431008 15.40
99 HANDLE BEARING W 6B553801 1.10
100 HANDLE BEARING COLLAR 6J640601 2.20
101 DRAG HOLDER 6E709201 3.30
102 DRAG HOLDER LEAF SP 6E715601 2.20
103 DRAG SP・W 61508901 2.20
104 STAR DRAG W 6H929501 2.20
105 STAR DRAG NUT 6J935103 7.70
106 STARDRAG SP 6J011901 2.20
107 STAR DRAG 6E721105 31.90
108 HANDLE W (A) 6J102801 1.10
109 HANDLE W (B) 6J101301 3.30
110 HANDLE W (A) 6M047001 145.20
111 HANDLE NUT 6J090311 4.40
112 HANDLE LOCK PLATE 6M096502 4.40
113 HANDLE LOCK PLATE SC 6J632306 2.20
114 BATTERY CAP (WITH O-RING) *Cannot be ordered 6Y658601 22.00
115 SET PLATE PIN 6M024101 2.20
200 HANDLE KNOB W 63753005 1.10
201 HANDLE KNOB BALL BEARING 6G466201 15.40
202 HANDLE KNOB 6M047301 72.60
203 HANDLE KNOB SC 6E454003 2.20
204 HANDLE KNOB CAP 6M086201 9.90
205 HANDLE KNOB CAP SC 6G352301 2.20
206 STAND COVER 6H091801 6.60
300 MANUAL 6Y676901 2.20
301 MANUAL (COUNTER) 6Y676801 2.20
302 WORM SHIELD (SH) 6M474201 17.60
