[DAIWA] Genuine Spare Parts for 18 CATALINA IC 150SH Product code: 00630002 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

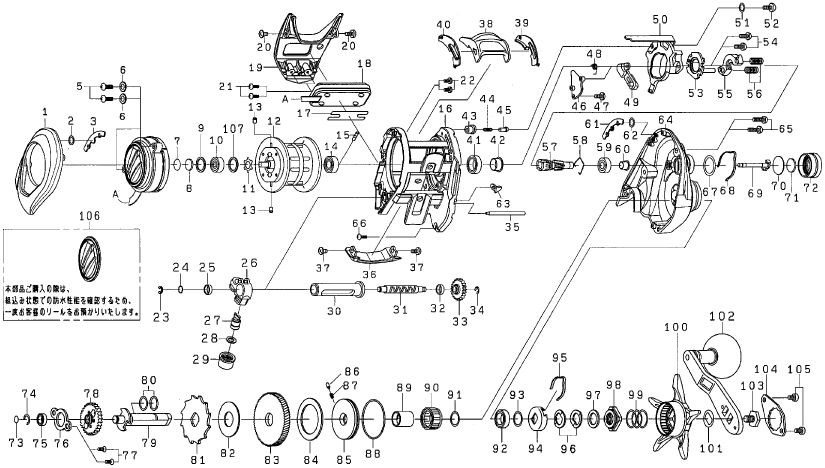

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	LS PLATE	6J711002	30.80
2	GUARD PLATE O-RING	6H770601	1.10
3	GUARD PLATE	6J619203	4.40
5	IC MODULE SC	6H666003	2.20
6	IC MODULE SC・W	6B536104	1.10
7	LS BEARING W (A)	63757404	1.10
8	LS BEARING W (B)	63757411	1.10
9	LS BEARING W (C)	63753003	1.10
10	LS BALL BEARING	6G431104	15.40
11	LS BEARING RETAINER	6H365601	2.20
12	SPOOL	6J735501	36.30
13	BRAKE COLLAR	6B352901	2.20
14	SPOOL BALL BEARING	6G498511	15.40
15	SPOOL PIN	6J252301	2.20
16	FRAME	6J735301	25.30
17	IC MODULE HOLD SEAL	6J619501	2.20
18	IC MODULE	6J735801	94.60
19	FINGER COVER	6J621803	9.90
20	FINGER COVER SC (A)	6H842806	2.20
21	FINGER COVER SC (B)	6H881502	2.20
22	LS PLATE SC	6H005701	2.20
23	WORM SHAFT RETAINER	63205901	2.20
24	WORM SHAFT BEARING W	6B411703	1.10
25	WORM SHAFT BALL BEARING	6G469002	8.80
26	LEVEL WINDING	6J620201	9.90
27	POLE	61214212	3.30
28	POLE W	63731303	1.10
29	POLE HOLDER NUT	6F402801	2.20
30	WORM SHIELD	6J620601	3.30
31	WORM SHAFT	6J243602	7.70
32	WORM SHAFT BALL BEARING	6G469002	8.80
33	WORM SHAFT GEAR	6J281401	4.40
34	WORM SHAFT GEAR RETAINERS	6B339801	2.20
35	OSCILLATING POST	6J620401	2.20
36	FRONT COVER	6J621903	8.80
37	FRONT COVER SC	6H842806	2.20
38	CLUTCH LEVER	6J619901	6.60
39	CLUTCH LEVER PLATE (R)	6J619601	2.20
40	CLUTCH LEVER PLATE (L)	6J619701	2.20
41	CLUTCH CAM BALL BEARING	6G431008	15.40
42	PINION COLLAR	6M518401	7.70
43	CLUTCH CAM PLATE PIN SP COLLAR	6H910601	2.20
44	CLUTCH CAM PLATE PIN SP	6H928801	2.20
45	CLUTCH CAM PLATE PIN	6J055201	2.20
46	KICK LEVER PLATE (A)	6J280501	3.30
47	KICK LEVER PLATE (A) SC	6H531508	2.20
48	KICK LEVER SP	6J407701	2.20
49	KICK LEVER	6J622901	6.60
50	CLUTCH CAM PLATE	6J619801	4.40
51	CLUTCH CAM PLATE W	6H159201	1.10
52	CLUTCH CAM PLATE SC	63522501	2.20
53	KICK LEVER PLATE (B)	6H659101	3.30
54	KICK LEVER PLATE (B) SC	6B032904	2.20
55	CLUTCH PLATE	6H929001	3.30
56	CLUTCH PLATE SP	6J313901	2.20
57	PINION + DRIVE GEAR SET	6Z024161	53.90
58	PINION BEARING RING	6H448401	2.20
59	PINION BALL BEARING	6G538003	15.40
60	PINION BEARING COLLAR *Cannot be ordered	6J724501	7.70
61	GUARD PLATE	6J619203	4.40
62	GUARD PLATE O-RING	6H770601	1.10
63	LINE STOPPER	6E169502	2.20
64	RS PLATE	6J735201	39.60
65	RS PLATE SC (A)	6J635701	2.20
66	RS PLATE SC (B)	6H662203	2.20
67	MECHANICAL BRAKE KNOB O-RING	6H157002	1.10
68	MECHANICAL BRAKE KNOB SP	6H160901	2.20
69	PINION SHAFT	6J198801	3.30
70	MECHANICAL BRAKE W (A)	6H161001	1.10
71	MECHANICAL BRAKE W (B)	6B175503	1.10
72	MECHANICAL BRAKE KNOB	6J623002	29.70
73	GEAR SHAFT W	6G099801	1.10
74	GEAR SHAFT RETAINER	63208002	2.20
75	GEAR SHAFT BALL BEARING	6G466202	8.80
76	GEAR SHAFT PLATE	6J281101	3.30
77	GEAR SHAFT PLATE SC	6E134509	2.20
78	WORM GEARS	6J281001	7.70
79	GEAR SHAFTS	6J735401	17.60
80	GEAR SHAFT O-RINGS	6F657801	1.10
81	RATCHET	6H660901	3.30
82	DRIVE GEAR W	6J085101	1.10
83	PINION + DRIVE GEAR SET	6Z024161	53.90
84	DRAG W	6H359001	8.80
85	DRIVE COLLAR	6J443001	17.60
86	DRIVE COLLAR PIN	6J566201	2.20
87	DRIVE COLLAR SP	6J410801	2.20
88	DRIVE COLLAR O-RING	6J458101	1.10
89	CLUTCH RING	6J327701	8.80
90	ONE-WAY CLUTCH	6G819801	20.90
91	CLUTCH RING W	6B553801	1.10
92	HANDLE BALL BEARING	6B861705	8.80
93	HANDLE BALL BEARING W	6B553801	1.10
94	DRAG HOLDER	6F028203	3.30
95	DRAG HOLDER LEAF SP	6F032401	2.20
96	DRAG SP・W	61508901	2.20
97	DRAG NUT W	6H929501	2.20
98	DRAG NUT	6J141001	7.70
99	DRAG NUT SP	6J011901	2.20
100	STAR DRAG	6J140002	24.20
101	HANDLE W	6F576601	1.10
102	HANDLE W	6J735901	94.60
103	HANDLE NUT	6H166801	15.40
104	HANDLE LOCK PLATE	6H226707	4.40
105	HANDLE LOCK PLATE SC	6H257001	2.20
106	BATTERY CAP (WITH O-RING) *Cannot be ordered	6J737601	11.00
107	LS BEARING W (D)	6J844401	1.10
200	HANDLE KNOB W	6B411703	1.10
201	HANDLE KNOB COLLAR	6G720001	2.20
202	HANDLE KNOB W (D)	6H089102	29.70
203	HANDLE KNOB SC	6B679308	2.20
204	HANDLE KNOB CAP	6H888501	18.70
205	HANDLE KNOB CAP O-RING	6H100001	1.10
300	MANUALS	6Y632501	2.20
