[DAIWA] Genuine Spare Parts for 13 T3 MX 1016H-TW Product code: 00613430 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

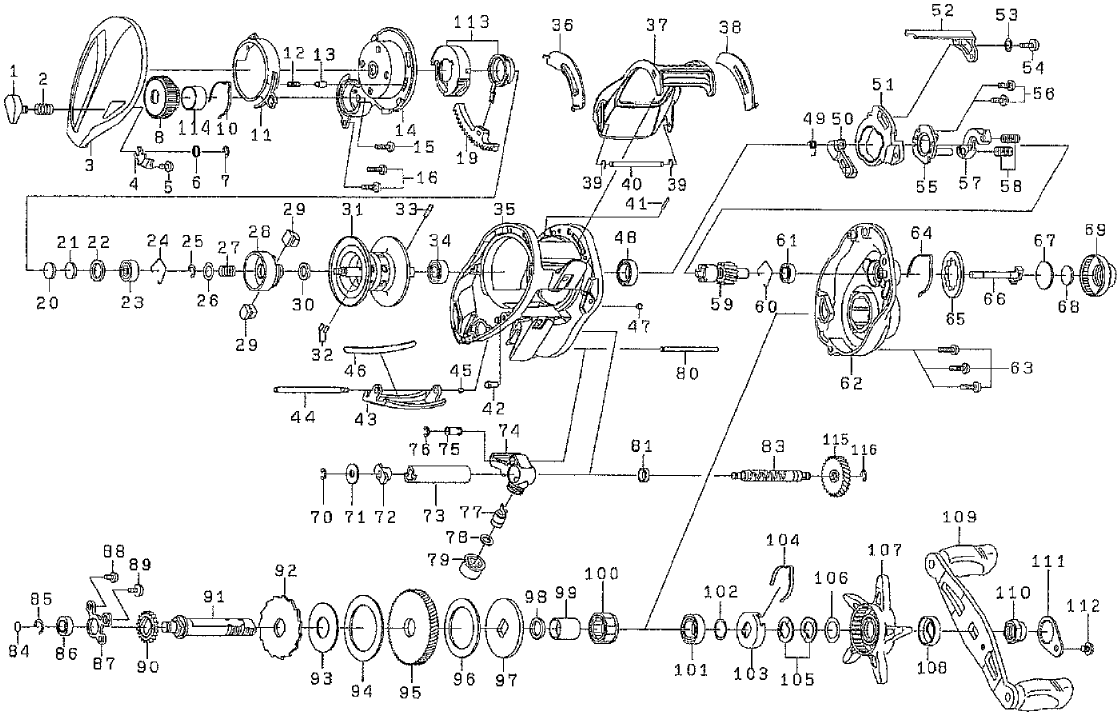

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	PUSH BUTTONS *Discontinued	6H668106	3.30
2	PUSH BUTTON SP *Discontinued	6H664001	2.20
3	LS PLATE *Discontinued	6H662609	17.60
4	PUSH BUTTON PLATE *Discontinued	6H663901	2.20
5	PUSH BUTTON PLATE SC	6H585401	2.20
6	PUSH BUTTON PLATE W	6F037402	1.10
7	PUSH BUTTON PLATE RITNER	6B864101	2.20
8	BRAKE DIAL	6H808003	9.90
10	BRAKE DIAL LEAF SP	6H663401	2.20
11	BRAKE DIAL LEVER *Discontinued	6H897502	9.90
12	BRAKE DIAL LEVER SP *Discontinued	6H775901	2.20
13	BRAKE DIAL LEVER PIN	6H285601	2.20
14	SET PLATE *Discontinued	6H663101	12.10
15	SET PLATE SC (A)	6H463401	2.20
16	SET PLATE SC (B)	6H666002	2.20
19	MAG HOLDER GEAR *Discontinued	6H808301	8.80
20	LS BEARING W (A)	63757404	1.10
21	LS BEARING W (B)	63757411	1.10
22	LS BEARING W (C)	6G185101	1.10
23	LS BALL BEARING	6G511507	15.40
24	LS BEARING RING *Discontinued	6H786801	2.20
25	SPOOL HOLDER SP RETAINER *Not available	63208202	2.20
26	SPOOL HOLDER SP-W	6G150301	1.10
27	SPOOL HOLDER SP	6H537301	2.20
28	SPOOL HOLDER	6H693202	22.00
29	SPOOL HOLDER COLLAR	6H454901	2.20
30	SPOOL HOLDER W	6F574303	1.10
31	SPOOL (25-34) *Discontinued	6Z021289	80.30
32	SPOOL HOLDER PIN	6H665301	2.20
33	SPOOL PIN	6H358801	2.20
34	SPOOL BALL BEARING	6G498508	15.40
35	FRAME *Discontinued	6H889202	34.10
36	CLUTCH LEVER PLATE (L) *Discontinued	6H659301	4.40
37	CLUTCH LEVER *Discontinued	6H659409	20.90
38	CLUTCH LEVER PLATE (R) *Discontinued	6H659201	4.40
39	CLUTCH LEVER SHAFT RETAINER	6H704101	2.20
40	CLUTCH LEVER SHAFT *Discontinued	6H659802	7.70
41	CLUTCH LEVER HOLD PIN	6H753001	2.20
42	PUSH BUTTON PLATE PIN *Discontinued	6H791001	3.30
43	FRONT COVER *Discontinued	6H662405	11.00
44	FRONT COVER SC *Discontinued	6H762401	3.30
45	FRONT COVER SC NUT *Discontinued	6H762301	2.20
46	NAME PLATE *Discontinued	6H820301	4.40
47	KICK LEVER SP COLLAR *Discontinued	6H658801	2.20
48	CLUTCH CAM BALL BEARING	6G431003	15.40
49	KICK LEVER SP *Discontinued	6H659001	2.20
50	KICK LEVER *Discontinued	6H580701	9.90
51	CLUTCH CAM *Discontinued	6H687301	3.30
52	CLUTCH CAM PLATE (A) *Discontinued	6H666201	3.30
53	CLUTCH CAM PLATE (A) W	6H159201	1.10
54	CLUTCH CAM PLATE (A) SC	6G193701	2.20
55	CLUTCH CAM PLATE (B)	6H659101	3.30
56	CLUTCH CAM PLATE (B) SC	6H581001	2.20
57	CLUTCH PLATE *Discontinued	6H687401	6.60
58	CLUTCH SP	6H798701	2.20
59	PINION + DRIVE GEAR SET *Discontinued	6Z020637	40.70
60	RS BEARING RING	6E219701	2.20
61	RS BALL BEARING	6G466205	15.40
62	RS PLATE *Discontinued	6H666517	24.20
63	RS PLATE SC *Discontinued	6H662201	2.20
64	MECHANICAL BRAKE SP	6F262701	2.20
65	MECHANICAL BRAKE W (A)	6F625503	1.10
66	PINION SHAFT	6H159601	3.30
67	MECHANICAL BRAKE W (B)	6H449401	1.10
68	MECHANICAL BRAKE W (C)	6B175503	1.10
69	MECHANICAL BRAKE KNOB *Discontinued	6H658305	15.40
70	WORM SHAFT RETAINER	63205901	2.20
71	WORM SHAFT W	63731306	1.10
72	WORM SHAFT BUSHING *Discontinued	6F795802	2.20
73	WORM SHIELD	6H660301	8.80
74	LEVEL WINDING	6H660202	51.70
75	OSCILLATING POST COLLAR	6H168701	2.20
76	OSCILLATING POST RETAINER	6B864101	2.20
77	POLE	6H660801	4.40
78	POLE W	63731303	1.10
79	POLE HOLDER NUT	6F402801	2.20
80	OSCILLATING POST *Discontinued	6H660401	3.30
81	WORM SHAFT COLLAR	6F648301	4.40
83	WORM SHAFT *Discontinued	6H824201	17.60
84	GEAR SHAFT W	6G099801	1.10
85	GEAR SHAFT RETAINER	63208002	2.20
86	GEAR SHAFT BALL BEARING	6G538004	8.80
87	GEAR SHAFT PLATE *Discontinued	6H660101	2.20
88	GEAR SHAFT PLATE SC (A)	6G171402	2.20
89	GEAR SHAFT PLATE SC (B)	6G193701	2.20
90	WORM DRIVE GEAR *Discontinued	6H660001	8.80
91	GEAR SHAFT *Discontinued	6H659901	26.40
92	RATCHET W	6H660901	3.30
93	RATCHET W	6H661101	1.10
94	DRIVE GEAR W	6H661001	3.30
95	PINION + DRIVE GEAR SET *Discontinued	6Z020637	40.70
96	DRAG W	6H359001	8.80
97	DRAG DISK W	6H661401	3.30
98	CLUTCH RING W	6B553803	1.10
99	CLUTCH RING	6H584401	5.50
100	ONE-WAY CLUTCH	6G819801	20.90
101	HANDLE BALL BEARING	6G523401	8.80
102	HANDLE BEARING W	63737813	1.10
103	DRAG HOLDER	6F028203	3.30
104	DRAG LEAF SP	6F032401	2.20
105	DRAG SP・W	61508901	2.20
106	STAR DRAG W	6G694201	2.20
107	STAR DRAG *Discontinued	6H885801	22.00
108	HANDLE COLOR	6H661701	2.20
109	HANDLE (80MM) *Discontinued	6H885401	86.90
110	HANDLE NUT	6G793314	4.40
111	HANDLE LOCK PLATE	60403208	3.30
112	HANDLE LOCK PLATE SC	63538301	2.20
113	MAG HOLDER SET *Cannot be ordered	6Z020866	46.20
114	BRAKE DIAL COLLAR *Discontinued	6H808601	3.30
115	WORM SHAFT GEAR *Discontinued	6H824301	4.40
116	WORM SHAFT GEAR RETAINER	6B339801	2.20
200	HANDLE KNOB W	6B411701	1.10
201	HANDLE KNOB	6F976401	11.00
202	HANDLE KNOB COLOR (4 7 2.5)	6G720001	2.20
203	HANDLE KNOB SC	6B679308	2.20
204	HANDLE KNOB CAP	6F578803	2.20
250	FITTING PAD *Discontinued	6H786601	2.20
300	NAME PLATE (FRAME)/GOLD *Discontinued	6H814606	7.70
301	FRONT COVER SC (SH) *Discontinued	6H955902	3.30
302	FRONT COVER SC RETAINER (SH)	6B864101	2.20
