  4. > [DAIWA] Genuine Spare Parts for 22 Silver Creek AIR TW STREAM CUSTOM 8.5L Product code: 00630253 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 22 Silver Creek AIR TW STREAM CUSTOM 8.5L Product code: 00630253 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 22 Silver Creek AIR TW STREAM CUSTOM 8.5L Product code: 00630253 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.22 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/5359

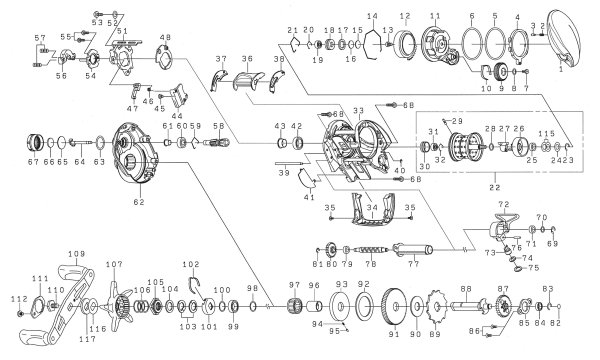

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 RS PLATE 6M274901 22.00
2 LEVER PLATE SP 6J631901 2.20
3 LEVER PLATE PIN 6J286301 2.20
4 LEVER PLATE (A) 6J957101 2.20
5 LEVER PLATE (B) 6J957201 2.20
6 LEVER PLATE (C) 6J957303 2.20
7 BRAKE DIAL SC 6G940402 2.20
8 BRAKE DIAL W 6H159202 1.10
9 BRAKE DIAL 6J741806 7.70
10 BRAKE DIAL LEAF SP 6H663401 2.20
11 SET PLATE 6M007702 24.20
12 MAG HOLDER 6J957401 17.60
13 SET PLATE SC 6H666002 2.20
14 MAG HOLDER RING 6J957601 2.20
15 RS BEARING W (A) 63757404 1.10
16 RS BEARING W (B) 63757411 1.10
17 RS BEARING W (C) 6F574303 1.10
18 RS BEARING COLLAR 6J383801 2.20
19 RS BALL BEARING 6G281602 15.40
20 RS BEARING RING 6G639601 2.20
21 RS BEARING COLLAR RING 6E219701 2.20
22 SPOOLS (21-28, 110-111) 6Z026820 157.30
23 SPOOL HOLDER SP RETAINER 63208002 2.20
24 SPOOL HOLDER SP-W (A) 6J497001 1.10
25 SPOOL HOLDER COLLAR (B) 6J761201 2.20
26 SPOOL HOLDER 6H814203 20.90
27 SPOOL HOLDER COLLAR (A) 6J190301 2.20
28 SPOOL HOLDER W 6E096505 1.10
29 SPOOL PIN 6J252301 2.20
30 SPOOL BEARING COLLAR 6H813601 4.40
31 SPOOL BALL BEARING 6G281602 15.40
32 SPOOL BEARING RING 6G639601 2.20
33 FRAME 6M274801 74.80
34 FRONT COVER 6J956607 12.10
35 FRONT COVER SC 6H531508 2.20
36 CLUTCH LEVER 6J956101 9.90
37 CLUTCH LEVER PLATE (L) 6J955601 2.20
38 CLUTCH LEVER PLATE (R) 6J955501 2.20
39 OSCILLATING POST 6M134001 2.20
40 OSCILLATING POST RETAINER 6H704101 2.20
41 RS COVER PLATE 6J955701 2.20
42 CLUTCH CAM BALL BEARING 6G431004 8.80
43 CLUTCH CAM BALL BEARING COLLAR 6M518401 7.70
44 KICK LEVER PLATE (A) 6J765701 3.30
45 KICK LEVER PLATE (A) SC 6H531508 2.20
46 KICK LEVER PLATE SP 6M042701 2.20
47 KICK LEVER 6J638601 6.60
48 CLUTCH CAM PLATE 6J765601 2.20
51 CLUTCH CAM 6J955801 9.90
52 CLUTCH CAM PLATE W 6M070001 1.10
53 CLUTCH CAM PLATE SC 6B360406 2.20
54 KICK LEVER PLATE (B) 6H659101 3.30
55 KICK LEVER PLATE (B) SC 6B032904 2.20
56 CLUTCH PLATE *Not available 6H944501 2.20
57 CLUTCH SP 6J313901 2.20
58 PINION + DRIVE GEAR SET 6Z025927 56.10
59 PINION RING 6H448401 2.20
60 PINION BALL BEARING 6G538007 15.40
61 PINION BEARING COLLAR 6J724601 9.90
62 LS PLATE 6M274701 67.10
63 MECHANICAL BRAKE O-RING 6J279701 1.10
64 PINION SHAFT 6G931001 3.30
65 MECHANICAL BRAKE W (A) 6H161001 1.10
66 MECHANICAL BRAKE W (B) 6B175503 1.10
67 MECHANICAL BRAKE KNOB 6J279606 19.80
68 LS PLATE SC 6G945818 2.20
69 WORM SHAFT RETAINER 63205901 2.20
70 WORM SHAFT W 6B411702 1.10
71 WORM SHAFT COLLAR 6G720001 2.20
72 LEVEL WINDING 6M148602 58.30
73 POLE 6J740101 3.30
74 POLE W 6G099801 1.10
75 LEVEL WINDING O-RING 6G252202 1.10
76 LEVEL WINDING PIN 6J740201 3.30
77 WORM SHIELD 6J765801 3.30
78 WORM SHAFT 6M042401 8.80
79 WORM SHAFT COLLAR 6G720001 2.20
80 WORM SHAFT GEAR 6J693901 3.30
81 WORM SHAFT GEAR RETAINER 6B339801 2.20
82 GEAR SHAFT W 6G099801 1.10
83 GEAR SHAFT RETAINER 63208002 2.20
84 GEAR SHAFT BALL BEARING 6G466202 8.80
85 GEAR SHAFT PLATE 6J693701 3.30
86 GEAR SHAFT PLATE SC 6G297002 2.20
87 WORM GEARS 6J693601 4.40
88 GEAR SHAFTS 6M007603 17.60
89 RATCHET 6H660901 3.30
90 DRIVE GEAR W 63746605 1.10
91 PINION + DRIVE GEAR SET 6Z025927 56.10
92 DRAG W 6H359002 6.60
93 DRIVE COLLAR 6J740501 17.60
94 DRIVE COLLAR SP 6M025201 2.20
95 DRIVE COLLAR PIN 6J566201 2.20
96 DRAG COLLAR 6J327701 8.80
97 ONE-WAY CLUTCH 6J540401 20.90
98 HANDLE BEARING W (A) 6B553803 1.10
99 HANDLE BALL BEARING 6G431004 8.80
100 HANDLE BEARING W (B) 6B553801 1.10
101 DRAG HOLDER 6F028203 3.30
102 DRAG HOLDER LEAF SP 6F032401 2.20
103 DRAG SP・W 61508901 2.20
104 STAR DRAG W 6H929501 2.20
105 DRAG NUT 6J141002 7.70
106 DRAG NUT SP 6J011901 2.20
107 STAR DRAG 6J673906 30.80
109 HANDLES 6M274401 93.50
110 HANDLE SC 6J295501 9.90
111 HANDLE LOCK PLATE 60403222 3.30
112 HANDLE LOCK PLATE SC 6G835502 3.30
115 SPOOL HOLDER SP・W(B) 63753005 1.10
116 HANDLE W (A) 6J102801 1.10
117 HANDLE W (B) 6J101301 3.30
200 HANDLE KNOB W 6H744801 1.10
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB COLOR 6G720001 2.20
203 HANDLE KNOB SC 6G556401 20.90
204 HANDLE KNOB SC 6B679308 2.20
205 HANDLE KNOB CAP 6F578803 2.20
