[DAIWA] Genuine Spare Parts for 23 EMERALDAS RX FC LT2500S Product code: 00061201 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 23 EMERALDAS RX FC LT2500S Product code: 00061201 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship this item after you order unless we have in stock at the time of your order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/6038

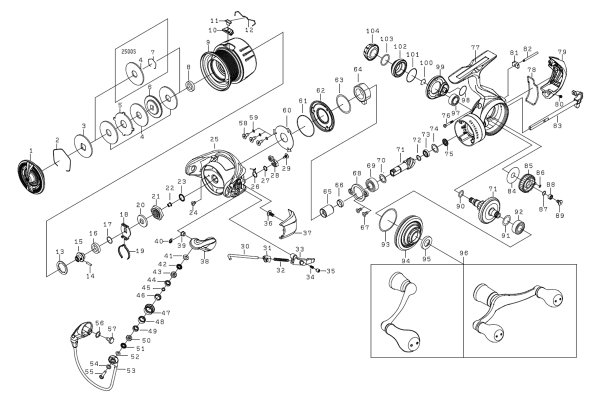

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 6Q734901 16.50
2 DRAG RINGS 6Q346101 2.20
3 DRAG DISC W 6Q621901 2.20
4 DRAG W (1 piece) 6M358901 6.60
7 SPOOL COLLAR RING 6B358701 2.20
8 SPOOL COLLAR 6Q621001 2.20
9 SPOOL (2-12) 6Q928001 107.80
10 LINE STOPPER PLATE 6Q345601 2.20
11 LINE STOPPER 6Q345501 2.20
12 LINE STOPPER SP 6Q345701 2.20
13 SPOOL W 6J546301 1.10
14 SPOOL METAL SC 6J558201 2.20
15 SPOOL METAL 6J549501 9.90
16 SPOOL METAL COLLAR 6H624801 2.20
17 SPOOL METAL W 6J602201 1.10
18 CLICK HOLDER 6Q798201 2.20
19 CLICK LEAF SP 6Q797701 2.20
20 ROTOR NUT PACKING 6H986901 3.30
21 ROTOR - NUT 6Q748401 3.30
22 ROTOR NUT COLLAR 6Q858101 3.30
23 ROTOR NUT W 63727602 1.10
24 ROTOR-NUT SC 6H022701 2.20
25 ROTOR *Cannot be ordered 6Q808207 27.50
26 KICK LEVER SP 6Q810801 2.20
27 KICK LEVER W 6M194601 1.10
28 KICK LEVER 6Q808301 2.20
29 KICK LEVER SC 6Q957301 2.20
30 ARM LEVER SHAFT 6Q810901 2.20
31 ARM LEVER SHAFT COLLAR 6Q808501 3.30
32 ARM LEVER SP 6Q811701 2.20
33 ARM LEVER SHAFT HOLDER 6Q808601 2.20
34 ARM LEVER SHAFT HOLDER SP 6Q812001 2.20
35 ARM LEVER SHAFT HOLDER PIN 6Q808701 2.20
36 ARM LEVER COVER SC 6Q812201 2.20
37 ARM LEVER COVER 6Q809201 3.30
38 ARM LEVER 6Q880602 15.40
39 ARM LEVER COLLAR 6Q809101 2.20
40 ARM LEVER RETAINER 6B339801 2.20
41 ROLLER COLLAR (A) 6F889105 1.10
42 ROLLER PACKING 6J736201 1.10
43 ROLLER COLLAR (B) 6Q896601 2.20
44 ROLLER BALL BEARING 6J256702 15.40
45 ROLLER COLLAR (C) 6Q896701 2.20
46 ROLLER COLLAR (D) 6Q896901 3.30
47 LINE ROLLER 6Q881101 8.80
48 ROLLER COLLAR (E) 6Q896801 3.30
49 ROLLER BALL BEARING 6J256702 15.40
50 ROLLER COLLAR (F) 6Q896601 2.20
51 ROLLER COLLAR (F) PACKING 6J736201 1.10
52 ROLLER W 63754101 1.10
53 BAIL 6Q880701 48.40
54 ARM LEVER SC/W 63754105 1.10
55 ARM LEVER SC 6M475401 2.20
56 BAIL HOLDER SC/W 6Q416203 1.10
57 BAIL HOLDER SC 6Q812301 2.20
58 MAGSHIELD PLATE SC 6H624901 2.20
59 MAGSHIELD PLATE SC/W 63754102 1.10
60 MAG SHIELD PLATE *Cannot be ordered 6J675201 23.10
61 MAGSHIELD O-RING 6J354801 1.10
62 MAG SHIELD CAP *Cannot be ordered 6Q609601 3.30
63 ONE-WAY CLUTCH W 6J639902 1.10
64 ONE-WAY CLUTCH *Cannot be ordered 6J388401 26.40
65 CLUTCH RING *Cannot be ordered 6J536102 7.70
66 CLUTCH RING COLLAR 6Q609001 2.20
67 PINION BEARING PLATE SC 6Q195701 2.20
68 PINION BEARING PLATE 6Q621201 3.30
69 PINION BALL BEARING (A) 6G467302 8.80
70 PINION BALL BEARING (A) W 63758502 1.10
71 PINION + DRIVE GEAR SET *Cannot be ordered 6Z700650 46.20
72 PINION BALL BEARING (B)W 6H931701 1.10
73 PINION BALL BEARING (B) 6H959601 8.80
74 PINION COLLAR W 6G466103 1.10
75 PINION COLLAR 6J387701 3.30
76 REAR CAP SC (A) 6Q621301 2.20
77 BODY *Cannot be ordered 6Q927701 39.60
78 REAR CAP PACKING 6Q643901 3.30
79 REAR CAP 6Q644001 4.40
80 REAR CAP SC (B) 6Q621101 2.20
81 OSCILLATING POST COLLAR 6Q609201 2.20
82 OSCILLATING POST 6Q609302 2.20
83 MAIN SHAFT 6Q957701 34.10
84 OSCILLATING GEAR W 6H607901 1.10
85 OSCILLATING GEAR *Cannot be ordered 6Q643101 6.60
86 OSCILLATING GEAR O-RING 6G683301 1.10
87 OSCILLATING GEAR BEARING W 6H129201 1.10
88 OSCILLATING GEAR BALL BEARING 6G469005 8.80
89 OSCILLATING GEAR SC 6Q126101 2.20
90 DRIVE GEAR O-RING 6G670501 1.10
91 DRIVE W 63758511 1.10
92 DRIVE BALL BEARING (A) 6G522706 8.80
93 ENGINE PLATE O-RING 6J588801 1.10
94 ENGINE PLATE *Cannot be ordered 6Q643814 36.30
95 HANDLE PACKING 6J130201 2.20
96 HANDLE 6Q927501 91.30
97 DRIVE BALL BEARING (B) 6G522706 8.80
98 SET PLATE O-RING 6H816401 2.20
99 SET PLATE *Cannot be ordered 6Q642901 7.70
100 DRIVE BEARING (B) RING 6G472401 2.20
101 DRIVE BEARING (B) O-RING 6H617001 1.10
102 DRIVE BEARING (B) COVER *Cannot be ordered 6Q608908 12.10
103 HANDLE CAP O-RING 6G162401 2.20
104 HANDLE CAP 6Q345101 4.40
300 HANDLE KNOB W 6B411703 1.10
301 HANDLE KNOB COLLAR 6G720001 2.20
302 HANDLE KNOB 6J672101 19.80
303 HANDLE KNOB SC 6B679308 2.20
304 HANDLE KNOB CAP (WITH O-RING) 6Q966801 12.10
305 HANDLE KNOB CAP O-RING 6H100001 1.10
