[SHIMANO] Genuine Spare Parts for 18 CALCUTTA CONQUEST 401 LEFT Product code: 038661 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 18 CALCUTTA CONQUEST 401 LEFT Product code: 038661 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

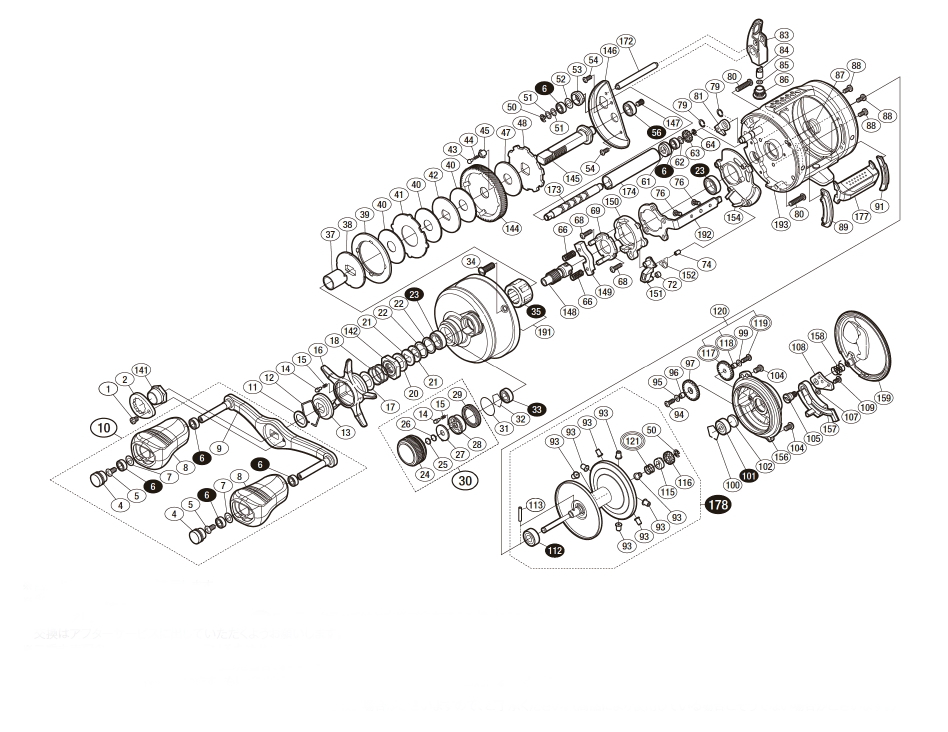

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "35 / ROLLER CLUTCH", "112 / BALL BEARING" and "113 /SPOOL CLUTCH PIN, they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
*F01 13WHQ REEL BAG (ACCESSORY) 9.35
1 10CZ5 FIXING BOLT 2.75
2 10Q66 RETAINER 3.85
4 10FMG HANDLE CAP 3.85
5 103E9 FIXING BOLT 1.10
6 104VX BALL BEARING (4×7×2.5) 13.75
7 104FH WASHER 2.20
8 10326 HANDLE KNOB 11.55
9 10A69 HANDLE KNOB 39.60
10 10TTM HANDLE ASSEMBLY 101.20
11 107QQ HANDLE HOLDER WASHER 1.65
12 10KXV STAR DRAG SOUNDING PLATE 1.65
13 10J26 STAR DRAG SOUNDING PLATE 1.65
14 10B27 CLICK PIN 1.65
15 10988 CLICK SPRING 1.65
16 10AU2 STAR DRAG 28.05
17 10HHN SLIDER WASHER (9×13×0.3) 1.65
18 10A71 STAR DRAG SPRING 2.75
20 10J1N STAR DRAG SPACER 1.65
21 1052E SALA SPRING (DB8H) 1.65
22 10GHN WASHER 1.65
23 10EX8 BALL BEARING (8×12×3.5) 13.75
24 10T06 MECHANICAL BRAKE KNOB 17.05
25 10897 SPOOL DRAG WASHER (B) 1.10
26 1085G SPOOL DRAG WASHER 1.10
27 10L2E MECHANICAL BRAKE KNOB SOUNDING PLATE 2.75
28 10BSX M BRAKE KNOB CLICK PIN HOLDER 2.75
29 10L70 SPOOL DRAG KNOB SOUND EMITTING STOPPER WHEEL 2.75
30 10TDA MECHANICAL BRAKE KNOB ASSEMBLY 28.05
31 109EB O-RING S11.2 1.65
32 1057X EXTRACTION STOPPER 1.65
33 105BR BALL BEARING (5×9×3) 13.75
34 10A6X FIXING BOLT 3.85
35 10F33 ROLLER CLUTCH *Cannot be ordered 22.55
37 10BN7 INNER TUBE A-RB 6.05
38 10D54 STAR DRAG PLATE 3.85
39 10JAZ DRAG SOUNDING SYLLATIC RATCHET 1.65
40 10CHW STAR DRAG WASHER 6.05
41 10KQL STAR DRAG WASHER 1.65
42 10LB6 STAR DRAG WASHER 1.65
43 10C0S DRAG CLICK PIN 2.75
44 10J89 DRAG CLICK SPRING 1.65
45 10J58 DRAG SPRING HOLDER 1.65
47 10CHZ STAR DRAG WASHER 2.75
48 10D71 STOPPER GEAR 3.85
50 105NK E TYPE STOPPER RING 2.5 1.10
51 10J16 WASHER 1.10
52 10G8G WORM SHAFT WASHER (A) 1.10
53 10N9Q WORM SHAFT RECEIVER (A) 1.65
54 10MPR BODY A SEAT B FIXING BOLT 1.10
56 105BP BALL BEARING (5×9×3) 13.75
61 104SP WORM SHAFT HOLDER (B) 1.65
62 10G6B WORM SHAFT GEAR 1.10
63 10FTA WORM SHAFT GEAR 2.75
64 105NC E TYPE STOP RING 2 1.10
66 10ECN CLUTCH YOKE SPRING 1.10
68 10TP0 FIXING BOLT 1.10
69 10F3Y CLUTCH CAM PUSH PLATE 3.85
72 1048C CLUTCH CLAW BUSHING 1.65
74 108S5 CLUTCH SPRING SEAT 1.65
76 103C0 FIXING BOLT 1.10
79 105S2 CLINCENT RETAINING RING 1.10
80 103M0 FIXING BOLT 1.65
81 10MW1 STOPPER CLAW ASSEMBLY 6.05
83 10NYG LEVEL WINDING ASSEMBLY 34.10
84 10FFT WORM SHAFT PIN 3.85
85 10GD0 WASHER 1.10
86 10FJC LEVEL WINDING RECEPTACLE 6.05
87 10EZE BB PUSH SPRING 1.65
88 103C2 FIXING BOLT 1.10
89 10972 CLUTCH LEVER HOLDER (B) 1.65
91 10ASN CLUTCH LEVER HOLDER (A) 1.65
93 10CPE BRAKE COLLAR (GRAY) 1.65
94 10LVM FIXING BOLT 1.10
95 10HVD WORM SHAFT GEAR (B) 1.10
96 10ECQ WORM SHAFT GEAR (B) HOLDER 2.75
97 10T04 WORM SHAFT GEAR (B) 2.75
99 10HYM WORM SHAFT GEAR (B) WASHER 1.10
100 10GEW BEARING STOPPER 1.10
101 105C1 BALL BEARING (3×10×4) 13.75
102 1057S SPOOL SHAFT CONTACT (B) 1.10
104 10LSL FIXING BOLT 1.10
105 10GM6 BODY B SHAFT 6.05
107 10280 WASHER 1.10
108 10AYX DAMPER BUSH 2.75
109 10U0S FIXING BOLT 1.10
112 105CA BALL BEARING (5 X 11 X 4) *Cannot be ordered 13.75
113 10MD1 SPOOL CLUTCH PIN *Cannot be ordered 1.10
115 10MCY SPOOL SHAFT CAM 1.65
116 10JAH WORM SHAFT GEAR 3.85
117 10TUG WORM SHAFT GEAR (D) 2.75
118 10TUH WORM SHAFT GEAR (D) RECEIVER 2.75
119 10TTU FIXING BOLT 1.10
121 10E20 SPOOL SHAFT SPRING 1.65
131 10ECR BRAKE COLLAR (CLEAR) (ACCESSORY) 1.65
141 10FNG HANDLE FIXING NUT 2.75
142 10A3W STAR DRAG FIXING NUT 3.85
144 10QRC DRIVE GEAR 28.05
145 10TUR DRIVE GEAR SHAFT 22.55
146 109SY DRIVE GEAR SHAFT FIXING PLATE 9.35
147 10PVU FIXING BOLT 1.65
148 10AAJ PINION GEAR 22.55
149 1046Y CLUTCH YOKE 1.65
150 10K0Y CLUTCH CAM 2.75
151 105ZN CLUTCH CLAW 3.85
152 104CK CLUTCH CLAW SPRING 1.65
154 10BVT BODY A SEAT 3.85
156 10S3H FRAME B RECEIVER ASSEMBLY 34.10
157 10BAT BODY B CAM LEVER 2.75
158 10KNB DAMPER SPRING 1.65
159 100SB BODY B ASSEMBLY 45.10
172 10GUH LEVEL-WIND GUIDE 3.85
173 101TD WORM SHAFT 9.35
174 10NFV LEVEL-WIND PIPE 11.55
177 10MWJ CLUTCH LEVER 9.35
178 100M5 SPOOL ASSEMBLY (WITH BEARINGS) 90.20
191 100M7 BODY A ASSEMBLY 123.75
192 10QLE CLUTCH PLATE 4.95
193 10EVP FRAME 190.30
BNKI 13WU1 EXPLODED VIEW (ACCESSORIES) 1.65
ITOS 13QPZ STOPPER SEAL 1.65
OIL1 10LQ0 B-100 OIL (4.5 G) 3.85
TRST 13VT7 INSTRUCTION MANUAL (ACCESSORY) 1.65
