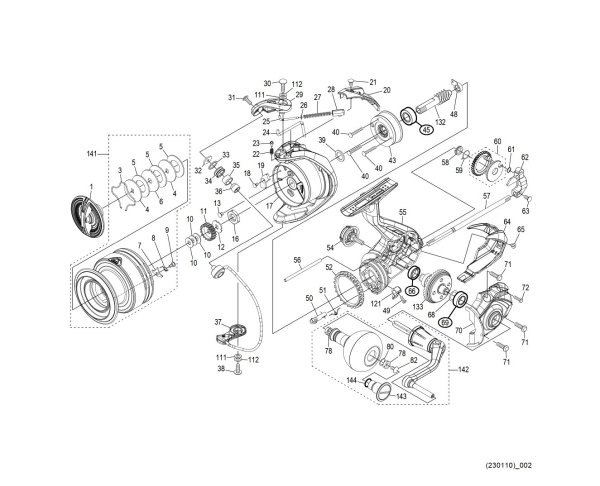

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10T6H DRAG KNOB ASSEMBLY 17.05
3 10B8N STOPPER SPRING 1.65
4 10BCE OVAL WASHER 1.65
5 102ZG DRAG WASHER 1.65
6 102ZD EAR WASHERS 1.65
7 1038D SPOOL PIN 1.65
8 10JM5 CLICK SPRING 1.65
9 10PH5 FIXING BOLT 1.65
10 10BXN SPOOL WASHER SET 1.10
11 103MU SPOOL HOLDER (A) 1.65
12 10J04 SPOOL HOLDER (B) 1.65
13 10LCE FIXING BOLT 1.10
16 10RXE ROTOR NUT 1.65
17 13Z9L ROTOR 10.45
18 10LA3 FIXING BOLT 1.65
19 106GA BALANCER A 1.65
20 101T5 ARM CAM SPRING COVER 6.05
21 10LFK FIXING BOLT 1.10
22 10CH0 INTERNAL GERI LEVER CLICK PIN 1.65
23 106ZC CLICK PIN 1.65
24 106P4 INTERNAL GERI LEVER 2.75
25 1061L ARM SPRING GUIDE (A) 3.85
26 10TYE SPRING GUIDE (A) COLLAR 1.65
27 105R6 ARM CAM SPRING 1.65
28 107AB ARM CAM SPRING SEAT 2.75
29 13Z9M ARM CAM 3.85
30 10LHX ARM CAM MOUNTING KEY BOLT 1.10
31 10K90 FIXING BOLT 1.10
32 10PFP ARM ROLLER WASHER 1.10
33 10KFD ARM ROLLER SPACER 1.65
34 10JLF ARM ROLLER 1.65
35 10PFH ARM ROLLER BUSHING 1.10
36 1020X LINE ROLLER COLLARS 1.65
37 101HK BAIL ASSEMBLY 9.35
38 10LFH FIXING BOLT 1.10
39 1074R BEARING PUSHERS 1.10
40 103C6 FIXING BOLT 1.10
43 10QPN ROLLER CLUTCH ASSEMBLY 11.55
45 107FE BALL BEARING (7X14X5) 7.15
48 1074K PINION GEAR BUSH 1.65
49 10L1R FIXING BOLT 1.10
50 10TB2 STOPPER CAM 1.10
50 10TB2 STOPPER CAM 1.10
51 105B4 CLICK SPRING 1.65
52 104FV FRICTION RING 2.75
54 13YP8 HANDLE SCREW CAP ASSEMBLY 6.05
55 13Z9N BODY 13.20
56 101HU SLIDE GUIDE 1.65
57 101SZ MAIN SHAFT 6.05
58 10TBH BUSH 1.10
59 10RPB BUSH SPRING 1.10
60 10U1D SLIDER GEAR 3.30
61 10241 O-RING 1.65
62 101UC SLIDER GEAR 8.25
63 10ML7 FIXING BOLT 1.65
64 100H6 BODY GUARD 5.50
65 10LCS FIXING BOLT 1.10
66 107FA BALL BEARING (7X11X3) 7.15
68 10EEZ WASHER 2.75
69 107AT BALL BEARING (7X13X4) 7.15
70 13Z9P LID 9.90
71 10L9Q FIXING BOLT 1.10
72 10LPL FIXING BOLT 1.65
78 10PXZ HANDLE KNOB BUSHING 1.65
80 104FH WASHER 2.20
82 10LFA FIXING BOLT 1.10
111 10K96 ADJUSTMENT WASHER 1.65
112 10KFA ADJUSTMENT WASHER 1.10
121 10RHG STOPPER LEVER 1.10
132 101SV PINION GEAR 10.45
133 13YW3 DRIVE GEAR ASSEMBLY 10.45
141 13YW4 SPOOL ASSEMBLY 34.10
142 13YW5 HANDLE ASSEMBLY 38.50
143 1027G HANDLE CAP 6.60
144 10LAA O-RING 1.10
