[SHIMANO] Genuine Spare Parts for 18 CALCUTTA CONQUEST 400 RIGHT Product code: 038654 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.66 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.
*Please make sure to read about the conditions before you order.

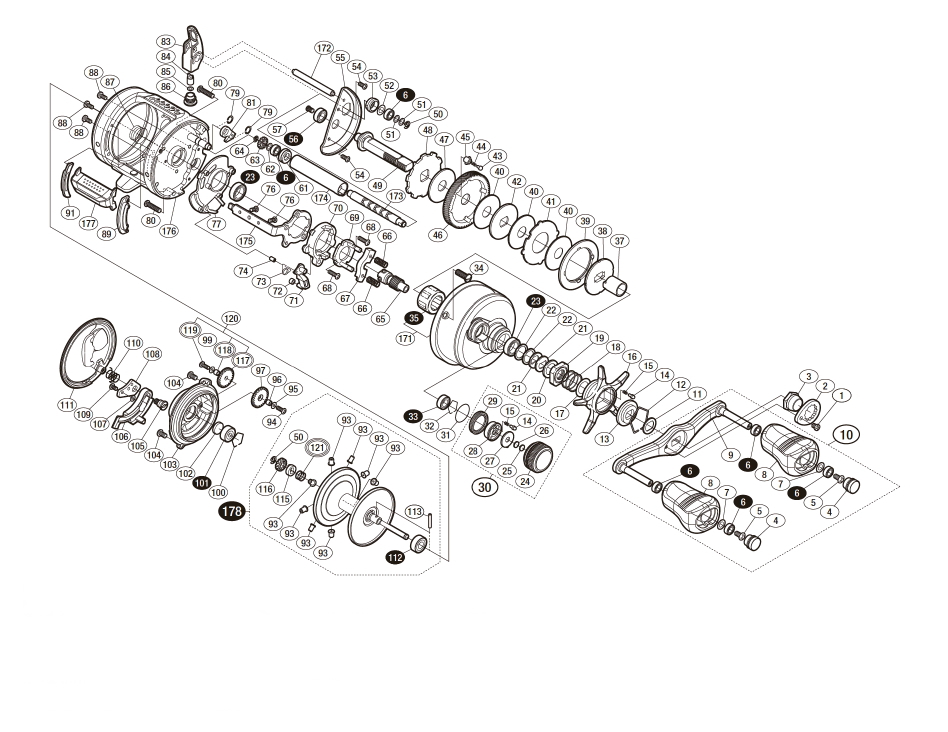

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* As for the "35 / ROLLER CLUTCH", "112 / BALL BEARING" and "113 /SPOOL CLUTCH PIN, they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
*F01 | 13WHQ | REEL BAG (ACCESSORY) | 9.35 |
1 | 10CZ5 | FIXING BOLT | 2.75 |
2 | 10Q66 | RETAINER | 3.85 |
3 | 10FNF | HANDLE FIXING NUT | 2.75 |
4 | 10FMG | HANDLE CAP | 3.85 |
5 | 103E9 | FIXING BOLT | 1.10 |
6 | 104VX | BALL BEARING (4×7×2.5) | 13.75 |
7 | 104FH | WASHER | 2.20 |
8 | 10326 | HANDLE KNOB | 11.55 |
9 | 10A69 | HANDLE KNOB | 39.60 |
10 | 10TTM | HANDLE ASSEMBLY | 101.20 |
11 | 107QQ | HANDLE HOLDER WASHER | 1.65 |
12 | 10KXV | STAR DRAG SOUNDING PLATE | 1.65 |
13 | 10J26 | STAR DRAG SOUNDING PLATE | 1.65 |
14 | 10B27 | CLICK PIN | 1.65 |
15 | 10988 | CLICK SPRING | 1.65 |
16 | 10AU2 | STAR DRAG | 28.05 |
17 | 10HHN | SLIDER WASHER (9×13×0.3) | 1.65 |
18 | 10A71 | STAR DRAG SPRING | 2.75 |
19 | 10A3V | STAR DRAG FIXING NUT | 3.85 |
20 | 10J1N | STAR DRAG SPACER | 1.65 |
21 | 1052E | SALA SPRING (DB8H) | 1.65 |
22 | 10GHN | WASHER | 1.65 |
23 | 10EX8 | BALL BEARING (8X12X3.5) | 13.75 |
24 | 10T06 | MECHANICAL BRAKE KNOB | 17.05 |
25 | 10897 | SPOOL DRAG WASHER (B) | 1.10 |
26 | 1085G | SPOOL DRAG WASHER | 1.10 |
27 | 10L2E | MECHANICAL BRAKE KNOB SOUNDING PLATE | 2.75 |
28 | 10BSX | M BRAKE KNOB CLICK PIN HOLDER | 2.75 |
29 | 10L70 | SPOOL DRAG KNOB SOUND EMITTING STOPPER WHEEL | 2.75 |
30 | 10TDA | MECHANICAL BRAKE KNOB ASSEMBLY | 28.05 |
31 | 109EB | O-RING S11.2 | 1.65 |
32 | 1057X | EXTRACTION STOPPER | 1.65 |
33 | 105BR | BALL BEARING (5×9×3) | 13.75 |
34 | 10A6X | FIXING BOLT | 3.85 |
35 | 10F33 | ROLLER CLUTCH *Cannot be ordered | 22.55 |
37 | 10BN7 | INNER TUBE A-RB | 6.05 |
38 | 10D54 | STAR DRAG PLATE | 3.85 |
39 | 10JAZ | DRAG SOUNDING SYLLATIC RATCHET | 1.65 |
40 | 10CHW | STAR DRAG WASHER | 6.05 |
41 | 10KQL | STAR DRAG WASHER | 1.65 |
42 | 10LB6 | STAR DRAG WASHER | 1.65 |
43 | 10C0S | DRAG CLICK PIN | 2.75 |
44 | 10J89 | DRAG CLICK SPRING | 1.65 |
45 | 10J58 | DRAG SPRING HOLDER | 1.65 |
46 | 10QRB | DRIVE GEAR | 28.05 |
47 | 10CHZ | STAR DRAG WASHER | 2.75 |
48 | 10D71 | STOPPER GEAR | 3.85 |
49 | 13UFC | DRIVE GEAR SHAFT | 22.55 |
50 | 105NK | E TYPE STOP RING 2.5 | 1.10 |
51 | 10J16 | WASHER | 1.10 |
52 | 10G8G | WORM SHAFT WASHER (A) | 1.10 |
53 | 10N9Q | WORM SHAFT RECEIVER (A) | 1.65 |
54 | 10MPR | BODY A SEAT B FIXING BOLT | 1.10 |
55 | 109SX | DRIVE GEAR SHAFT FIXING PLATE | 9.35 |
56 | 105BP | BALL BEARING (5×9×3) | 13.75 |
57 | 10PVT | FIXING BOLT | 1.65 |
61 | 104SP | WORM SHAFT HOLDER (B) | 1.65 |
62 | 10G6B | WASHER | 1.10 |
63 | 10FTA | WORM SHAFT GEAR | 2.75 |
64 | 105NC | E TYPE STOP RING 2 | 1.10 |
65 | 10AAH | PINION GEAR | 22.55 |
66 | 10ECN | CLUTCH YOKE SPRING | 1.10 |
67 | 1046X | CLUTCH YOKE | 1.65 |
68 | 10TP0 | FIXING BOLT | 1.10 |
69 | 10F3Y | CLUTCH CAM PUSH PLATE | 3.85 |
70 | 10K0X | CLUTCH CAM | 2.75 |
71 | 105ZM | CLUTCH CLAW | 3.85 |
72 | 1048C | CLUTCH CLAW BUSHING | 1.65 |
73 | 104CJ | CLUTCH CLAW SPRING | 1.65 |
74 | 108S5 | SPRING SPACER SEAT | 1.65 |
76 | 103C0 | FIXING BOLT | 1.10 |
77 | 10BVS | BODY A SEAT | 3.85 |
79 | 105S2 | CLINCENT STOP RING | 1.10 |
80 | 103M0 | FIXING BOLT | 1.65 |
81 | 10MW1 | STOPPER CLAW ASSEMBLY | 6.05 |
83 | 10NYG | LEVEL WINDING ASSEMBLY | 34.10 |
84 | 10FFT | WORM SHAFT PIN | 3.85 |
85 | 10GD0 | WASHER | 1.10 |
86 | 10FJC | LEVEL WINDING RECEPTACLE | 6.05 |
87 | 10EZE | BB PUSH SPRING | 1.65 |
88 | 103C2 | FIXING BOLT | 1.10 |
89 | 10972 | CLUTCH LEVER HOLDER (B) | 1.65 |
91 | 10ASN | CLUTCH LEVER HOLDER (A) | 1.65 |
93 | 10CPE | BRAKE COLLAR (GRAY) | 1.65 |
94 | 10LVM | FIXING BOLT | 1.10 |
95 | 10HVD | WORM SHAFT GEAR (B) | 1.10 |
96 | 10ECQ | WORM SHAFT GEAR (B) HOLDER | 2.75 |
97 | 10T04 | WORM SHAFT GEAR (B) | 2.75 |
99 | 10HYM | WORM SHAFT GEAR (B) WASHER | 1.10 |
100 | 10GEW | BEARING STOPPER | 1.10 |
101 | 105C1 | BALL BEARING (3×10×4) | 13.75 |
102 | 1057S | SPOOL SHAFT CONTACT (B) | 1.10 |
103 | 10EF1 | FRAME B BEARING ASSEMBLY | 34.10 |
104 | 10LSL | FIXING BOLT | 1.10 |
105 | 10GM6 | BODY B SHAFT | 6.05 |
106 | 10BAS | BODY B CAM LEVER | 2.75 |
107 | 10280 | WASHER | 1.10 |
108 | 10AYX | DAMPER BUSHING | 2.75 |
109 | 10U0S | FIXING BOLT | 1.10 |
110 | 10KNA | DAMPER SPRING | 1.65 |
111 | 100SC | BODY B ASSEMBLY | 45.10 |
112 | 105CA | BALL BEARING (5×11×4) *Cannot be ordered | 13.75 |
113 | 10MD1 | SPOOL CLUTCH PIN *Cannot be ordered | 1.10 |
115 | 10MCY | SPOOL SHAFT CAM | 1.65 |
116 | 10JAH | WORM SHAFT GEAR | 3.85 |
117 | 10TUG | WORM SHAFT GEAR (D) | 2.75 |
118 | 10TUH | WORM SHAFT GEAR (D) RECEIVER | 2.75 |
119 | 10TTU | FIXING BOLT | 1.10 |
121 | 10E20 | SPOOL SHAFT SPRING | 1.65 |
131 | 10ECR | BRAKE COLLAR (CLEAR) (ACCESSORY) | 1.65 |
171 | 100M6 | MAIN BODY A SET | 123.75 |
172 | 10GUH | LEVEL WINDING GUIDE | 3.85 |
173 | 101TD | WORM SHAFT | 9.35 |
174 | 10NFV | LEVEL-WIND PIPE | 11.55 |
175 | 10QLD | CLUTCH PLATE | 4.95 |
176 | 10EVN | FRAME | 190.30 |
177 | 10MWJ | CLUTCH LEVER | 9.35 |
178 | 100M5 | SPOOL ASSEMBLY (WITH BEARINGS) | 90.20 |
BNKI | 13WU1 | EXPLODED VIEW (ACCESSORIES) | 1.65 |
ITOS | 13QPZ | THREAD STOPPER SEAL | 1.65 |
OIL1 | 10LQ0 | B-100 OIL (4.5 G) | 3.85 |
TRST | 13VT7 | INSTRUCTION MANUAL (ACCESSORY) | 1.65 |
