[SHIMANO] Genuine Spare Parts for 24 VANFORD 2500S Product Code: 047052 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 24 VANFORD 2500S Product Code: 047052 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.2 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/8133

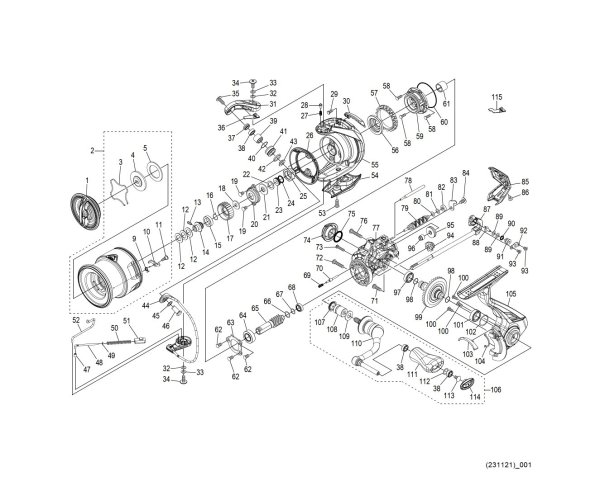

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 14626 DRAG KNOB ASSEMBLY 19.80
2 1462M SPOOL ASSEMBLY 74.80
3 10B8N STOPPER SPRING 1.65
4 10BBR OVAL WASHER 1.65
5 10R5H DRAG WASHER (A) 2.20
9 10BQF SPOOL PIN SPRING 1.65
10 102H5 SPOOL PIN 1.65
11 10TRB FIXING BOLT 1.65
12 10BU9 SPOOL WASHER 1.10
13 10PN3 SET SCREW (M2 X 5) 1.65
14 10THY SPOOL SHAFT BEARING GUIDE 3.85
15 10J3F SPOOL BUSH 1.65
16 107V2 RATCHET SPRING 1.65
17 10SYS DRAG CLICK RATCHET 2.75
18 103PE SPOOL BEARING 1.65
19 103GW FIXING BOLT 1.65
20 1076N RETAINER 2.75
21 1017W ROTOR BEARING SEAL 1.65
22 100RU WASHER 1.65
23 10RDL MAIN SHAFT COLLAR 3.85
24 10DXE O-RING 1.65
25 1427D ROTOR NUT 6.05
26 1462D ROTOR FLANGE 9.35
27 10HE7 CLICK SPRING 1.65
28 106ZC CLICK PIN 1.65
29 10RNG FIXING BOLT 1.65
30 1462F BALANCER GUARD 2.75
31 141HV ARM CAM 8.25
32 10KFA ADJUSTMENT WASHER 1.10
33 10K96 ADJUSTMENT WASHER 1.65
34 10RFW FIXING BOLT 1.65
35 10TLJ FIXING BOLT 2.75
36 1427J ARM CAM FIN 1.10
37 10E44 LINE ROLLER COLLAR 2.75
38 104VX BALL BEARING (4X7X2.5) 13.75
39 1009K LINE ROLLER BUSH 1.65
40 1009E O-RING 1.65
41 1009A LINE ROLLER 6.05
42 10RFZ LINE ROLLER SPACER 1.65
43 10TJM LINE ROLLER BEARING COLLAR 2.75
44 146ST BAIL ASSEMBLY 46.20
45 1018Z WASHER 1.65
46 10TPC ARM FIXING SHAFT 6.05
47 1009B ARM SPRING GUIDE (A) COLLAR BUSH 1.65
48 10SAN ARM SPRING GUIDE (A) 3.85
49 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
50 10DMC ARM CAM SPRING 1.65
51 107AB ARM CAM SPRING SEAT 2.75
52 14625 INNER GERI LEVER 2.75
53 101CC FIXING BOLT 1.65
54 145EW BAIL MOUNTING COVER 8.25
55 146SV ROTOR ASSEMBLY 41.80
56 101D5 ROTOR COLLAR 9.35
57 10QXQ FRICTION RING 2.75
58 100WT FIXING BOLT 1.65
59 10S2L ROLLER CLUTCH ASSEMBLY 12.65
60 1009Z O-RING 1.65
61 1009Y ROLLER CLUTCH INNER 3.85
62 100WY FIXING BOLT 1.65
63 10DWD BEARING PUSH PLATE 1.65
64 10DZB BALL BEARING (7X13X4) 7.15
65 1427N PINION GEAR 19.80
66 10HE5 WASHER 1.65
67 10SYU WASHER 1.65
68 104JZ BALL BEARING (5X8X2.5) 13.75
69 1427P INTERMEDIATE GEAR SPRING 1.10
70 1427Q INTERMEDIATE GEAR SHAFT 3.85
71 10LZG FIXING BOLT 1.10
72 10M31 FIXING BOLT 1.10
73 10TP1 FIXING BOLT 1.10
74 1427T HANDLE SCREW CAP 5.50
75 108WH O-RING 1.65
76 146AR FIXING BOLT 1.65
77 141HS BODY 33.00
78 1427V SLIDER GUIDE 1.65
79 1427W WORM SHAFT 6.05
80 10ECK WASHER 1.10
81 10K98 WASHER 1.10
82 1009C WORM SHAFT BUSHING 1.65
83 1427X WORM SHAFT COVER 1.65
84 10QG5 FIXING BOLT 1.10
85 141HU BODY GUARD 11.55
86 10RX2 FIXING BOLT 1.65
87 141HD MAIN SHAFT ASSEMBLY 22.00
88 1018D WORM SHAFT PIN 6.05
89 1070D WASHER 1.10
90 100WX O-RING 1.65
91 1009L WORM SHAFT PIN COLLAR 1.65
92 10182 WORM SHAFT PIN PUSH PLATE 1.65
93 1055H FIXING BOLT 1.65
94 1427Z INTERMEDIATE GEAR (LARGE) 9.35
95 10DK0 WORM SHAFT GEAR 9.35
96 1427Y BUSH 1.10
97 107FA BALL BEARING (7X11X3) 7.15
98 1009S O-RING 1.65
99 14281 DRIVE GEAR 20.35
100 100UL FIXING BOLT 1.65
101 10EX6 BALL BEARING (8X12X3.5) 7.15
102 101AY WASHER 2.20
103 14282 INTERNAL GERI CONTACT 1.65
104 1009W FOOT FLANGE SEAL 2.75
105 146TB COVER ASSEMBLY 33.00
106 14629 HANDLE ASSEMBLY 68.20
107 10PXV HANDLE SHAFT SEAL 2.75
108 100A0 HANDLE SHAFT FLANGE (B) 6.05
109 100RR HANDLE WASHER 1.65
110 146T0 HANDLE SHANK ASSEMBLY 51.15
111 14285 HANDLE KNOB 11.55
112 104FH HANDLE WASHER 2.20
113 10LFA FIXING BOLT 1.10
114 14286 HANDLE CAP 4.95
115 14287 ARM CAM FIN 1.10
MH01 1462P NAMEPLATE ON BACK OF LEG 2.75
