[DAIWA] Genuine Spare Parts for 07 TD ZILLION P, H, SH 100HL Product code: 00614051 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 07 TD ZILLION P, H, SH 100HL Product code: 00614051 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.



*Please make sure to read about the conditions before you order.

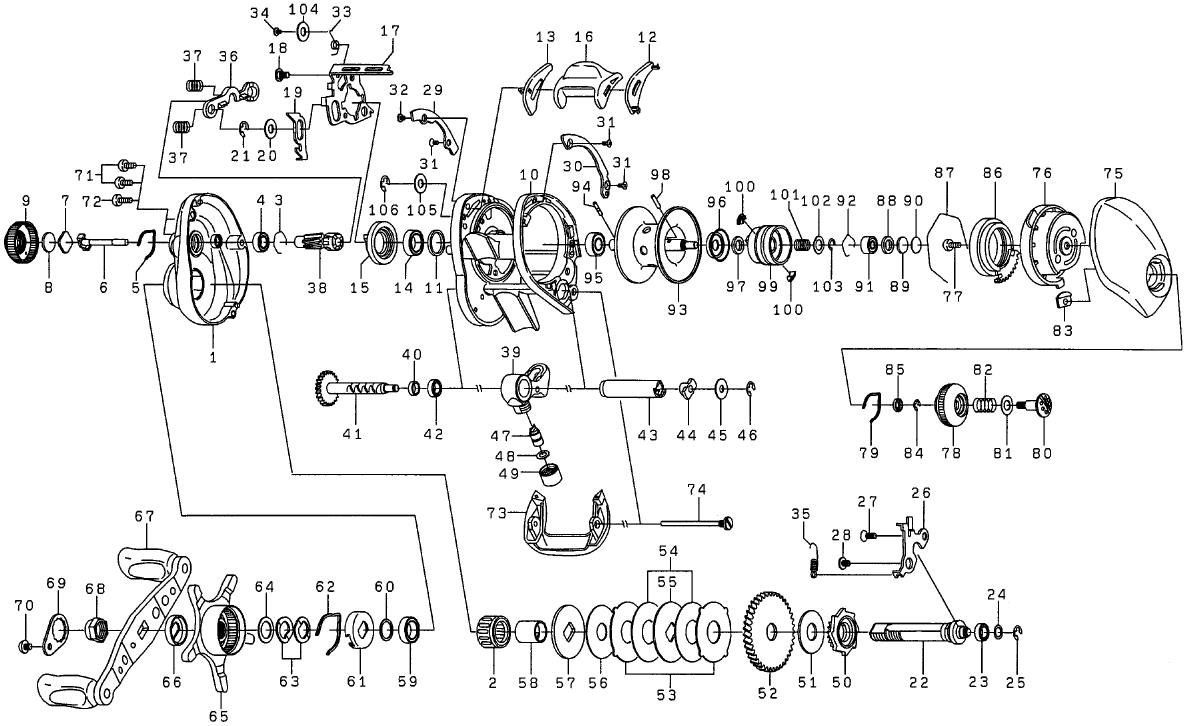

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS PLATE *Discontinued 6G801301 60.50
2 ONE-WAY CLUTCH 6G819801 20.90
3 PINION RING 6B421601 2.20
4 LS BALL BEARING 6G538007 15.40
5 MECHANICAL BRAKE LEAF SP 6F262701 2.20
6 PINION SHAFT 6F744101 3.30
7 MECHANICAL BRAKE KNOB W (A) 6B175401 1.10
8 MECHANICAL BRAKE KNOB W (B) 6B175503 1.10
9 MECHANICAL BRAKE KNOB *Discontinued 6F833907 15.40
10 FRAME *Discontinued 6G801503 66.00
11 CLUTCH CAM COLLAR *Discontinued 6F834701 2.20
12 CLUTCH LEVER PLATE (R) *Discontinued 6G260702 2.20
13 CLUTCH LEVER PLATE (L) *Discontinued 6G260802 2.20
14 CLUTCH CAM BALL BEARING 6G431008 15.40
15 CLUTCH CAM 6F997401 3.30
16 CLUTCH LEVER 6G260901 7.70
17 CLUTCH CAM PLATE *Discontinued 6G801701 3.30
18 CLUTCH CAM PLATE SC 6M070101 4.40
19 KICK LEVER *Discontinued 6G801801 4.40
20 KICK LEVER W 63716906 1.10
21 KICK LEVER RETAINER 63201402 2.20
22 GEAR SHAFT *Discontinued 6G790202 29.70
23 GEAR SHAFT BALL BEARING 6G466205 15.40
24 GEAR SHAFT W *Discontinued 6G755201 1.10
25 GEAR SHAFT RITINER 63205901 2.20
26 GEAR SHAFT PLATE *Discontinued 6G801901 2.20
27 GEAR SHAFT PLATE SC (A) 6E134503 2.20
28 GEAR SHAFT PLATE SC (B) 6G021201 3.30
29 GUARD PLATE (L) *Discontinued 6G794106 4.40
30 GUARD PLATE (R) *Discontinued 6G795706 4.40
31 GUARD PLATE SC (A) *Discontinued 6G318503 2.20
32 GUARD PLATE SC (B) 6G611501 2.20
33 CLUTCH CAM SP *Discontinued 6G802001 2.20
34 CLUTCH CAM SP HOLD SC *Discontinued 6F505701 2.20
35 KICK LEVER SP *Discontinued 6G790501 2.20
36 CLUTCH PLATE 6F998201 2.20
37 CLUTCH SP *Discontinued 6G047201 2.20
38 PINION *Discontinued 6G802101 18.70
39 LEVEL WINDING 6G410301 22.00
40 WORM SHAFT COLLAR 6G010701 3.30
41 WORM SHAFT 6G790701 12.10
42 WORM SHAFT BEARING 6F648301 4.40
43 WORM SHIELD 6F836502 3.30
44 WORM SHAFT BUSHINGS 6B715601 2.20
45 WORM SHAFT W 6F655501 1.10
46 WORM SHAFT RETICULAR 63205901 2.20
47 WORM SHAFT POLE 61214212 3.30
48 POLE W 63731303 1.10
49 POLE HOLDER NUT 63424807 3.30
50 RATCHET 6G802201 15.40
51 DRIVE GEAR W 6G863501 6.60
52 DRIVE GEAR *Discontinued 6G802301 18.70
53 DRAG GRIP W 6G791301 2.20
54 DRAG W (A) *Discontinued 6G791401 3.30
55 DRAG DISK W (A) 6F904902 2.20
56 DRAG W (B) *Discontinued 6G711101 3.30
57 DRAG DISC W (B) 6G358501 2.20
58 CLUTCH RING 6G011401 8.80
59 DRAG BALL BEARING 6G431001 15.40
60 DRAG BEARING W 6B553801 1.10
61 DRAG HOLDER 6F028201 2.20
62 DRAG LEAF SP 6F032401 2.20
63 DRAG SP・W 61508901 2.20
64 DRAG COLLARS 63737810 1.10
65 STAR DRAG *Discontinued 6G792502 35.20
66 HANDLE COLLARS 6F850402 3.30
67 HANDLE NUT *Discontinued 6G814901 70.40
68 HANDLE NUT 6G793302 4.40
69 HANDLE LOCK PLATE 60403209 3.30
70 HANDLE LOCK PLATE SC 63538301 2.20
71 LS PLATE SC (A) 6G040805 2.20
72 LS PLATE SC (B) 6G040801 2.20
73 FRONT COVER 6G261505 7.70
74 FRONT COVER SC 6G011702 7.70
75 RS PLATE *Discontinued 6G261608 20.90
76 SET PLATE *Discontinued 6G261802 20.90
77 SET PLATE SC 63510906 2.20
78 BRAKE DIAL *Discontinued 6F577802 6.60
79 BRAKE DIAL LEAF SP 6F051701 2.20
80 BRAKE DIAL SC 6G793501 7.70
81 BRAKE DIAL SC-W *Discontinued 6G793603 1.10
82 BRAKE DIAL SP 6E167101 2.20
83 BRAKE DIAL RITINER (A) 6F613401 2.20
84 BRAKE DIAL RITINER (B) 6B339801 2.20
85 BRAKE DIAL COLLARS 6F637701 1.10
86 MAG HOLDER 6F717702 17.60
87 MAG HOLDER RING 6B543201 2.20
88 RS BEARING W (A) 6F574303 1.10
89 RS BEARING W (B) 63757411 1.10
90 RS BEARING W (C) 63757404 1.10
91 RS BALL BEARING 6G431105 15.40
92 RS BEARING RING 6E219701 2.20
93 SPOOL (93-103) *Discontinued 6Z018069 90.20
94 SPOOL PIN 6G717501 2.20
95 SPOOL BALL BEARING 6G498508 15.40
96 SPOOL HOLDER COLLAR *Discontinued 6G796601 4.40
97 SPOOL HOLDER COLLAR W 6F574303 1.10
98 SPOOL HOLDER PIN *Discontinued 6G361001 2.20
99 SPOOL HOLDER *Discontinued 6G704405 7.70
100 BALANCER *Discontinued 6G704601 2.20
101 SPOOL HOLDER SP *Discontinued 6G546701 2.20
102 SPOOL HOLDER W 6G150301 1.10
103 SPOOL HOLDER RETAINER 63208202 2.20
104 CLUTCH CAM SP HOLDER W 6F440201 1.10
105 CLUTCH CAM PLATE HOLDER W 6G850701 1.10
106 CLUTCH CAM PLATE HOLDER RITINER 63205901 2.20
107 MECHANICAL BRAKE KNOB W (C) 6F625502 1.10
200 HANDLE KNOB *Discontinued 6F976408 15.40
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB COLLAR 6G221601 2.20
203 HANDLE KNOB SC 6B679308 2.20
204 HANDLE KNOB CAP 6F578803 2.20
