[DAIWA] Genuine Spare Parts for 16 ZILLION TW HLC 1514SHL Product code: 00613459 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

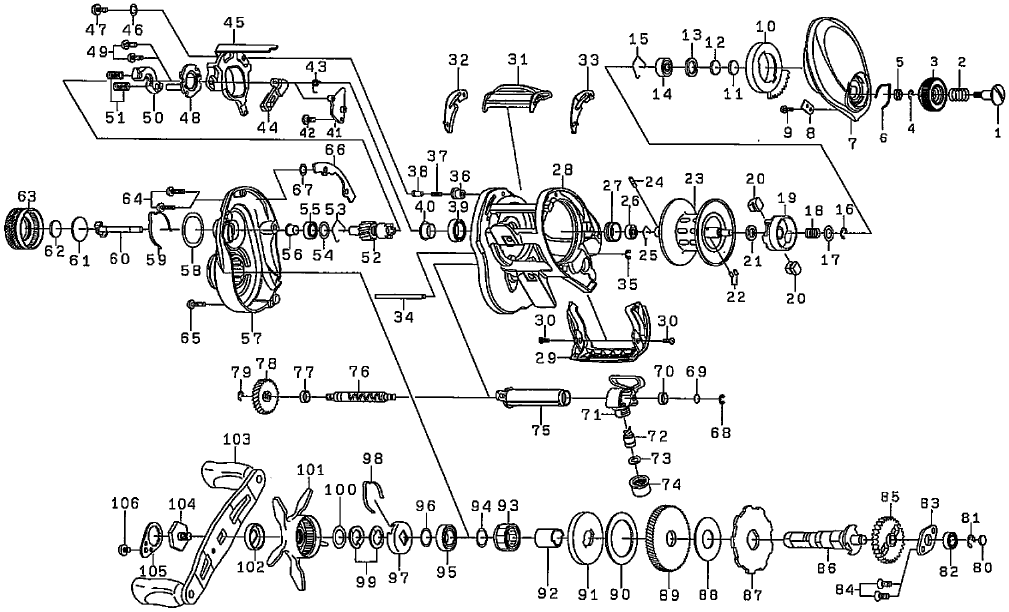

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	BRAKE DIAL SC	6J716301	3.30
2	BRAKE DIAL SP	6E167101	2.20
3	BRAKE DIAL	6J045414	11.00
4	BRAKE DIAL RETAINER (A)	6B339801	2.20
5	BRAKE DIAL COLOR	6F637701	1.10
6	BRAKE DIAL LEAF SP	6H663401	2.20
7	RS PLATE	6J265902	34.10
8	BRAKE DIAL RETAINER (B)	6H915501	2.20
9	BRAKE DIAL RETAINER (B) SC	6G939301	2.20
10	MUG HOLDER	6J045701	40.70
11	RS BEARING W (A)	63757404	1.10
12	RS BEARING W (B)	63757411	1.10
13	RS BEARING W (C)	6G185101	1.10
14	RS BALL BEARING	6G511506	15.40
15	RS BEARING RING	6F032201	2.20
16	SPOOL HOLDER SP RETAINER	63208202	2.20
17	SPOOL HOLDER SP/W	6G150301	1.10
18	SPOOL HOLDER SP	6J373401	2.20
19	SPOOL HOLDER	6J373301	19.80
20	SPOOL HOLDER COLOR	6G360901	2.20
21	SPOOL HOLDER W	6E096501	1.10
22	SPOOL HOLDER PIN	6H665301	2.20
23	SPOOL (16-27)	6Z022967	157.30
24	SPOOL PIN	6H358801	2.20
25	SPOOL BEARING RING	6J149501	2.20
26	SPOOL BALL BEARING	6G511506	15.40
27	SPOOL BEARING COLLAR	6H232201	2.20
28	FLAME	6J061608	28.60
29	FRONT COVER	6J045204	8.80
30	FRONT COVER SC	6H455407	2.20
31	CLUTCH LEVER	6J101601	12.10
32	CLUTCH LEVER PLATE (L)	6H915701	2.20
33	CLUTCH LEVER PLATE (R)	6H915601	2.20
34	OSCILLATING POST	6H912101	2.20
35	OSCILLATING POST RETAINER	6H704101	2.20
36	CLUTCH CAM PLATE PIN SP COLLAR	6H910601	2.20
37	CLUTCH CAM PLATE PIN SP	6H928801	2.20
38	CLUTCH CAM PLATE PIN	6J055201	2.20
39	CLUTCH CAM BALL BEARING	6G431008	15.40
40	CLUTCH CAM BEARING COLLAR	6M518401	7.70
41	HARDCOVER PLATE (A)	6H944301	2.20
42	HARDCOVER PLATE (A) SC	6H294101	2.20
43	KITSUKUREBA-SP	6H473301	2.20
44	HARDCOVER	6J221501	12.10
45	CLUTCH CAM PLATE	6H944001	4.40
46	CLUTCH CAM PLATE SC/W	6H159201	1.10
47	CLUTCH CAM PLATE SC	63522501	2.20
48	HARDCOVER PLATE (B)	6H659101	3.30
49	HARDCOVER PLATE (B) SC	6B032904	2.20
50	CLUTCH PLATE	6H944401	3.30
51	CLUTCH SP	6J055301	2.20
52	PINION + DRIVE GEAR SET	6Z021828	50.60
53	PINION RING	6H160801	2.20
54	PINION BEARING W	6J073501	1.10
55	PINION BALL BEARING (MAG SHIELD) *Cannot be ordered	6J019303	45.10
56	PINION BEARING COLLAR *Cannot be ordered	6J724501	7.70
57	LS PLATE	6J373601	71.50
58	MECHANICAL BRAKE O-RING	6H157002	1.10
59	MECHANICAL BRAKE KNOB SP	6H160901	2.20
60	PINION SHAFT	6H159601	3.30
61	MECHANICAL BRAKE W (B)	6H161001	1.10
62	MECHANICAL BRAKE W (C)	6B175503	1.10
63	MECHANICAL BRAKE KNOB	6J097404	33.00
64	LS PLATE SC(A)	6G040822	3.30
65	LS PLATE SC (B)	6G040821	3.30
66	GUARD PLATE	6J044505	4.40
67	GUARD PLATE O RING	6H770601	1.10
68	WORM SHAFT RETAINER	63205901	2.20
69	WORM SHAFT W	6B411702	1.10
70	WARM SHAFT COLOR	6G720001	2.20
71	LEVEL WIND	6J176602	50.60
72	PAUL	61214212	3.30
73	PAUL W	63731303	1.10
74	POLE HOLDER NUT	6F402801	2.20
75	WARM SHIELD	6H944601	3.30
76	WORM SHAFT	6H911702	8.80
77	WARM SHAFT COLOR	6G720001	2.20
78	WORM SHAFT GEAR	6H910501	3.30
79	WORM SHAFT GEAR RETAINER	6B339801	2.20
80	GEAR SHAFT W	6G099806	1.10
81	GEAR SHAFT RETAINER	63208002	2.20
82	GEAR SHAFT BALL BEARING	6G538007	15.40
83	GEAR SHAFT PLATE	6H928901	3.30
84	GEAR SHAFT PLATE SC	6E134509	2.20
85	WORM GEAR	6H912701	4.40
86	GEAR SHAFT	6J044702	17.60
87	RATCHET	6H929401	3.30
88	DRIVE GEAR W	6J085101	1.10
89	PINION + DRIVE GEAR SET	6Z021828	50.60
90	DRAG W	6H452602	6.60
91	DRAG DISC W	6H913201	3.30
92	DRAG COLOR	6J377801	8.80
93	ONE WAY CLUTCH	6G819801	20.90
94	CLUTCH RING W	6B553802	1.10
95	HANDLE BALL BEARING	6G431008	15.40
96	HANDLE BEARING W	6F366802	1.10
97	DRAG HOLDER	6F028203	3.30
98	DRAG HOLDER LEAF SP	6F032401	2.20
99	DRAG SP・W	61508901	2.20
100	STAR DRAG W	6H929501	2.20
101	STAR DRAG	6H694106	27.50
102	HANDLE COLOR	6F850401	3.30
103	HANDLE	6J372801	106.70
104	HANDLE NUT	6G779101	6.60
105	HANDLE LOCK PLATE	6H834507	3.30
106	HANDLE LOCK PLATE SC	63538301	2.20
201	HANDLE KNOB W	6B411703	1.10
202	HANDLE KNOB SP/W	6H744801	1.10
203	HANDLE KNOB	6J372901	22.00
204	HANDLE KNOB BALL BEARING	6G469007	15.40
205	HANDLE KNOB SC	6B679308	2.20
206	HANDLE KNOB CAP	6F578803	2.20
