[DAIWA] Genuine Spare Parts for 20 ZILLION 10 SV TW 10.0R Product code: 00630071 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.

*Please make sure to read about the conditions before you order.

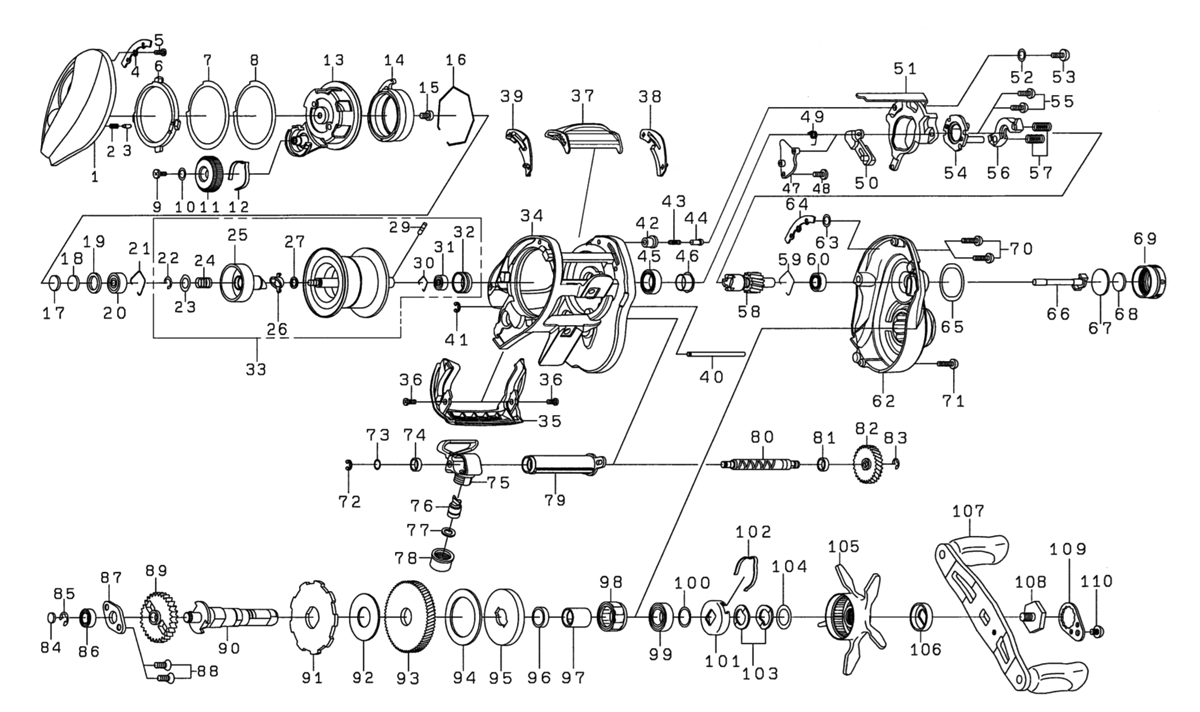

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	LS PLATE	6J931301	27.50
2	LEVER PLATE SP	6J631901	2.20
3	LEVER PLATE PIN	6J286301	2.20
4	GUARD PLATE (L)	6J409806	6.60
5	GUARD PLATE SC	6H881504	2.20
6	LEVER PLATE (A)	6J641201	2.20
7	LEVER PLATE (B)	6J286101	2.20
8	LEVER PLATE (C)	6J645201	2.20
9	BRAKE DIAL SC	6G940402	2.20
10	BRAKE DIAL W	6H159202	1.10
11	BRAKE DIAL W	6J282604	9.90
12	BRAKE DIAL LEAF SP	6H663401	2.20
13	SET PLATE	6J931401	44.00
14	MAG HOLDER	6J296701	24.20
15	SET PLATE SC	6H666002	2.20
16	MAG HOLDER RING	6J315701	2.20
17	LS BEARING W (A)	63757404	1.10
18	LS BEARING W (B)	63757411	1.10
19	LS BEARING W (C)	6G185101	1.10
20	LS BALL BEARING	6G511503	8.80
21	LS BEARING RING	6F032201	2.20
22	SPOOL HOLDER SP RETAINER	63208002	2.20
23	SPOOL HOLDER SP・W	6J497001	1.10
24	SPOOL HOLDER SP	6H862301	2.20
25	SPOOL HOLDER	6H950701	19.80
26	SPOOL HOLDER COLLAR	6J190301	2.20
27	SPOOL HOLDER W	6E096501	1.10
29	SPOOL PIN	6H358801	2.20
30	SPOOL BEARING RING	6J149501	2.20
31	SPOOL BALL BEARING	6G511503	8.80
32	SPOOL BEARING COLLAR	6H232201	2.20
33	SPOOL (22-32)	6Z025132	133.10
34	FRAME	6J969201	30.80
35	FRONT COVER	6J244010	8.80
36	FRONT COVER SC	6H842803	2.20
37	CLUTCH LEVER	6J242901	9.90
38	CLUTCH LEVER PLATE (R)	6H915601	2.20
39	CLUTCH LEVER PLATE (L)	6H915701	2.20
40	OSCILLATING POST	6J244101	2.20
41	OSCILLATING POST RETAINER	6H704101	2.20
42	CLUTCH CAM PLATE PIN SP COLLAR	6H910601	2.20
43	CLUTCH CAM PLATE PIN SP	6H928801	2.20
44	CLUTCH CAM PLATE PIN	6J055201	2.20
45	CLUTCH CAM BALL BEARING	6G431004	8.80
46	CLUTCH CAM BEARING COLLAR	6M518401	7.70
47	KICK LEVER PLATE (A)	6J242801	2.20
48	KICK LEVER PLATE (A) SC	6H294101	2.20
49	KICK LEVER PLATE (SP)	6J243201	2.20
50	KICK LEVER	6J221401	12.10
51	CLUTCH CAM PLATE	6J242601	4.40
52	CLUTCH CAM PLATE SC・W	6H159202	1.10
53	CLUTCH CAM PLATE SC	63522501	2.20
54	KICK LEVER PLATE (B)	6J959601	3.30
55	KICK LEVER PLATE (B) SC	6B032904	2.20
56	CLUTCH PLATE	6J848501	3.30
57	CLUTCH SP	6H582001	2.20
58	PINION + DRIVE GEAR SET	6Z025129	50.60
59	PINION RING	6H448401	2.20
60	PINION BALL BEARING	6B358608	8.80
62	RS PLATE *Not available	6J926101	100.10
63	GUARD PLATE O-RING	6H770601	1.10
64	GUARD PLATE (R)	6J409806	6.60
65	ZERO ADJUSTER O-RING	6J279701	1.10
66	PINION SHAFT	6J198801	3.30
67	ZERO ADJUSTER W (A)	6B175401	1.10
68	ZERO ADJUSTER W (B)	6B175503	1.10
69	ZERO ADJUSTER	6J279601	18.70
70	RS PLATE SC (A)	6G040822	3.30
71	RS PLATE SC (B)	6G040821	3.30
72	WORM SHAFT RETAINER	63205901	2.20
73	WORMSHAFT W	6B411702	1.10
74	WORMSHAFT BALL BEARING	6G469002	8.80
75	LEVEL WINDING	6J243304	70.40
76	POLE	61214212	3.30
77	POLE W	63731303	1.10
78	POLE HOLDER NUT	6F402801	2.20
79	WORM SHIELD	6J243701	3.30
80	WORM SHAFT	6J927101	8.80
81	WORM SHAFT BALL BEARING	6G469002	8.80
82	WORMSHAFT GEAR	6H910501	3.30
83	WORMSHAFT GEAR RETAINER	6B339801	2.20
84	GEAR SHAFT W	6G099801	1.10
85	GEAR SHAFT RITINER	63208002	2.20
86	GEAR SHAFT BALL BEARING	6B358608	8.80
87	GEAR SHAFT PLATE	6H156501	6.60
88	GEAR SHAFT PLATE SC	6E134509	2.20
89	WORM GEARS	6H912701	4.40
90	GEAR SHAFTS	6J640505	18.70
91	RATCHET	6H929401	3.30
92	DRIVE GEAR W	6J085101	1.10
93	PINION + DRIVE GEAR SET	6Z025129	50.60
94	DRAG W	6H452602	6.60
95	DRAG DISK W	6H913201	3.30
96	CLUTCH RING COLLAR	6J640601	2.20
97	CLUTCH RING	6J327701	8.80
98	ONE-WAY CLUTCH	6G819801	20.90
99	HANDLE BALL BEARING	6G431004	8.80
100	HANDLE BEARING W	6B553802	1.10
101	DRAG HOLDER	6F028203	3.30
102	DRAG HOLDER LEAF SP	6F032401	2.20
103	DRAG SP・W	61508901	2.20
104	STARDRAG W	6H929501	2.20
105	STAR DRAG *Not available	6H694109	30.80
106	HANDLE COLOR	6F850401	3.30
107	HANDLE	6J926601	94.60
108	HANDLE SC	6J295501	9.90
109	HANDLE LOCK PLATE	6H834501	9.90
110	HANDLE LOCK PLATE SC	63538302	2.20
200	HANDLE KNOB W	6B411703	1.10
201	HANDLE KNOB SP-W	6H744801	1.10
202	HANDLE KNOB	6Q344801	17.60
203	HANDLE KNOB BALL BEARING	6G469002	8.80
204	HANDLE KNOB COLLAR	6G720001	2.20
205	HANDLE KNOB SC	6B679308	2.20
206	HANDLE KNOB CAP	6Q345001	2.20
