[DAIWA] Genuine Spare Parts for 07 STEEZ 100SH Product code: 00614064 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

p> ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

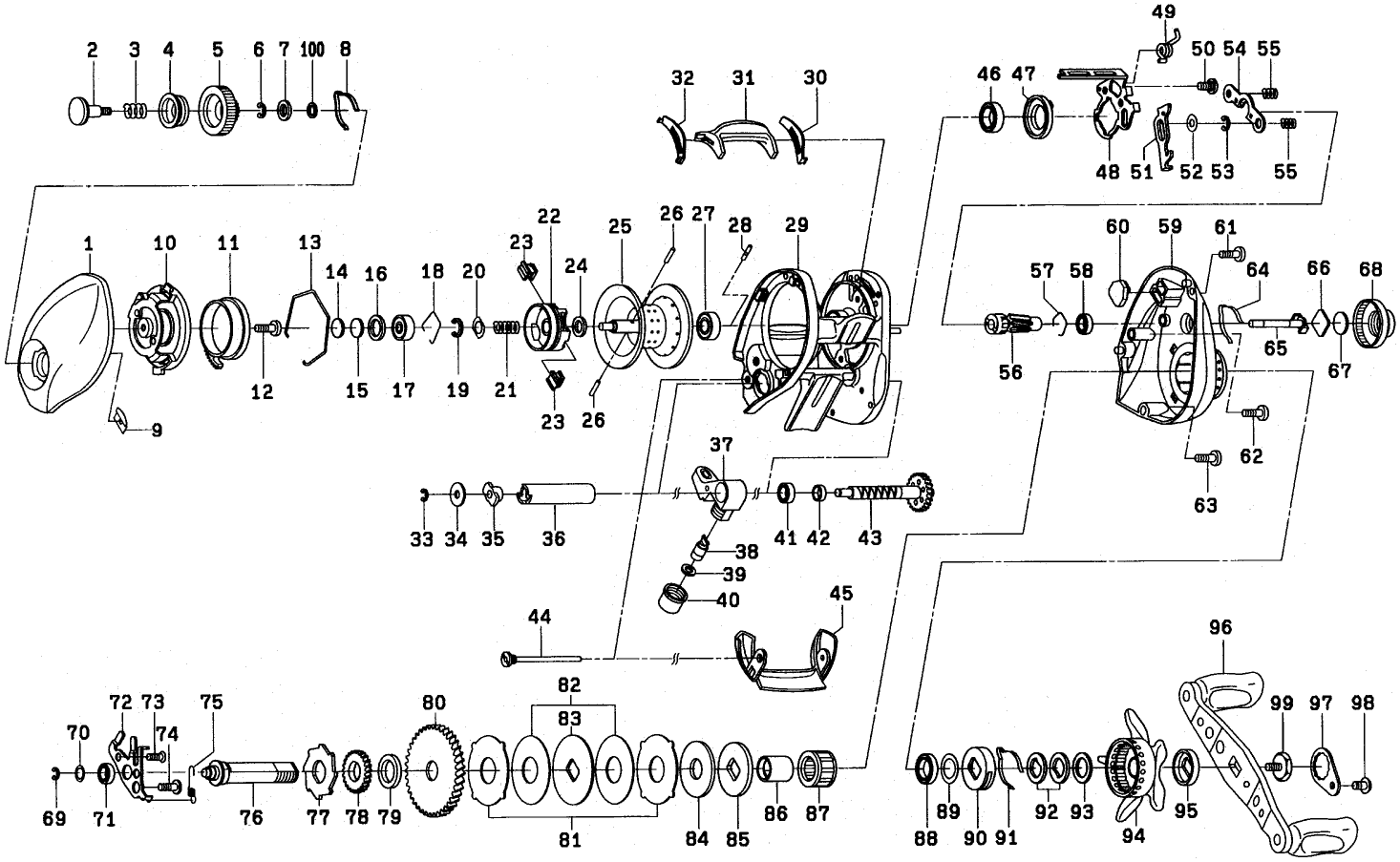

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	LS PLATE *Discontinued	6G757301	34.10
2	BRAKE DIAL SC	6F577901	3.30
3	BRAKE DIAL SP	6E167101	2.20
4	BRAKE DIAL W(A)	6F770705	3.30
5	BRAKE DIAL	6G757401	7.70
6	BRAKE DIAL RITINER (A)	6B339801	2.20
7	BRAKE DIAL COLOR	6F637701	1.10
8	BRAKE DIAL LEAF SP	6F051701	2.20
9	BRAKE DIAL RITINER (B)	6F613401	2.20
10	SET PLATE	6G757001	36.30
11	MAG HOLDER	6G757701	17.60
12	MAG HOLDER SC	63510906	2.20
13	MAG HOLDER RING	6G757801	2.20
14	LS BEARING W (A)	63757404	1.10
15	LS BEARING W (B)	63757411	1.10
16	LS BEARING W (C)	6G185101	1.10
17	LS BALL BEARING	6G511503	8.80
18	LS BEARING RING	6F032201	2.20
19	SPOOL HOLDER RETAINER	63208202	2.20
20	SPOOL HOLDER W	6G150301	1.10
21	SPOOL HOLDER SP *Discontinued	6H029901	2.20
22	SPOOL HOLDER *Discontinued	6H023102	34.10
23	BALANCER *Discontinued	6G954701	2.20
24	SPOOL W	6F574303	1.10
25	SPOOL (19-28) *Discontinued	6Z018300	148.50
26	SPOOL HOLDER PIN	6H022901	2.20
27	SPOOL BALL BEARING	6G498504	8.80
28	SPOOL PIN	6G717501	2.20
29	FRAME *Discontinued	6H146803	78.10
30	CLUTCH LEVER PLATE (R)	6G754301	2.20
31	CLUTCH LEVER	6G754602	9.90
32	CLUTCH LEVER PLATE (L)	6G754401	2.20
33	WATER SHAFT RETAINER	63205901	2.20
34	WORMSHAFT W	6F655501	1.10
35	WORM SHAFT BUSHING	6B715601	2.20
36	WORM SHIELD	6F836502	3.30
37	LEVEL WINDING	6G755701	18.70
38	POLE	61214212	3.30
39	POLE W	63731303	1.10
40	POLE HOLDER NUT	6F402801	2.20
41	WORM SHAFT BALL BEARING	6G466202	8.80
42	WORM SHAFT COLLAR	6G010701	3.30
43	WORM SHAFT	6G418001	15.40
44	FRONT COVER SC (SILVER)	6G358704	4.40
45	FRONT COVER	6G756802	8.80
46	CLUTCH CAM BALL BEARING	6G431004	8.80
47	CLUTCH CAM	6G357101	3.30
48	CLUTCH CAM PLATE *Discontinued	6G754802	4.40
49	CLUTCH CAM SP	6G755301	2.20
50	CLUTCH CAM PLATE SC *Discontinued	6G009701	4.40
51	CLUTCH CLEVERS	6H147101	4.40
52	KITZ CLUTCH CAM RETAINER W	6G539401	1.10
53	KITZ CLUTCH CAM RETURNER	63205901	2.20
54	CLUTCH PLATE	6G357901	2.20
55	CLUTCH SP	6G358001	2.20
56	PINION	6H147301	22.00
57	PINION RING	6E219701	2.20
58	PINION BALL BEARING	6G466202	8.80
59	RS PLATE *Discontinued	6H247501	100.10
60	CLUTCH CAM SP COVER PLATE	6G262301	2.20
61	RS PLATE SC (A)	6G040814	2.20
62	RS PLATE SC (B)	6G040815	2.20
63	RS PLATE SC (C)	6G040801	2.20
64	MECHANICAL BRAKE LEAF SP	6F262701	2.20
65	PINION SHAFT	6G015501	3.30
66	MECHANICAL BRAKE W (A)	6B175401	1.10
67	MECHANICAL BRAKE W (B)	6B175503	1.10
68	MECHANICAL BRAKE KNOB *Discontinued	6G774702	27.50
69	GEAR SHAFT RE-TRIGGER	63205901	2.20
70	GEAR SHAFT W	6G755203	1.10
71	GEAR SHAFT BALL BEARING	6G466202	8.80
72	GEAR SHAFT PLATE	6H147201	2.20
73	GEAR SHAFT PLATE SC (A)	6E134503	2.20
74	GEAR - SHAFT PLATE SC (B)	6G875801	3.30
75	KICK LEVER SP	6J048501	2.20
76	GEAR - SHAFT *Discontinued	6G755001	29.70
77	LATCHET	6G756001	3.30
78	WORMSHAFT GEAR	6G756101	11.00
79	WORMSHAFT GEAR W *Discontinued	6G878301	7.70
80	DRIVE GEAR	6H147401	22.00
81	DRAG GRIP W *Discontinued	6G791302	3.30
82	DRAG W (A)	6G791402	7.70
83	DRAG DISK W (A) *Discontinued	6F904903	3.30
84	DRAG W (B) *Discontinued	6H033001	7.70
85	DRAG DISK W (B)	6B360306	3.30
86	DRAG COLLAR	6G011401	8.80
87	ONE-WAY CLUTCH	6G819801	20.90
88	HANDLE BALL BEARING	6G756301	8.80
89	HANDLE BEARING W	6B553801	1.10
90	DRAG HOLDER	6F028201	2.20
91	DRAG HOLDER LEAF SP	6F032401	2.20
92	DRAG SP-W	61508901	2.20
93	STA-DRAG W	63737810	1.10
94	STA-DRAG *Discontinued	6G775101	35.20
95	HANDLE COLOR	6F850401	3.30
96	HANDLE *Discontinued	6G964801	111.10
97	HANDLE LOCK PLATE *Not available	60403206	3.30
98	HANDLE LOCK PLATE SC	6G835501	2.20
99	HANDLE NUT	6G779101	6.60
100	BRAKE DIAL W (B)	63754104	1.10
101	MECHANICAL BRAKE KNOB W (C)	6F625502	1.10
200	HANDLE KNOB W (W)	6B411703	1.10
201	HANDLE KNOB *Discontinued	6F976411	15.40
202	HANDLE KNOB BALL BEARING	6G469002	8.80
203	HANDLE KNOB SC	6B679308	2.20
204	HANDLE KNOB CAP	6F950001	2.20
300	POWER MAG BRAKE SET (R) *Discontinued	114085	67.10
