[DAIWA] Genuine Spare Parts for 14 STEEZ LTD SV TN 103H-TN Product code: 00614058 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

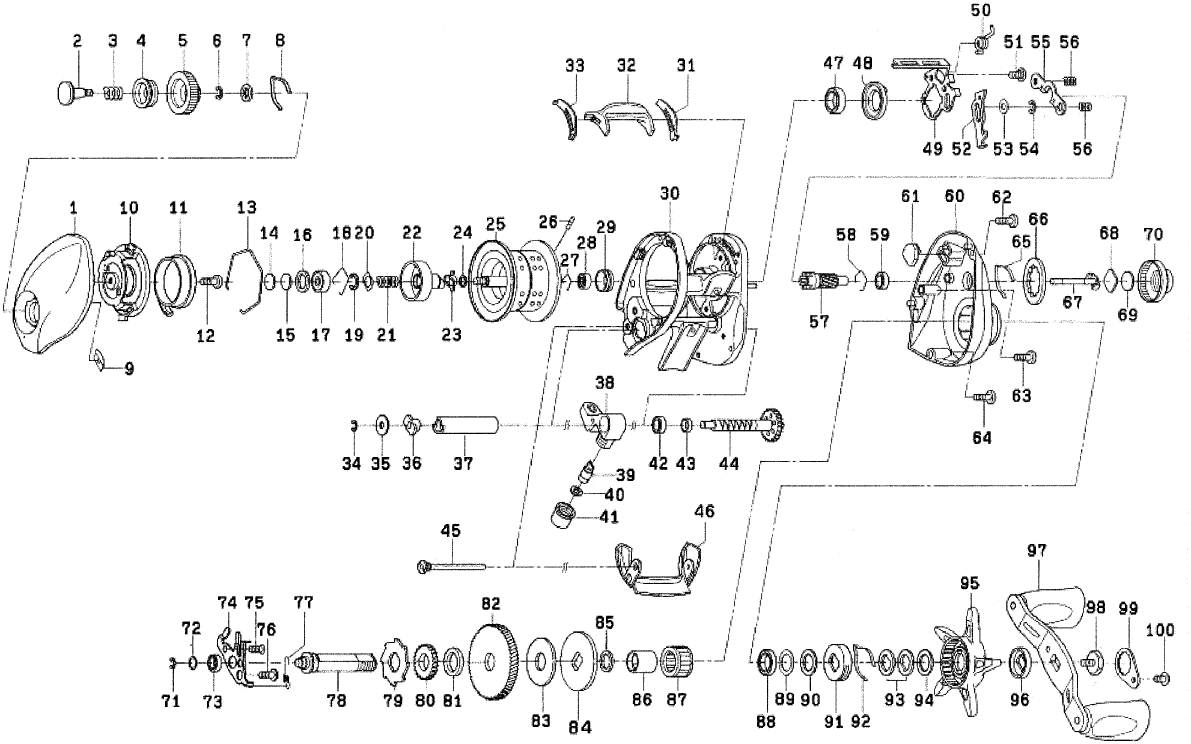

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	LS PLATE *Cannot be ordered	6J078501	42.90
2	BRAKE DIAL SC *Cannot be ordered	6J078601	36.30
3	BRAKE DIAL SP	6E167101	2.20
4	BRAKE DIAL W(A)	6F770705	3.30
5	BRAKE DIAL	6G757401	7.70
6	BRAKE DIAL RITINER (A)	6B339801	2.20
7	BRAKE DIAL COLOR	6F637701	1.10
8	BRAKE DIAL LEAF SP	6H613101	4.40
9	BRAKE DIAL RITINER (B)	6F613401	2.20
10	SET PLATE	6G757001	36.30
11	MAG HOLDER	6G757701	17.60
12	MAG HOLDER SC	63510906	2.20
13	MAG HOLDER RING	6G757801	2.20
14	LS BEARING W (A)	63757404	1.10
15	LS BEARING W (B)	63757411	1.10
16	LS BEARING W (C)	6G185101	1.10
17	LS BALL BEARING	6G511503	8.80
18	LS BEARING RING	6F032201	2.20
19	SPOOL HOLDER RETAINER	63208002	2.20
20	SPOOL HOLDER W	6G150301	1.10
21	SPOOL HOLDER SP	6H862301	2.20
22	SPOOL HOLDER	6J109101	34.10
23	SPOOL HOLDER COLLAR	6J190301	2.20
24	SPOOL HOLDER COLLAR W	6E096501	1.10
25	SPOOL (19-29) *Cannot be ordered	6Z021839	176.00
26	SPOOL PIN	6G717501	2.20
27	SPOOL BEARING RING	6H160801	2.20
28	SPOOL BALL BEARING	6G511503	8.80
29	SPOOL BEARING COLLAR	6H232201	2.20
30	FRAME *Cannot be ordered	6J078201	93.50
31	CLUTCH LEVER PLATE (R)	6G754301	2.20
32	CLUTCH LEVER	6G754602	9.90
33	CLUTCH LEVER PLATE (L)	6G754401	2.20
34	WATER SHAFT RETAINER	6F550501	2.20
35	WORMSHAFT W	6F655501	1.10
36	WORM SHAFT BUSHING	6B715601	2.20
37	WORM SHIELD	6F836502	3.30
38	LEVEL WINDING	6G755705	26.40
39	POLE	61214212	3.30
40	POLE W	63731303	1.10
41	POLE HOLDER NUT	6F402801	2.20
42	WORM SHAFT BALL BEARING	6G466202	8.80
43	WORM SHAFT COLLAR	6G010701	3.30
44	WORM SHAFT	6G418001	15.40
45	FRONT COVER SC	6G358704	4.40
46	FRONT COVER *Discontinued	6G756806	8.80
47	CLUTCH CAM BALL BEARING	6G431004	8.80
48	CLUTCH CAM	6G357101	3.30
49	CLUTCH CAM PLATE	6G754801	3.30
50	CLUTCH CAM SP	6G755301	2.20
51	CLUTCH CAM PLATE SC	6M070101	4.40
52	CLUTCH CLEVERS	6H147101	4.40
53	KITZ CLUTCH CAM RETAINER W	6G539401	1.10
54	KITZ CLUTCH CAM RETURNER	63205901	2.20
55	CLUTCH PLATE	6J011701	3.30
56	CLUTCH SP	6H765401	2.20
57	PINION + DRIVE GEAR SET	6Z021555	45.10
58	PINION RING	6E219701	2.20
59	PINION BALL BEARING	6G466202	8.80
60	RS PLATE *Cannot be ordered	6J078101	116.60
61	CLUTCH CAM SP COVER PLATE	6G262301	2.20
62	RS PLATE SC (A)	6G040822	3.30
63	RS PLATE SC (B)	6G040823	3.30
64	RS PLATE SC (C)	6G040821	3.30
65	MECHANICAL BRAKE SP	6F262701	2.20
66	MECHANICAL BRAKE W (A)	6F625503	1.10
67	PINION SHAFT	6G015501	3.30
68	MECHANICAL BRAKE W (B)	6B175401	1.10
69	MECHANICAL BRAKE W (C)	6B175503	1.10
70	MECHANICAL BRAKE KNOB *Cannot be ordered	6G774716	45.10
71	GEAR SHAFT RE-TRIGGER	63205901	2.20
72	GEAR SHAFT W	6G755203	1.10
73	GEAR SHAFT BALL BEARING	6G466202	8.80
74	GEAR SHAFT PLATE	6H147201	2.20
75	GEAR SHAFT PLATE SC (A)	6E134503	2.20
76	GEAR - SHAFT PLATE SC (B)	6G875801	3.30
77	KICK LEVER SP	6J048501	2.20
78	GEAR - SHAFT *Discontinued	6G755003	29.70
79	LATCHET	6G756001	3.30
80	WORMSHAFT GEAR	6G756101	11.00
81	WORMSHAFT GEAR W	6E489503	1.10
82	PINION + DRIVE GEAR SET	6Z021555	45.10
83	DRAG W	6G791403	4.40
84	DRAG DISK W	6H661402	4.40
85	CLUTCH RING W(A)/0.4	6B553803	1.10
86	CLUTCH RING	6G011401	8.80
87	ONE-WAY CLUTCH	6G819801	20.90
88	HANDLE BALL BEARING	6G756301	8.80
89	HANDLE BEARING W	6B553801	1.10
90	DRAG HOLDER W	63737810	1.10
91	DRAG HOLDER	6F028203	3.30
92	DRAG HOLDER LEAF SP	6F032401	2.20
93	DRAG HOLDER SP-W	61508901	2.20
94	STARDRAG W	6G694201	2.20
95	STA-DRAG	6H820001	33.00
96	HANDLE COLOR	6H661701	2.20
97	HANDLE *Cannot be ordered	6J078301	236.50
98	HANDLE NUT	6G779105	47.30
99	HANDLE LOCK PLATE *Not available	60403206	3.30
100	HANDLE LOCK PLATE SC	6G835502	3.30
101	CLUTCH RING W(B)/0.5	63737810	1.10
200	HANDLE KNOB W	6H744801	1.10
201	HANDLE KNOB *Cannot be ordered	6J488402	31.90
202	HANDLE KNOB BALL BEARING	6G469002	8.80
203	HANDLE KNOB SC	6B679313	2.20
204	HANDLE KNOB CAP	6F578803	2.20
