[IOS Factory] DAIWA Line Roller Direct 23

[IOS Factory] DAIWA Line Roller Direct 23

Our Selling Price: US$53.90 [Regular Price: US$77.00]

Color:
Quantity:

Item Description




Compatible with Hard Ester Lines! No Blind Spots in This Line Roller

The ultra-thick shielded stainless steel bearings improve corrosion and durability, reducing line roller troubles caused by salt, sand, and dust.

The high-balance design minimizes rotational wobble as much as possible and enables stable retrieval.

The longest taper shape in its class, which reduces line troubles, works with nylon, fluorocarbon, and PE lines and reduces line twists in the increasingly popular hard ester lines.

Improved winding power.
The large-diameter line roller alleviates the lack of winding power common in recent years' popular lightweight and compact gears.

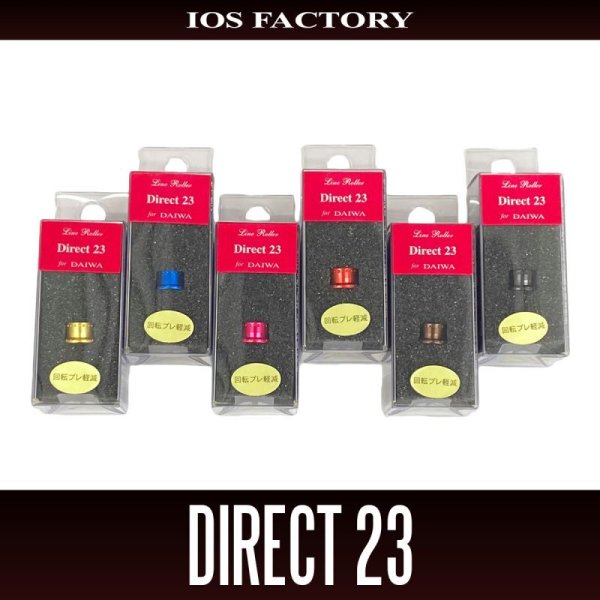

Color Lineup



Gold




Blue




Pink (Former maniacs' Original Color)




Red




Brown (Former maniacs' Original Color)




Black (Limited Edition)


Product Name

Line Roller Direct 23 for DAIWA


Reel Compatibility

It is recommended for monocoque body reels released from 2018 onwards, with a balanced design to reduce rotor rotational wobble.

When installed on reels released before 2018, rotational wobble may be more noticeable.


Product Specifications

Main Body: High-strength aluminum (corrosion-resistant anodized finish)

Bearings: Stainless steel bearings with anti-corrosion coating

Related Parts, Shims: Stainless steel


Important Notes When Purchasing

This product is a custom part that prioritizes performance.
It may need to be improved in durability compared to genuine Magsealed line rollers.
The line may be more noticeable when using hard ester lines.

The degree of rotational wobble reduction varies depending on the reel model.
It does not eliminate rotor wobble.

For regular maintenance, rinse around the line roller with water, dry thoroughly, and apply IOS-02 to both sides of the bearings only if used in saltwater.

Before and after casting, ensure the mounting screws are not loose.


Installation Instructions

- When the line roller fixing screw is on the bottom

Examples: 21 PRESSO, 20 LUVIAS, 18 EXIST, DS series, etc

Remove all components of the genuine line roller unit using a flathead screwdriver (No. 2 recommended), reusing only the screws.

If the screws are too tight to remove, pour boiling water over the line roller to make it easier.

Insert the screw from beneath the line roller arm lever.

Set the following order from the opposite side: disc shim, 0.5mm shim, bearing, 0.5mm shim, main body, bearing, 0.2mm shim.

Finally, tighten the screw and check the rotation.

Apply IOS-01 to each bearing.
For use in saltwater or if durability is a priority, apply IOS-02.




- When the line roller fixing screw is on the top side

Examples: 22 EXIST, 24 CERTATE, 23 AIRITY, SF series, etc.


Remove all components of the genuine line roller unit using a Torx screwdriver (No. 6), reusing only the screws.

If the screws are too tight to remove, pour boiling water over the line roller to make it easier.

Insert the screw through the hole above the bail with a 0.5mm shim.

Set the following order from the opposite side: disc shim, 0.5mm shim, bearing, 0.5mm shim, main body, bearing, 0.2mm shim.

Finally, tighten the screw and check the rotation.

Apply IOS-01 to each bearing.
For use in saltwater or if durability is a priority, apply IOS-02.
