[DAIWA] Genuine Spare Parts for 20 STEEZ AIR TW 500XXHL Product code: 00613539 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 20 STEEZ AIR TW 500XXHL Product code: 00613539 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Part Number:
Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

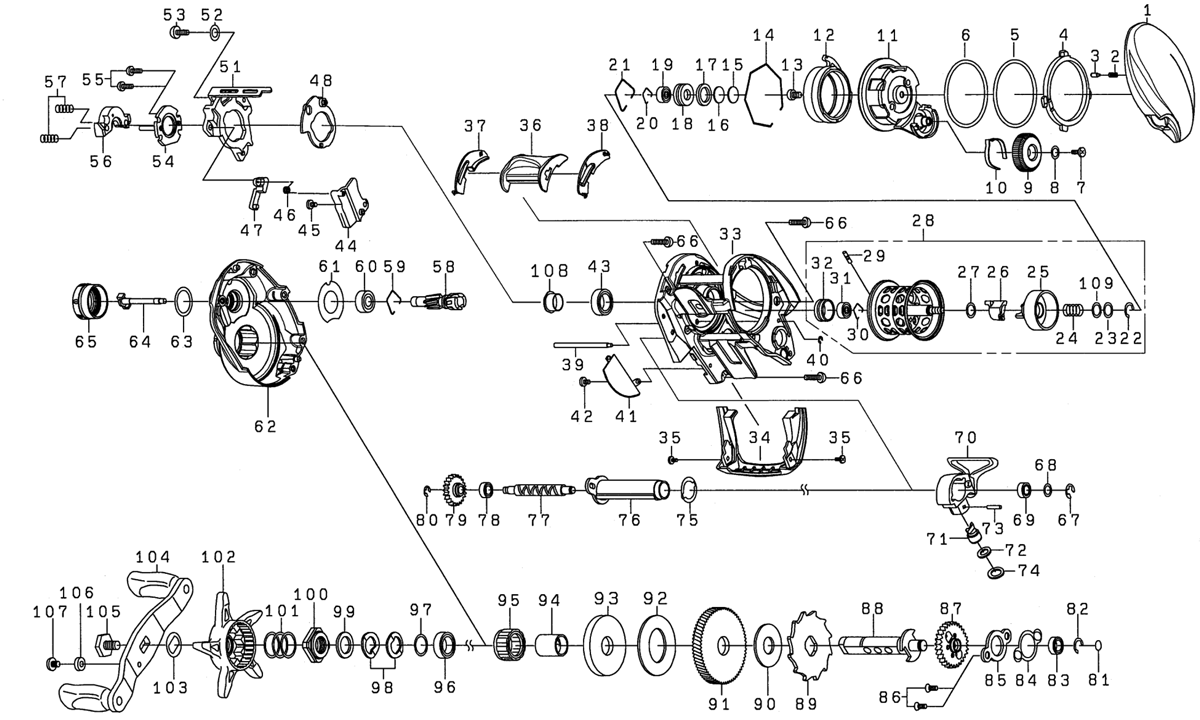

 Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 RS PLATE 6J850901 40.70
2 LEVER PLATE SP 6J631901 2.20
3 LEVER PLATE PIN 6J286301 2.20
4 LEVER PLATE (A) 6J766401 2.20
5 LEVER PLATE (B) 6J742601 2.20
6 LEVER PLATE (C) 6J741703 2.20
7 BRAKE DIAL SC 6G940402 2.20
8 BRAKE DIAL W 6H159201 1.10
9 BRAKE DIAL 6J741803 7.70
10 BRAKE DIAL LEAF SP 6H663401 2.20
11 SET PLATE 6J766201 46.20
12 MAG HOLDER 6J741901 24.20
13 SET PLATE SC 6H666002 2.20
14 MAG HOLDER RING 6J742201 2.20
15 RS BEARING W (A) 63757404 1.10
16 RS BEARING W (B) 63757411 1.10
17 RS BEARING W (C) 6G185101 1.10
18 RS BEARING COLLAR 6H813601 4.40
19 RS BALL BEARING 6G281602 15.40
20 RS BEARING RING 6G639601 2.20
21 RS BEARING COLLAR RING 6F032201 2.20
22 SPOOL HOLDER SP RETAINER 63208002 2.20
23 SPOOL HOLDER SP-W (A) 6J497001 1.10
24 SPOOL HOLDER SP 6M042801 2.20
25 SPOOL HOLDER 6J851501 19.80
26 SPOOL HOLDER COLLAR 6H814101 2.20
27 SPOOL HOLDER W 6E096505 1.10
28 SPOOL (22-32, 109) *Cannot be ordered 6Z024889 181.50
29 SPOOL PIN 6J252301 2.20
30 SPOOL BEARING RING 6G639601 2.20
31 SPOOL BALL BEARING 6G281602 15.40
32 SPOOL BEARING COLLAR 6H813601 4.40
33 FRAME 6J850402 78.10
34 FRONT COVER 6J740902 8.80
35 FRONT COVER SC 6H531508 2.20
36 CLUTCH LEVER 6J739201 9.90
37 CLUTCH LEVER PLATE (L) 6J738501 2.20
38 CLUTCH LEVER PLATE (R) 6J738401 2.20
39 OSCILLATING POST 6J741001 2.20
40 OSCILLATING POST RETAINER 6H704101 2.20
41 RS COVER PLATE 6J765201 2.20
42 RS COVER PLATE SC 6H531508 2.20
43 CLUTCH CAM BALL BEARING 6G431004 8.80
44 KICK LEVER PLATE (A) 6J765701 3.30
45 KICK LEVER PLATE (A) SC 6H531508 2.20
46 KICK LEVER PLATE SP 6M042701 2.20
47 KICK LEVER 6J638601 6.60
48 CLUTCH CAM PLATE 6J765601 2.20
51 CLUTCH CAM 6J765302 9.90
52 CLUTCH CAM PLATE W 6H450701 1.10
53 CLUTCH CAM PLATE SC 6B360405 2.20
54 KICK LEVER PLATE (B) 6J959601 3.30
55 KICK LEVER PLATE (B) SC 6B032904 2.20
56 CLUTCH PLATE 6J850601 3.30
57 CLUTCH SP 6M042501 2.20
58 PINION + DRIVE GEAR SET 6Z024906 57.20
59 PINION RING 6E219701 2.20
60 PINION BALL BEARING 6G466202 8.80
61 CLUTCH SP PLATE 6J285901 2.20
62 LS PLATE 6J850301 112.20
63 ZERO ADJUSTER O-RING 61715201 1.10
64 PINION SHAFT 6J805701 3.30
65 ZERO ADJUSTER 6J805801 18.70
66 LS PLATE SC 6G945806 2.20
67 WORM SHAFT RETAINER 63205901 2.20
68 WORM SHAFT W 6B411702 1.10
69 WORM SHAFT BALL BEARING 6G469002 8.80
70 LEVEL WINDING 6J739502 70.40
71 POLE 6J740101 3.30
72 POLE W 6G099801 1.10
73 LEVEL WINDING PIN 6J740201 3.30
74 LEVEL WINDING O-RING 6G252202 1.10
75 WORM SHIELD PLATE 6J281601 2.20
76 WORM SHIELD 6J765801 3.30
77 WORM SHAFT 6M042401 8.80
78 WORM SHAFT BALL BEARING 6G469002 8.80
79 WORM SHAFT GEAR 6J281401 4.40
80 WORMSHAFT GEAR RETAINERS 6B339801 2.20
81 GEAR SHAFT W 6G099801 1.10
82 GEAR SHAFT RETAINER 63208002 2.20
83 GEAR SHAFT BALL BEARING 6G466202 8.80
84 GEAR SHAFT PLATE (A) *Not available 6J281201 2.20
85 GEAR SHAFT PLATE (B) 6J281101 3.30
86 GEAR SHAFT PLATE SC 6G297002 2.20
87 WORM GEAR 6J281001 7.70
88 GEAR SHAFT 6J848402 27.50
89 RATCHET 6H660901 3.30
90 DRIVE GEAR W 63746605 1.10
91 PINION + DRIVE GEAR SET 6Z024906 57.20
92 DRAG W 6G502403 6.60
93 DRIVE COLLAR 6J848901 6.60
94 DRAG COLLAR 6G011401 8.80
95 ONE-WAY CLUTCH 6J540401 20.90
96 HANDLE BALL BEARING 6G756301 8.80
97 HANDLE BALL BEARING W 6B553801 1.10
98 DRAG SP・W 61508901 2.20
99 STAR DRAG W 6H929501 2.20
100 DRAG NUT 6J141002 7.70
101 DRAG NUT SP 6J011901 2.20
102 STAR DRAG 6J140001 20.90
103 HANDLE W 6F576601 1.10
104 STAR DRAG W HANDLE 6J849701 96.80
105 HANDLE SC 6G779105 47.30
106 HANDLE LOCK COLLAR 6J849901 4.40
107 HANDLE LOCK PLATE SC 6H257003 2.20
108 CLUTCH CAM BALL BEARING COLLAR 6M518401 7.70
109 SPOOL HOLDER SP-W (B) 6J497002 2.20
200 HANDLE KNOB SP-W 6H744801 1.10
201 HANDLE KNOB W 6B411703 1.10
202 HANDLE KNOB BALL BEARING 6G469002 8.80
203 HANDLE KNOB 6J850001 15.40
204 HANDLE KNOB SC 6G752603 3.30
205 FRAME HOGO SEAT 6J374301 2.20
