[DAIWA] Genuine Spare Parts for 22 STEEZ A II TW 1000H Product code: 00613384 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 22 STEEZ A II TW 1000H Product code: 00613384 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Part Number:
Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

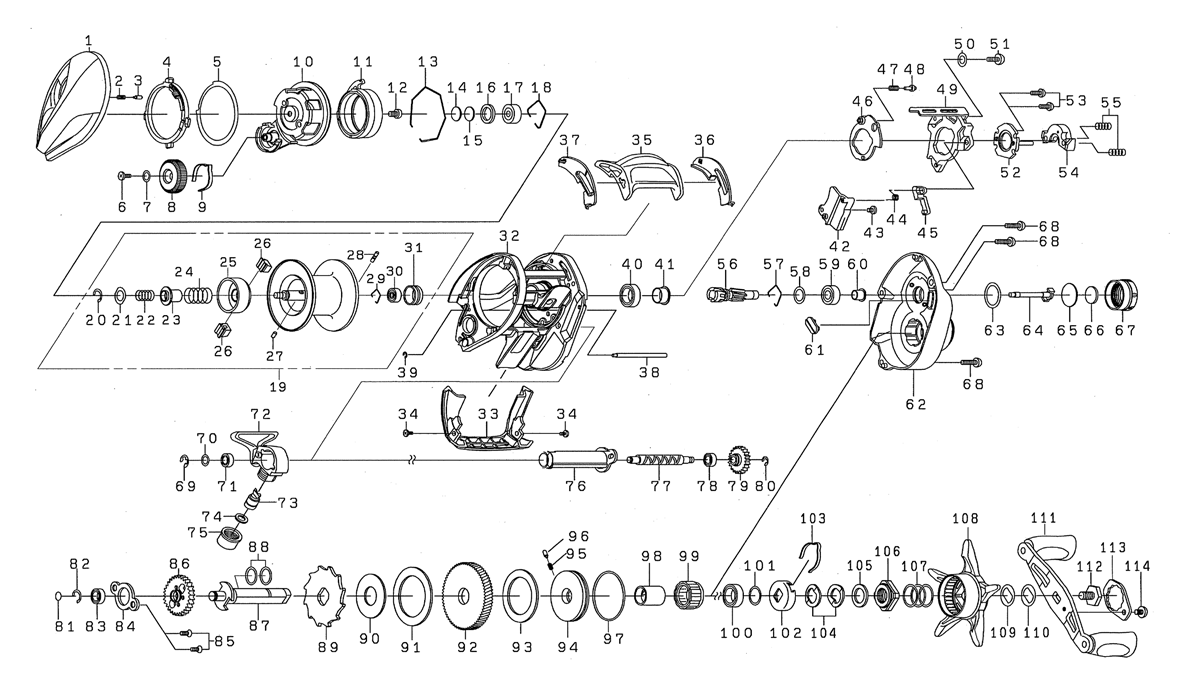

 Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 LS PLATE 6M437901 34.10
2 LEVER PLATE SP 6J631901 2.20
3 LEVER PLATE PIN 6J286301 2.20
4 LEVER PLATE (A) 6J443301 3.30
5 LEVER PLATE (B) 6J286101 2.20
6 BRAKE DIAL SC 6G940402 2.20
7 BRAKE DIAL W 6H159201 1.10
8 BRAKE DIAL 6J282603 7.70
9 BRAKE DIAL LEAF SP 6H663401 2.20
10 SET PLATE 6J443101 46.20
11 MAG HOLDER 6J296701 24.20
12 SET PLATE SC 6H666002 2.20
13 MAG HOLDER RING 6G757801 2.20
14 LS BEARING W (A) 63757404 1.10
15 LS BEARING W (B) 63757411 1.10
16 LS BEARING W (C) 6G185101 1.10
17 LS BALL BEARING 6G511506 15.40
18 LS BEARING RING 6F032201 2.20
19 SPOOL (20-31, 115) 6Z027136 163.90
20 SPOOL HOLDER SP RETAINER 63208002 2.20
21 SPOOL HOLDER SP・W 6J497001 1.10
22 SPOOL HOLDER SP (A) 6M341701 2.20
23 SPOOL HOLDER SP COLLAR 6M169801 3.30
24 SPOOL HOLDER SP (B) 6M381001 2.20
25 SPOOL HOLDER 6M458401 19.80
26 SPOOL HOLDER COLLAR 6M169601 2.20
27 SPOOL HOLDER PIN 6M169301 2.20
28 SPOOL PIN 6J252301 2.20
29 SPOOL BEARING RING 6J149501 2.20
30 SPOOL BALL BEARING 6G511506 15.40
31 SPOOL BEARING COLLAR 6M579601 2.20
32 FRAME 6M437805 78.10
33 FRONT COVER 6J281809 8.80
34 FRONT COVER SC 6H531508 2.20
35 CLUTCH LEVER 6J442301 9.90
36 CLUTCH LEVER PLATE (R) 6J442101 2.20
37 CLUTCH LEVER PLATE (L) 6J442201 2.20
38 OSCILLATING POST 6J281902 2.20
39 OSCILLATING POST RETAINER 6H704101 2.20
40 CLUTCH CAM BALL BEARING 6G431008 15.40
41 CLUTCH CAM BEARING COLLAR 6M518401 7.70
42 KICK LEVER PLATE (A) 6J280501 3.30
43 KICK LEVER PLATE SC 6H531508 2.20
44 KICK LEVER PLATE SP 6J407701 2.20
45 KICK LEVER 6J280801 9.90
46 CLUTCH CAM PLATE 6J280401 2.20
47 CLUTCH CAM PLATE SP 6H928801 2.20
48 CLUTCH CAM PLATE PIN 6J055201 2.20
49 CLUTCH CAM 6J296001 9.90
50 CLUTCH CAM PLATE W (A) 6H159201 1.10
51 CLUTCH CAM PLATE SC 63522510 2.20
52 KICK LEVER PLATE (B) 6H659101 3.30
53 KICK LEVER PLATE (B) SC 6B032904 2.20
54 CLUTCH PLATE 6H929001 3.30
55 CLUTCH SP 6J313901 2.20
56 PINION + DRIVE GEAR SET 6Z027167 63.80
57 PINION RING 6H448401 2.20
58 PINION BEARING W 6J073501 1.10
59 PINION BALL BEARING (MS) *Cannot be ordered 6J019303 45.10
60 PINION BEARING COLLAR *Cannot be ordered 6J724501 7.70
61 CLUTCH CAM HOLD PLATE 6H440201 2.20
62 RS PLATE 6M438301 100.10
63 ZERO ADJUSTER O-RING 6J279701 1.10
64 PINION SHAFT 6J198801 3.30
65 ZERO ADJUSTER W (A) 6H161001 1.10
66 ZERO ADJUSTER W (B) 6B175503 1.10
67 ZERO ADJUSTER 6J279601 18.70
68 RS PLATE SC 6G040822 3.30
69 WORM SHAFT RETAINER 63205901 2.20
70 WORM SHAFT W 6B411702 1.10
71 WORM SHAFT BALL BEARING 6G469009 15.40
72 LEVEL WINDING 6J442501 46.20
73 POLE 61214212 3.30
74 POLE W 63731303 1.10
75 POLE HOLDER NUT 6F402801 2.20
76 WORM SHIELD 6J281501 3.30
77 WORM SHAFT 6J243601 8.80
78 WORM SHAFT BALL BEARING 6G469009 15.40
79 WORM SHAFT GEAR 6J281401 4.40
80 WORMSHAFT GEAR RETAINER 6B339801 2.20
81 GEAR SHAFT W 6G099801 1.10
82 GEAR SHAFT RETAINER 63208002 2.20
83 GEAR SHAFT BALL BEARING 6G466201 15.40
84 GEAR SHAFT PLATE (A) 6J281101 3.30
85 GEAR SHAFT PLATE SC 6E134509 2.20
86 WORM GEAR 6J281001 7.70
87 GEAR SHAFT 6J442401 27.50
88 GEAR SHAFT O-RING 6F657801 1.10
89 RATCHET 6H660901 3.30
90 RATCHET W 6H661101 1.10
91 DRIVE GEAR W 6H359001 8.80
92 PINION + DRIVE GEAR SET 6Z027167 63.80
93 DRAG W (1 piece) 6J605701 13.20
94 DRIVE COLLAR 6J443001 17.60
95 DRIVE COLLAR PIN SP 6M025201 2.20
96 DRIVE COLLAR PIN 6J566201 2.20
97 DRIVE COLLAR O-RING 6J458101 1.10
98 CLUTCH RING 6G011401 8.80
99 ONE-WAY CLUTCH 6J540401 20.90
100 HANDLE BALL BEARING 6G431008 15.40
101 HANDLE BEARING W 6B553801 1.10
102 DRAG HOLDER 6F028203 3.30
103 DRAG HOLDER LEAF SP 6F032401 2.20
104 DRAG SP・W 61508901 2.20
105 STAR DRAG W 6H929501 2.20
106 DRAG NUT 6J102303 15.40
107 DRAG NUT SP 6J011901 2.20
108 STAR DRAG 6J673909 30.80
109 HANDLE W (A) 6J102801 1.10
110 HANDLE W (B) 6J101301 3.30
111 HANDLE W (A) 6M623501 96.80
112 HANDLE SC 6J295501 9.90
113 HANDLE LOCK PLATE 6J319207 3.30
114 HANDLE LOCK PLATE SC 6G835502 3.30
115 SPOOL HOLDER COLLAR W 6J497002 2.20
200 HANDLE KNOB W 6B411703 1.10
201 HANDLE KNOB SP・W 6H744801 1.10
202 HANDLE KNOB 6J653201 24.20
203 HANDLE KNOB BALL BEARING 6G469009 15.40
204 HANDLE KNOB COLOR 6G720001 2.20
205 HANDLE KNOB SC 6B679308 2.20
206 HANDLE KNOB CAP 6J683101 6.60
