[I.Works] Original Handle Knob [ponte] (1 piece)

Our Selling Price: US$42.35 [Regular Price: US$60.50]

View availability

Color:

Quantity:

Item Description

Features and Development Concept

“Ponte” means “bridge” in Italian.

The bridge method was adopted to “bridge” underwater information to the angler, resulting in a handle that combines sensitivity and lightness.

This finesse-compatible handle knob is processed using high-performance CNC machines to minimize core runout and backlash, providing a highly sensitive and smooth winding feel.

By using high-strength aluminum alloy for the material, as much material as possible is removed to reduce weight, minimizing the inertia force from the handle knob and enabling a super-sensitive design for delicate fishing.

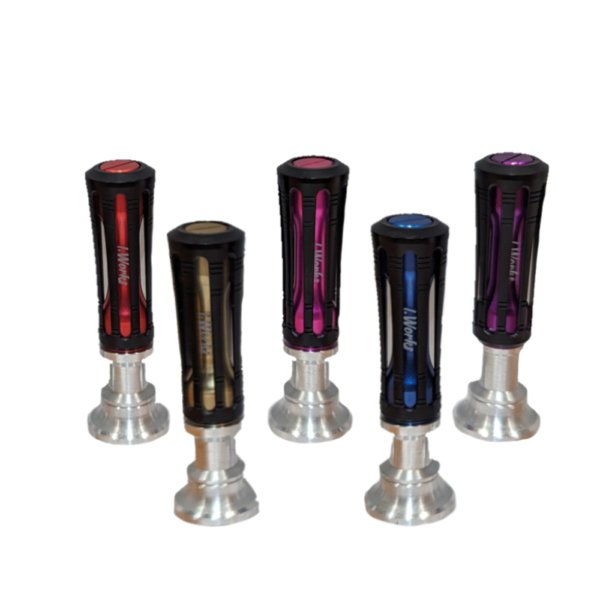

Color Lineup

Black × Gold

A subdued gold, close to champagne gold.

Black × Purple (Deep Purple)

This is a gorgeous purple with a dark metallic tone.

Black × Pink

Finished in a vivid pink, it stands out remarkably!

Black × Red

Finished in a vivid red, perfect for reels with red parts.

Black × Blue

Perfectly matches silver reels!

Compatibility

SHIMANO: Handle knob A type
DAIWA: Handle knob S type

*Compatible with spinning reels in the 1000-4000 size range and most baitcasting reels

*Not compatible with Abu Garcia

Included Items

Main body unit
End screw (same color as the liner)
Bearings: 2 stainless steel bearings
Large shims: 0.1, 0.2, 0.3mm, 2 pieces each, stainless steel
Small shims: 0.2, 0.5mm, 1 piece each, aluminum
Collar: 2.6mm collar, aluminum
Simple wrench for end screw, stainless steel

Items without quantity specified are provided in single units.

Included Items

- DAIWA Handle Setting
2.6mm collar / 0.2mm washer / BB “knob body” BB / small diameter 0.2mm washer / small diameter 0.5mm washer / end screw

- SHIMANO Handle Setting
BB “knob body” BB / 0.2mm washer / small diameter 0.5mm washer / end screw

- ZPI Handle Setting
2.6mm collar / BB “knob body” BB / small diameter 0.2mm washer / small diameter 0.5mm washer / end screw

- DLIVE Handle Setting
2.6mm collar / 0.2mm washer / 0.3mm washer / BB “knob body” / BB / 0.1mm washer / 0.2mm washer / 0.3mm washer / end screw

*Abbreviations: BB = Ball Bearing, W = Washer

Note: There are individual differences in handles and handle knobs. Please make fine adjustments according to the individual.

Specifications

Total Length: 32mm
Maximum Diameter: Φ13mm
Minimum Diameter: Φ9.9mm
Weight: Approximately 2.9g
Material: Aluminum alloy

All colors are anodized for saltwater resistance.
All products are domestically produced, “Made in Japan”!
