[SHIMANO] Genuine Spare Parts for 24 FLIEGEN Fine thread specification Product Code:047250 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 24 FLIEGEN Fine thread specification Product Code:047250 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Part Number:
Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

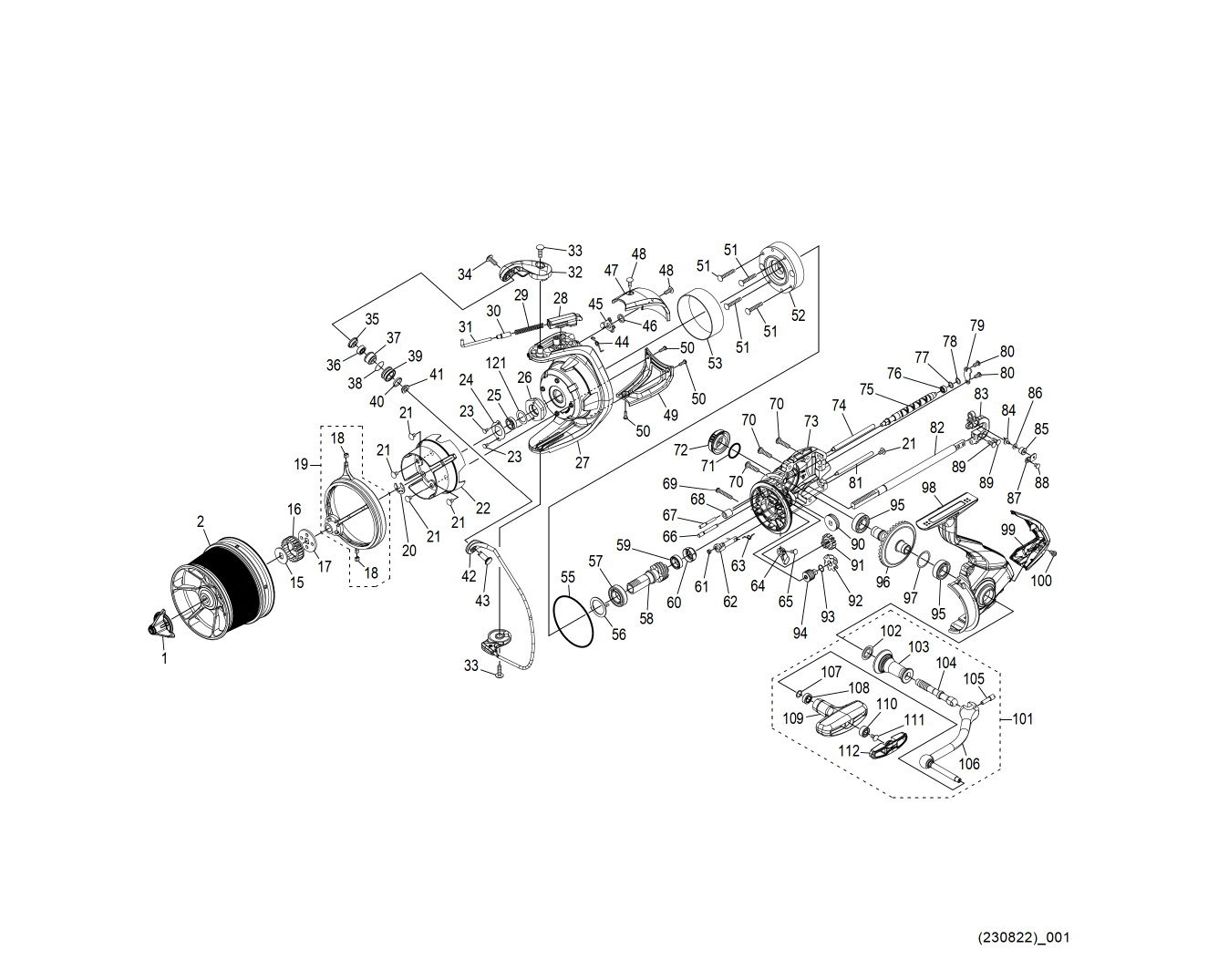

 Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 13K3F DRAG KNOB 13.75
2 145EZ SPOOL 111.65
15 100Y0 SPOOL WASHER 2.20
16 10TQC SPOOL HOLDER (A) 1.65
17 10J01 SPOOL HOLDER (B) 1.65
18 10MLW CLICK DEADENING RUBBER FOR PREVENTING THREAD DROP 1.10
19 13Y94 COLLAR SET FOR PREVENTING THREAD DROP 11.55
20 105RZ E-TYPE RETAINING RING 6 1.10
21 103L6 FIXING BOLT 1.10
22 10QVW ROTOR FLANGE 15.40
23 10S65 FIXING BOLT 1.10
24 13Y95 RETAINER 1.10
25 13Y96 ROTOR BEARING COLLAR 1.65
26 13Y97 ROTOR NUT 9.35
27 13Y98 ROTOR ASSEMBLY 38.50
28 13Y99 ARM SPRING GUIDE (B) 1.65
29 105LH ARM CAM SPRING 1.65
30 13Y9A ARM SPRING GUIDE (A) COLLAR 2.20
31 105YW ARM SPRING GUIDE (A) 1.65
32 13Y9B ARM CAM 9.35
33 10PVE FIXING BOLT 1.10
34 103HN FIXING BOLT 1.65
35 10RAR BEARING COLLAR 3.85
36 104VS BALL BEARING (4X8X3) 13.75
37 10RAQ BUSH 6.05
38 1015S O-RING 1.65
39 10RB6 LINE ROLLER 9.35
40 10RAS SPACER 2.20
41 10STM ARM FIXED SHAFT COLLAR 3.85
42 13Y9C BAIL ASSEMBLY 60.50
43 10STC ARM FIXING SHAFT 4.95
44 106PM INNER GERI LEVER SPRING 1.10
45 1085E INNER GERI LEVER 2.75
46 13Y9D WASHER 1.10
47 10QVV ARM CAM SPRING COVER 8.25
48 13JXK FIXING BOLT 1.10
49 10QVU BAIL MOUNTING COVER 8.25
50 13JXL FIXING BOLT 1.10
51 13Y9E FIXING BOLT 1.10
52 13Y9F ROLLER CLUTCH ASSEMBLY 17.05
53 106HS ROLLER CLUTCH RING 2.75
55 10MLS O-RING 2.75
56 106MU FRONT FLANGE BEARING WASHER 1.65
57 104PV BALL BEARING (10 X 19 X 5) 13.75
58 13YA8 PINION GEAR 30.80
59 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
60 10SF4 BUSH 1.65
61 106F8 STOPPER CAM RING 1.10
62 104YQ STOPPER CAM 3.85
63 105B2 CLICK SPRING 1.10
64 13Y9H STOPPER LEVER 6.05
65 10MPU FIXING BOLT 1.10
66 13Y9J INTERMEDIATE GEAR SHAFT 4.95
67 13Y9K WORM SHAFT GEAR FIXING SHAFT 2.75
68 106GV CROSS GEAR BUSH (FRONT) 3.85
69 10T0U FIXING BOLT 1.10
70 10PVQ FIXING BOLT 1.65
71 10LAF O-RING 1.65
72 13Y9L HANDLE SCREW CAP 6.60
73 13Y9M BODY WITHOUT LEGS 34.10
74 13Y9N SLIDER GUIDE (B) 4.95
75 13Y9P WORM SHAFT 9.35
76 10PDA BALL BEARING (3 X 6 X 2.5) 13.75
77 100XZ WASHER 2.20
78 10TK0 WASHER 1.65
79 13Y9Q WORM SHAFT COVER 1.65
80 103KS FIXING BOLT 1.10
81 13Y9R SLIDER GUIDE 6.05
82 145F2 MAIN SHAFT 20.90
83 13Y9T SLIDER 6.05
84 106V1 CROSS GEAR PIN 2.75
85 10JXP WORM SHAFT PIN COLLAR 3.85
86 10SP1 WASHER 6.05
87 13Y9U WORM SHAFT PIN PUSH PLATE 1.10
88 103LG FIXING BOLT 1.10
89 10ML9 FIXING BOLT 1.10
90 10RYK WORM SHAFT GEAR 6.05
91 10H4C INTERMEDIATE GEAR (C) 1.65
92 13MPN INTERMEDIATE GEAR (LARGE) 9.35
93 10160 BENDING WASHER 1.10
94 13YA9 INTERMEDIATE GEAR (SMALL) 8.80
95 10BGD BALL BEARING (9X17X5) 13.75
96 13YAA DRIVE GEAR 26.40
97 10HHM SLIDER WASHER (9X13X0.2) 1.10
98 14691 LID ASSEMBLY 105.05
99 13Y9Z BODY GUARD 12.10
100 10PS0 FIXING BOLT 1.65
101 1468E HANDLE ASSEMBLY 113.30
102 10PV5 SEAL 2.75
103 145F4 HANDLE SHAFT FLANGE 23.65
104 13MAY HANDLE SHAFT 9.35
105 10PV1 HANDLE SHAFT BOLT 2.75
106 1468F HANDLE SHANK ASSEMBLY 47.30
107 104FH WASHER 2.20
108 105BP BALL BEARING (5 X 9 X 3) 13.75
109 10SE7 HANDLE KNOB 8.80
110 10KX2 BALL BEARING (4X9X4) 13.75
111 103E9 FIXING BOLT 1.10
112 10SEA HANDLE CAP 4.95
121 145FK WASHER 1.10
MH01 144R3 NAMEPLATE ON BACK OF LEG 2.75
