[SHIMANO] Genuine Spare Parts for 24 OCEA CONQUEST CT 301HG LEFT Product code: 046727 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.108 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/phone/product/7950

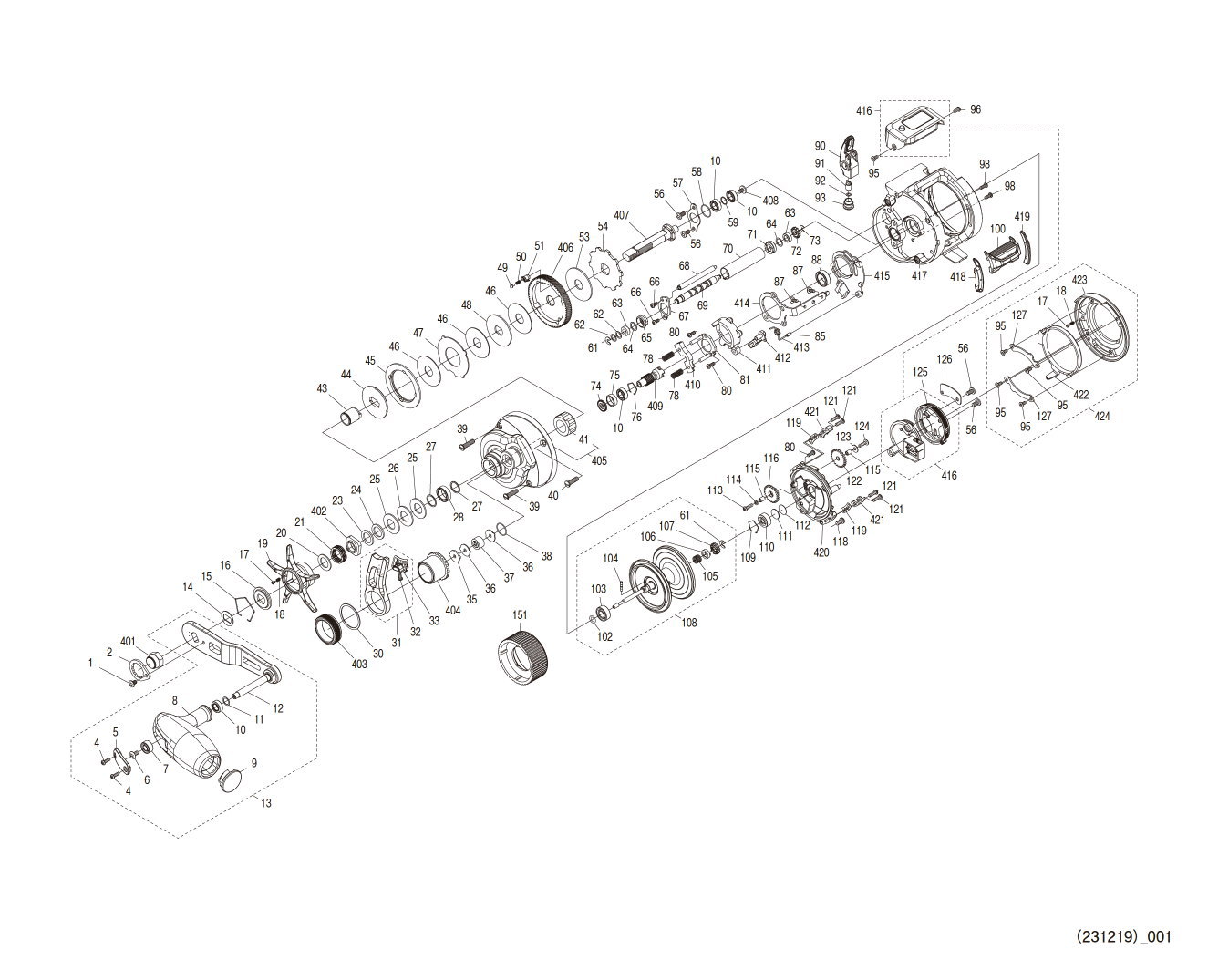

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* As for the "41 / ROLLER CLUTCH", "103 / BALL BEARING" and "104 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
1 | 10QG0 | FIXING BOLT | 1.10 |
2 | 145FB | RETAINER | 2.75 |
4 | 103NH | FIXING BOLT | 1.10 |
5 | 10TNM | HANDLE KNOB NAMEPLATE | 2.75 |
6 | 103E9 | FIXING BOLT | 1.10 |
7 | 10KX2 | BALL BEARING (4 X 9 X 4) | 13.75 |
8 | 142EQ | HANDLE KNOB | 44.00 |
9 | 145AW | HANDLE CAP | 1.65 |
10 | 105BP | BALL BEARING (5X9X3) | 13.75 |
11 | 104FH | WASHER | 2.20 |
12 | 146G0 | HANDLE SHAFT ASSEMBLY | 39.60 |
13 | 146G1 | HANDLE ASSEMBLY | 95.70 |
14 | 107QQ | HANDLE HOLDER WASHER | 1.65 |
15 | 10KXV | STAR DRAG CLICK PLATE RETAINER | 1.65 |
16 | 10J1Y | STAR DRAG CLICK PLATE | 1.65 |
17 | 10B27 | CLICK PIN | 1.65 |
18 | 10988 | CLICK SPRING | 1.65 |
19 | 13Z8A | STAR DRAG | 28.60 |
20 | 10QXM | WASHER | 1.10 |
21 | 10A71 | STAR DRAG SPRING | 2.75 |
23 | 10J1N | STAR DRAG SPACER | 1.65 |
24 | 13B0U | STAR DRAG SPACER | 1.10 |
25 | 10EW3 | DISK SPRING (DB8L) | 1.65 |
26 | 1052E | DOWEL SPRING (DB8H) | 1.65 |
27 | 13B0S | WASHER | 1.65 |
28 | 105BS | BALL BEARING (8X12X3.5) | 13.75 |
30 | 13PK8 | WASHER | 1.65 |
31 | 146G2 | FALL LEVER ASSEMBLY | 45.65 |
32 | 10LVD | FIXING BOLT | 1.10 |
33 | 13UEU | LEVER PROTECTOR | 1.65 |
35 | 13UES | MECHANICAL BRAKE WASHER | 1.10 |
36 | 13UET | MECHANICAL BRAKE WASHER | 3.85 |
37 | 13SVY | ROLLER CLUTCH | 16.50 |
38 | 109EB | O-RING S11.2 | 1.65 |
39 | 13MBW | FIXING BOLT | 3.85 |
40 | 10A6X | FIXING BOLT | 3.85 |
41 | 10F33 | ROLLER CLUTCH *Cannot be ordered | 22.55 |
43 | 14016 | ROLLER CLUTCH INNER TUBE | 13.75 |
44 | 10D54 | STAR DRAG PLATE | 3.85 |
45 | 10JAZ | DRAG CLICK SYLLATIC RATCHET | 1.65 |
46 | 10CHW | STAR DRAG WASHER | 6.05 |
47 | 10KQL | STAR DRAG WASHER | 1.65 |
48 | 10LB6 | STAR DRAG WASHER | 1.65 |
49 | 10C0S | DRAG CLICK PINE | 2.75 |
50 | 10J89 | DRAG CLICK SPRING | 1.65 |
51 | 13VG9 | DRAG SPRING HOLDER | 1.65 |
53 | 10CHZ | STAR DRAG WASHER | 2.75 |
54 | 10D6Y | STOPPER GEAR | 6.05 |
56 | 1055F | FIXING BOLT | 1.65 |
57 | 13VAE | DRIVE GEAR SHAFT FIXING PLATE | 1.65 |
58 | 10SZ4 | O-RING | 1.65 |
59 | 13Y0Z | WASHER | 1.10 |
61 | 105NK | E TYPE STOP RING 2.5 | 1.10 |
62 | 10J16 | WASHER | 1.10 |
63 | 10PXY | HANDLE GRIPPED BUSH (B) | 1.65 |
64 | 10G8J | WASHER | 1.10 |
65 | 10N9Q | WORM SHAFT RECEIVER (A) | 1.65 |
66 | 10LVF | FIXING BOLT | 1.10 |
67 | 13SCJ | WORM SHAFT STOPPER | 1.65 |
68 | 13SH2 | LEVEL WINDING GUIDE | 6.05 |
69 | 13S1A | WORM SHAFT | 9.35 |
70 | 145UA | LEVEL WINDING PIPE | 11.00 |
71 | 104SP | WORM SHAFT RECEIVING BRACKET (B) | 1.65 |
72 | 13S6P | WORM SHAFT GEAR (C) | 2.75 |
73 | 105NC | E TYPE STOP RING 2 | 1.10 |
74 | 13UEW | ROLLER CLUTCH SEAL | 3.85 |
75 | 13SVZ | BEARING SPACER | 1.10 |
76 | 1057X | STOPPER FOR EXTRACTING THE CLUTCH YOKE | 1.65 |
78 | 13T1T | CLUTCH YOKE SPRING | 1.10 |
80 | 101CN | FIXING BOLT | 1.65 |
81 | 13UEP | CLUTCH CAM PUSH PLATE | 3.85 |
85 | 108S5 | SPRING SPACER | 1.65 |
87 | 103C0 | FIXING BOLT | 1.10 |
88 | 10EX8 | BALL BEARING (8X12X3.5) | 13.75 |
90 | 10NYG | LEVEL WINDING ASSEMBLY | 34.10 |
91 | 10FFT | WORM SHAFT PIN | 3.85 |
92 | 10GD0 | WASHER | 1.10 |
93 | 10FJC | LEVEL WINDING RECEIVER | 6.05 |
95 | 10S65 | FIXING BOLT | 1.10 |
96 | 10U0S | FIXING BOLT | 1.10 |
98 | 10559 | FIXING BOLT | 1.65 |
100 | 13H6M | CLUTCH LEVER ASSEMBLY | 8.80 |
102 | 10TNF | O-RING | 1.65 |
103 | 105CA | BALL BEARING (5X11X4) *Cannot be ordered | 13.75 |
104 | 10MD0 | SPOOL CLUTCH PIN *Cannot be ordered | 1.65 |
105 | 10E20 | SPOOL SHAFT SPRING | 1.65 |
106 | 10MCY | SPOOL SHAFT CAM | 1.65 |
107 | 13SW5 | WORM SHAFT GEAR (A) | 2.75 |
108 | 146G6 | SPOOL ASSEMBLY | 79.20 |
109 | 10GEW | BEARING STOPPER | 1.10 |
110 | 105C1 | BALL BEARING (3X10X4) | 13.75 |
111 | 1057Q | SPOOL SHAFT CONTACT (B) | 1.10 |
112 | 13Y0Y | WASHER | 1.10 |
113 | 13JPR | FIXING BOLT | 1.10 |
114 | 10HVD | WASHER | 1.10 |
115 | 10TUH | WORM SHAFT GEAR (D) HOLDER | 2.75 |
116 | 13Z7H | WORM SHAFT GEAR (B) | 2.75 |
118 | 10LSL | FIXING BOLT | 1.10 |
119 | 13Z7M | WASHER | 1.10 |
121 | 142MD | FIXING BOLT | 1.10 |
122 | 13S6N | WORM SHAFT GEAR (D) | 2.75 |
123 | 10HYM | WASHER | 1.10 |
124 | 10TTU | FIXING BOLT | 1.10 |
125 | 13Z8F | BATTERY COVER | 4.40 |
126 | 13Z7L | FRAME B RECEIVER NAMEPLATE | 1.65 |
127 | 13Z7D | BODY B CAM LEVER PUSH PLATE | 1.10 |
151 | 145AV | BATTERY CAP WRENCH | 5.50 |
401 | 13V1Q | HANDLE FIXING NUT | 6.05 |
402 | 10A3W | STAR DRAG FIXING NUT | 3.85 |
403 | 13Z87 | LOCK RING | 13.75 |
404 | 13Z83 | MECHANICAL BRAKE KNOB | 17.05 |
405 | 146GD | BODY A SET | 138.05 |
406 | 13UYB | DRIVE GEAR | 28.05 |
407 | 13ULX | DRIVE GEAR SHAFT | 22.55 |
408 | 10PVU | FIXING BOLT | 1.65 |
409 | 100JY | PINION GEAR | 17.05 |
410 | 13T1U | CLUTCH YOKE | 1.65 |
411 | 10SKS | CLUTCH CAM | 2.75 |
412 | 105ZV | CLUTCH CLAW | 3.85 |
413 | 104CK | CLUTCH CLAW SPRING | 1.65 |
414 | 13TDN | CLUTCH PLATE | 4.95 |
415 | 13UER | BODY A SEAT | 1.10 |
416 | 146GC | COUNTER UNIT ASSEMBLY | 192.50 |
417 | 146GE | FRAME ASSEMBLY | 220.00 |
418 | 13TDS | CLUTCH LEVER HOLDER (B) | 1.65 |
419 | 13TDR | CLUTCH LEVER HOLDER (A) | 1.65 |
420 | 13Z7G | FRAME B RECEIVER | 30.80 |
421 | 1461X | FRAME B CAM RECEIVER | 1.65 |
422 | 13Z7C | BODY B CAM LEVER | 1.10 |
423 | 13Z7A | BODY B | 52.80 |
424 | 1473J | BODY B ASSEMBLY | 60.50 |
