[SHIMANO] Genuine Spare Parts for 24 STRADIC SW 8000HG Product Code: 047441 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
- We don't accept order cancellations, changes, or refunds after an order unless the products you ordered are not available because SHIMANO/DAIWA Japan doesn't accept our cancellations.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.17 / Spool Unit), you can purchase
it from the following link without waiting for weeks if it's in our stock
now.
https://www.hedgehog-studio.co.jp/phone/product/7951

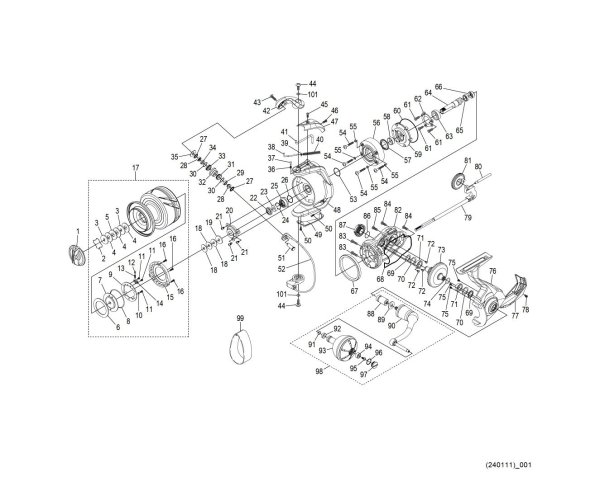

Reel Part's Schematic Diagram |
* Circled figures indicate bearings.
* Please note disassembly is at your own risk.
No. | S Part No. | Description | Price (USD) |
1 | 145VN | DRAG KNOB ASSEMBLY | 22.00 |
2 | 10B8Q | STOPPER SPRING | 1.65 |
3 | 10BC9 | OVAL WASHER | 1.65 |
4 | 10348 | DRAG WASHERS | 3.85 |
5 | 102Z9 | EAR WASHERS | 1.65 |
6 | 10C1B | DRAG WASHER (B) | 9.35 |
7 | 10E4A | DRAG PLATE (A) | 4.95 |
8 | 10HQK | DRAG PLATE SEAL | 1.65 |
9 | 10E3L | DRAG PLATE WASHER | 1.65 |
10 | 10PLT | DRAG PLATE WASHER | 1.65 |
11 | 10L67 | FIXING BOLT | 1.65 |
12 | 10E3H | SPOOL PIN | 1.65 |
13 | 10E3Z | SPOOL PIN SPRING | 1.65 |
14 | 10E45 | SPRING GUIDE | 1.10 |
15 | 10E3N | DRAG CLICK SYRATCHET | 1.65 |
16 | 10LV0 | FIXING BOLT | 1.10 |
17 | 145VP | SPOOL ASSEMBLY | 110.00 |
18 | 10BXX | WASHER | 1.65 |
19 | 10E41 | SPOOL RETAINER | 1.65 |
20 | 10E3R | RETAINER | 1.65 |
21 | 10QG5 | FIXING BOLT | 1.10 |
22 | 10E3Q | BEARING SEAL | 1.65 |
23 | 10E40 | ROTOR BEARING COLLAR | 1.65 |
24 | 1090A | O-RING | 1.65 |
25 | 100KF | ROTOR NUT | 3.85 |
26 | 108WT | O-RING | 1.65 |
27 | 100X7 | LINE ROLLER SEAL | 1.65 |
28 | 10E3W | LINE ROLLER COLLAR | 2.75 |
29 | 10K67 | BALL BEARING (5X8X2) | 9.35 |
30 | 1015S | O-RING | 1.65 |
31 | 10E4C | LINE ROLLER BUSHING | 1.65 |
32 | 10E43 | LINE ROLLER | 6.05 |
33 | 10E4D | LINE ROLLER BUSH (B) | 1.65 |
34 | 10E4E | LINE ROLLER COLLAR | 2.75 |
35 | 10E3S | LINE ROLLER RECEIVER | 1.65 |
36 | 10HEK | INNER GERI LEVER CLICK SPRING | 1.10 |
37 | 10HEA | INNER GERI LEVER CLICK PIN | 1.65 |
38 | 105LV | ARM SPRING GUIDE (A) | 1.65 |
39 | 10TYE | SPRING GUIDE (A) COLLAR | 1.65 |
40 | 105LL | ARM CAM SPRING | 1.65 |
41 | 106KN | INNER GERI LEVER | 2.75 |
42 | 145VU | ARM CAM | 6.60 |
43 | 13JXB | FIXING BOLT | 1.65 |
44 | 10TXJ | FIXING BOLT | 1.65 |
45 | 10LFK | FIXING BOLT | 1.10 |
46 | 10LFF | FIXING BOLT | 1.10 |
47 | 10880 | ARM CAM SPRING COVER | 6.05 |
48 | 145VT | ROTOR | 27.50 |
49 | 10MND | BALE MOUNTING BRACKET COVER | 6.05 |
50 | 10L1R | FIXING BOLT | 1.10 |
51 | 10Q3H | ARM FIXING SHAFT | 6.05 |
52 | 146XY | BAIL ASSEMBLY | 66.00 |
53 | 108WV | O-RING | 1.65 |
54 | 10A6S | FIXING BOLT | 1.65 |
55 | 108WW | O-RING | 1.65 |
56 | 10E3J | ROLLER CLUTCH SEAL COVER | 2.75 |
57 | 10MH2 | ROLLER CLUTCH SEAL | 2.75 |
58 | 10K7S | ROTOR RING | 3.85 |
59 | 10TCX | ROLLER CLUTCH ASSEMBLY | 22.55 |
60 | 108WX | O-RING | 2.75 |
61 | 100WY | FIXING BOLT | 1.65 |
62 | 10E49 | BEARING PUSH PLATE | 1.65 |
63 | 10BGA | BALL BEARING (9X17X5) | 7.15 |
64 | 10E3U | PINION GEAR | 11.55 |
65 | 10S63 | BALL BEARING (7X11X3) | 7.15 |
66 | 10E3P | PINION GEAR BUSH (REAR) | 1.65 |
67 | 104G8 | FRICTION RING | 1.65 |
68 | 10E3M | BODY SEAL | 3.85 |
69 | 10TGJ | BEARING SEAL | 1.65 |
70 | 10BGF | WASHER | 1.65 |
71 | 104PT | BALL BEARING (8 X 14 X 4) | 13.75 |
72 | 10LHN | FIXING BOLT | 1.10 |
73 | 10E48 | DRIVE GEAR ASSEMBLY | 22.55 |
74 | 10DKJ | BEARING WASHER | 2.20 |
75 | 1055H | FIXING BOLT | 1.65 |
76 | 146XZ | COVER ASSEMBLY | 77.00 |
77 | 1002R | BODY GUARD | 6.05 |
78 | 10LHR | FIXING BOLT | 1.10 |
79 | 100LS | MAIN SHAFT ASSEMBLY | 22.55 |
80 | 10E3V | SLIDER GUIDE | 2.75 |
81 | 10E46 | SLIDER GEAR | 3.85 |
82 | 146Y0 | BODY ASSEMBLY | 77.00 |
83 | 10L9U | FIXING BOLT | 1.10 |
84 | 10SGK | FIXING BOLT | 1.65 |
85 | 10E47 | FIXING BOLT | 1.65 |
86 | 108WH | O-RING | 1.65 |
87 | 101HW | HANDLE SCREW CAP | 3.85 |
88 | 10E3T | HANDLE SHAFT FLANGE (B) | 6.05 |
89 | 104NW | WASHER | 1.65 |
90 | 10TCS | HANDLE SHAFT ASSEMBLY | 34.10 |
91 | 104FH | WASHER | 2.20 |
92 | 104UJ | HANDLE KNOB BUSH (B) | 1.65 |
93 | 146Y1 | HANDLE KNOB ASSEMBLY | 52.80 |
94 | 10KX2 | BALL BEARING (4 X 9 X 4) | 13.75 |
95 | 10LFA | FIXING BOLT | 1.10 |
96 | 10LAB | O-RING | 1.10 |
97 | 13MBG | HANDLE CAP | 6.05 |
98 | 145YH | HANDLE ASSEMBLY | 107.80 |
99 | 10P3X | THREAD STOPPER BELT | 2.75 |
101 | 10G4W | WASHER | 1.10 |
MH01 | 145CY | NAMEPLATE ON BACK OF LEG | 1.65 |
