[SHIMANO] Genuine Spare Parts for 24 CALCUTTA CONQUEST SHALLOW EDITION 31HG LEFT Product code: 046741 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

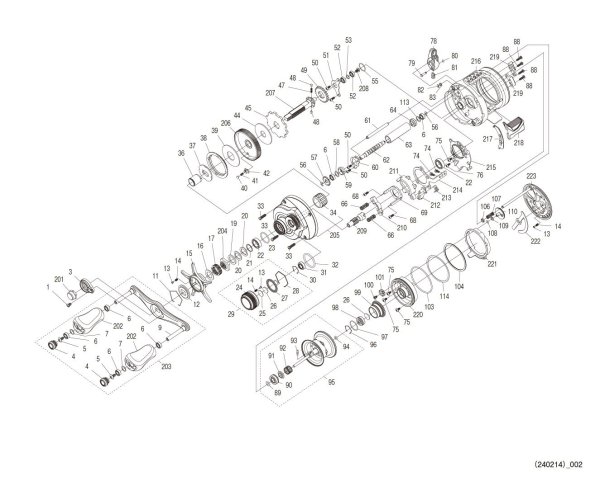

　Reel Part's Schematic Diagram

* Circled figures indicate bearings.
* As for the "34 / ROLLER CLUTCH", "90 / BALL BEARING", "93 /SPOOL CLUTCH PIN", "BRKS / BRAKE SHOE S" and "BST1 / BRAKE SHAFT", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No.	S Part No.	Description	Price (USD)
1	10CZ5	FIXING BOLT	2.75
3	10T7R	RETAINER	1.10
4	145V6	HANDLE CAP	8.80
5	103E9	FIXING BOLT	1.10
6	104VX	BALL BEARING (4X7X2.5)	13.75
7	104FH	WASHER	2.20
9	145UC	HANDLE SHAFT ASSEMBLY	44.00
11	10KXV	STAR DRAG CLICK PLATE RETAINER	1.65
12	10J1Y	STAR DRAG CLICK PLATE	1.65
13	10B27	CLICK PIN	1.65
14	10988	CLICK SPRING	1.65
15	145V5	STAR DRAG	22.00
16	100CU	WASHER	1.10
17	10A71	STAR DRAG SPRING	2.75
19	10J1N	STAR DRAG SPACER	1.65
20	10D60	MAIN GEAR WASHER (C)	1.65
21	105PW	STAR DRAG BEARING WASHER	1.10
22	10EX8	BALL BEARING (8 X 12 X 3.5)	13.75
23	1027V	O-RING	1.65
24	145V4	MECHANICAL BRAKE KNOB	20.35
25	10896	MECHANICAL BRAKE WASHER	1.10
26	1057S	SPOOL SHAFT CONTACT (B)	1.10
27	10L2F	MECHANICAL BRAKE KNOB CLICK PLATE	2.75
28	10L6X	MECHANICAL BRAKE KNOB CLICK STOP RING	2.75
29	145UE	MECHANICAL BRAKE KNOB ASSEMBLY	36.85
30	1057X	EXTRACTION STOP	1.65
31	105BP	BALL BEARING (5 X 9 X 3)	13.75
32	108W8	O-RING S-16	1.65
33	10C3N	FIXING BOLT	2.75
34	1005E	ROLLER CLUTCH *Cannot be ordered	17.05
36	10BN3	ROLLER CLUTCH INNER TUBE	6.05
37	10SNJ	STAR DRAG PLATE	7.15
38	10E9B	DRAG CLICK SYRATCHET	3.85
39	1027W	STAR DRAG WASHER	9.35
40	10C0T	DRAG CLICK PIN	2.75
41	10J8A	DRAG SPRING HOLDER	1.65
42	10J87	DRAG SPRING HOLDER	1.65
44	10CHZ	STAR DRAG WASHER	2.75
45	10RLS	STOPPER GEAR	3.85
47	10JDX	WORM SHAFT GEAR SPRING	1.65
48	10HJF	WORM SHAFT GEAR PINS	1.65
49	10057	WORM SHAFT GEAR	2.75
50	10LVF	FIXING BOLT	1.10
51	100GK	DRIVE GEAR SHAFT FIXING PLATE	1.10
52	10SAM	BALL BEARING (4X7X2)	13.75
53	13PKS	WASHER	1.10
55	10SZ4	O-RING	1.65
56	105NC	E TYPE STOP RING 2	1.10
57	10FNX	WORM SHAFT GEAR	2.75
58	10G8F	WORM SHAFT GEAR	1.10
59	10N9Q	WORM SHAFT HOLDER (A)	1.65
60	10T7S	WORM SHAFT EXTRACTION STOP	1.10
61	13Y89	LEVEL WINDING GUIDE	3.85
62	100GT	WORM SHAFT	5.50
63	145V3	LEVEL WINDING PIPE	7.70
64	104SP	WORM SHAFT HOLDER (B)	1.65
66	104BU	CLUTCH YOKE SPRING	1.10
68	101CN	FIXING BOLT	1.65
69	10F42	CLUTCH CAM PUSH PLATE	3.85
74	10559	FIXING BOLT	1.65
75	100BD	FIXING BOLT	1.65
76	10MPS	FIXING BOLT	1.65
78	10TED	LEVEL WINDING ASSEMBLY	51.70
79	100GC	WORM SHAFT PIN STOPPER	1.10
80	10908	O-RING	1.65
81	100GJ	WORM SHAFT PIN	4.40
82	105NB	E TYPE RETAINING RING 1.5	1.10
83	10GA7	WASHER	1.10
88	10LVP	FIXING BOLT	2.75
89	10TNF	O-RING	1.65
90	1005D	BALL BEARING (5X11X4) *Cannot be ordered	13.75
91	10SWZ	BUSH	1.65
92	10SJF	BEARING PUSH SPRING	1.65
93	10MD0	SPOOL CLUTCH PIN *Cannot be ordered	1.65
94	10EZ7	O-RING	1.10
95	145UH	SPOOL ASSEMBLY	121.00
96	10GEW	BEARING PULL-OUT STOPPER	1.10
97	10LA8	O-RING	1.65
98	10S37	BALL BEARING (3 X 10 X 4)	13.75
99	100N4	BRAKE PIPE GEAR ASSEMBLY	13.75
100	10PRT	FIXING BOLT	1.10
101	10BGM	BR KNOB GEAR	1.65
103	1006P	O-RING	1.65
104	10T02	WASHER	2.75
106	10RLZ	BODY B SHAFT GUIDE	1.65
107	10T7F	DAMPER SPRING	1.10
108	10FMT	O-RING	1.10
109	143LB	WASHER	1.10
110	145UJ	BRAKE DIAL ASSEMBLY	31.35
113	10G8G	WASHER	1.10
114	145UU	WASHER	1.10
201	145V7	HANDLE FIXING NUT	11.00
202	13MB9	HANDLE KNOB	11.55
203	145UL	HANDLE ASSEMBLY	101.20
204	10A0C	STAR DRAG FIXING NUT	2.75
205	145UM	BODY A SET	132.00
206	13UWW	DRIVE GEAR	28.05
207	13ULL	DRIVE GEAR SHAFT	13.20
208	10DR5	FIXING BOLT	1.10
209	13SPG	PINION GEAR	22.00
210	1046U	CLUTCH YOKE	1.65
211	10SKS	CLUTCH CAM	2.75
212	105ZV	CLUTCH CLAW	3.85
213	10N1V	CLUTCH CLAW SPRING	1.65
214	13TD2	CLUTCH PLATE	2.20
215	13UEF	BODY A SEAT	1.65
216	145UN	FRAME ASSEMBLY	165.00
217	13TD3	CLUTCH LEVER HOLDER	1.10
218	10282	CLUTCH LEVER ASSEMBLY	7.70
219	13S0Q	FRAME B CLUTCH CAM	1.10
220	13FZC	FRAME B CAMS	33.00
221	13RNF	BODY B CAM LEVER	1.10
222	13RGN	BODY B SEAL	1.10
223	145UP	BODY B	77.00
*F01	13WNH	REEL BAG (ACCESSORY)	11.00
BRKS	10RC4	BRAKE SHOE S *Cannot be ordered	1.10
BST1	13SFU	BRAKE SHAFT *Cannot be ordered	1.10
