  3. > [SHIMANO] 24 Metanium DC Genuine Parts List - Schematic Diagram & Parts Diagram
  4. > [SHIMANO] Genuine Spare Parts for 24 Metanium DC 70 Product code: 046604 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 24 Metanium DC 70 Product code: 046604 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 24 Metanium DC 70 Product code: 046604 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.86 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/7620

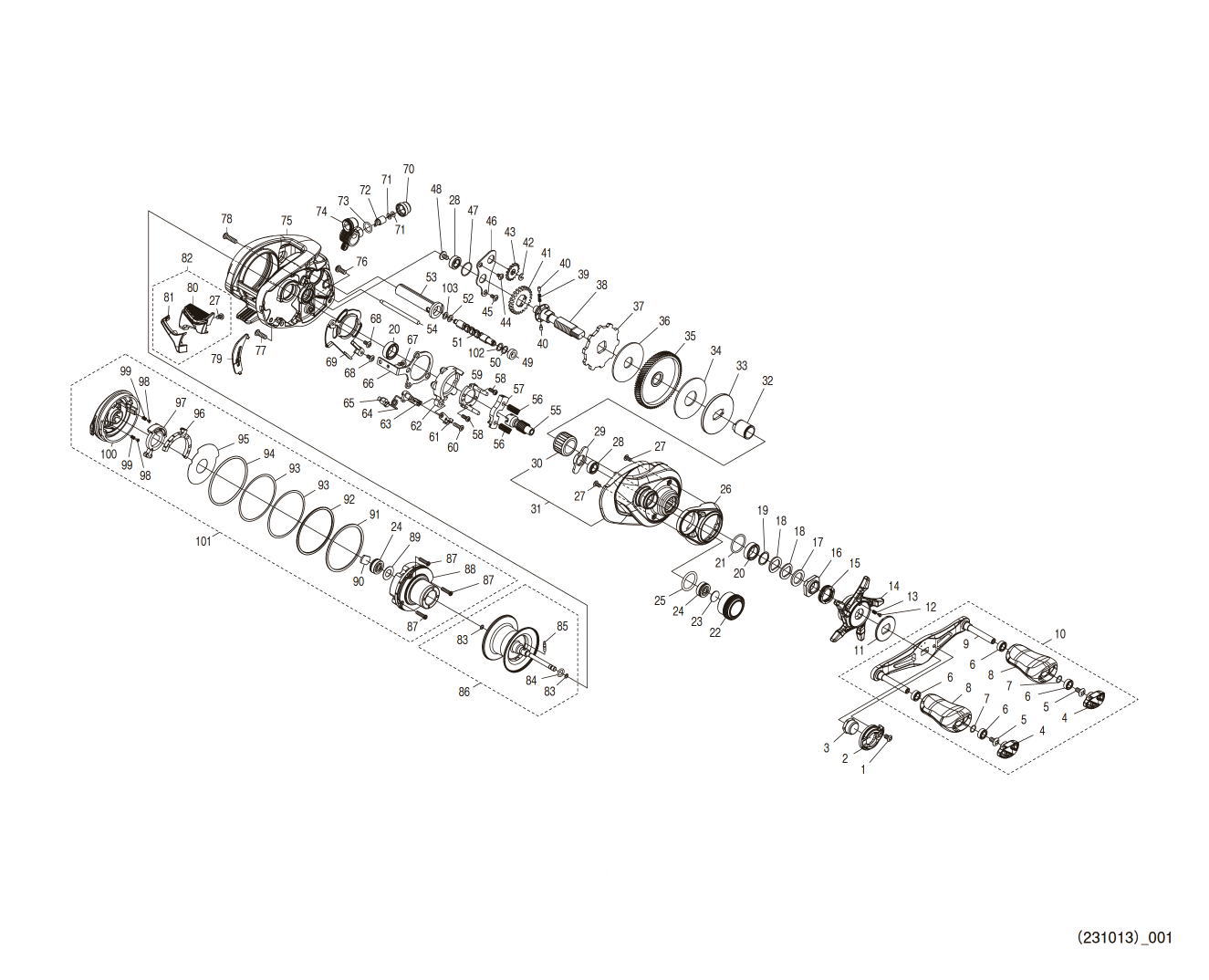

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* As for the "30 / ROLLER CLUTCH" and "85 / SPOOL CLUTCH PIN", they don't sell separately.
These parts are supposed to be provided when customers send the reel to have it repaired or overhauled.
So we cannot provide you with the products unfortunately.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 10DN7 FIXING BOLT 1.65
2 1017T RETAINER 3.85
3 10SSU HANDLE FIXING NUT 6.05
4 10RLX HANDLE CAP 6.05
5 10DQN FIXING BOLT 1.65
6 104VX BALL BEARING (4X7X2.5) 13.75
7 104FH WASHER 2.20
8 10RMU HANDLE KNOB 11.55
9 1469J HANDLE SHAFT ASSEMBLY 34.10
10 1469K HANDLE ASSEMBLY 94.60
11 101JC STAR-DRAG CLICK PLATE 1.65
12 10B27 CLICK PIN 1.65
13 10988 CLICK SPRING 1.65
14 144P8 STAR DRAG 11.55
15 10A78 STAR DRAG SPRING 2.75
16 10A0B STAR DRAG FIXING NUT 2.75
17 10J1N STAR DRAG SPACER 1.65
18 10D60 MAIN GEAR WASHER (C) 1.65
19 105PW STAR DRAG BEARING WASHER 1.10
20 10EX8 BALL BEARING (8 X 12 X 3.5) 13.75
21 1027V O-RING 1.65
22 144P5 MECHANICAL BRAKE KNOB 9.35
23 1057Q SPOOL SHAFT CONTACT TALLY (B) 1.10
24 10S37 BALL BEARING (3 X 10 X 4) 13.75
25 10LA9 O-RING 1.65
26 13YYW BODY A NAMEPLATE 9.35
27 1055J FIXING BOLT 1.65
28 105BP BALL BEARING (5X9X3) 13.75
29 144NV STOPPER 1.10
30 1005E ROLLER CLUTCH *Cannot be ordered 17.05
31 1469L BODY A ASSEMBLY 110.00
32 10BN3 ROLLER CLUTCH INNER TUBE 6.05
33 10RW3 STAR DRAG PLATE 6.05
34 10RWJ STAR DRAG WASHER 9.35
35 13UYD DRIVE GEAR 24.75
36 10CJ1 STAR DRAG WASHER 3.85
37 1021K STOPPER GEAR 6.05
38 10RW0 DRIVE GEAR SHAFT 22.55
39 10JDX SPRING FOR WORM SHAFT GEAR 1.65
40 10HJF WORM SHAFT GEAR PINS 1.65
41 10057 WORM SHAFT GEAR 2.75
42 105NC E TYPE STOPPER RING 2 1.10
43 10FNX WORM SHAFT GEAR 2.75
44 10MPF FIXING BOLT 1.10
45 10MT2 FIXING BOLT 1.10
46 1005S DRIVE GEAR SHAFT FIXING PLATE 2.75
47 10SZ4 O-RING 1.65
48 10PVT FIXING BOLT 1.65
49 10PXY HANDLE GRIPPED BUSH (B) 1.65
50 10GFG WASHER 1.10
51 10EET WORM SHAFT 2.75
52 100T8 WASHER 1.10
53 1005Z LEVEL-WIND PIPE 1.65
54 1006J LEVEL-WIND GUIDE 3.85
55 10068 PINION GEAR 17.05
56 144NZ CLUTCH YOKE SPRING 1.10
57 13T1S CLUTCH YOKE 1.65
58 10LVH CLUTCH CAM FIXING BOLT 1.10
59 144P7 CLUTCH CAM PUSH PLATE 9.90
60 10559 CLUTCH CAM FIXING BOLT 1.65
61 10RWM CLUTCH CLAW (B) 1.65
62 10SX6 CLUTCH CAM 2.75
63 10RVS CLUTCH CLAW (A) 1.65
64 10N1Z CLUTCH CLAW SPRING 1.10
65 10RWD CLUTCH SPRING HOLDER 1.65
66 10RW8 CLUTCH PLATE 4.95
67 103C0 FIXING BOLT 1.10
68 100BD FIXING BOLT 1.65
69 10RW7 BODY A SHEET 3.85
70 10FJB LEVEL WINDING RECEIVER 1.65
71 10CFW ADJUSTMENT WASHER SET 1.10
72 100BT WORM SHAFT PIN 2.75
73 108WQ O-RING 1.65
74 1469M LEVEL WINDING ASSEMBLY 39.60
75 1469N FRAME ASSEMBLY 132.00
76 10LZD FIXING BOLT 1.65
77 101GQ FIXING BOLT 1.65
78 103LN FIXING BOLT 1.65
79 1000Z CLUTCH LEVER RECEIVER (B) 1.65
80 10RLD CLUTCH LEVER 4.95
81 10RNZ CLUTCH LEVER NAMEPLATE 6.05
82 100J3 CLUTCH LEVER ASSEMBLY 11.55
83 10E7H O-RING 1.10
84 10TNF O-RING 1.65
85 10MD0 SPOOL CLUTCH PIN *Cannot be ordered 1.65
86 1469P SPOOL ASSEMBLY 143.00
87 141R6 FIXING BOLT 1.10
88 144NU DC ASSY 121.00
89 10B94 BEARING SEAL 1.65
90 144NQ SPOOL SHAFT CONTACT B 1.10
91 144NM WASHER 2.20
92 144NN WASHER 2.20
93 1024A O-RING 1.65
94 144NL O-RING 1.10
95 144NR BODY B NAMEPLATE 1.10
96 1469Q BRAKE DIAL ASSEMBLY 16.50
97 1469R DC DIAL ASSEMBLY 16.50
98 144NT CLICK PIN 1.10
99 10T6Z CLICK SPRING 1.10
100 13YYT MAIN UNIT B 17.60
101 1469S BODY B ASSEMBLY 198.00
102 10R3Z WASHER 1.10
103 10GFJ WASHER 1.10
