[SHIMANO] Genuine Spare Parts for 24 TWIN POWER 2500SHG Product Code: 046796 **Back-order (Shipping in 3-4 weeks after receiving order)

[SHIMANO] Genuine Spare Parts for 24 TWIN POWER 2500SHG Product Code: 046796 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.2 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/7622

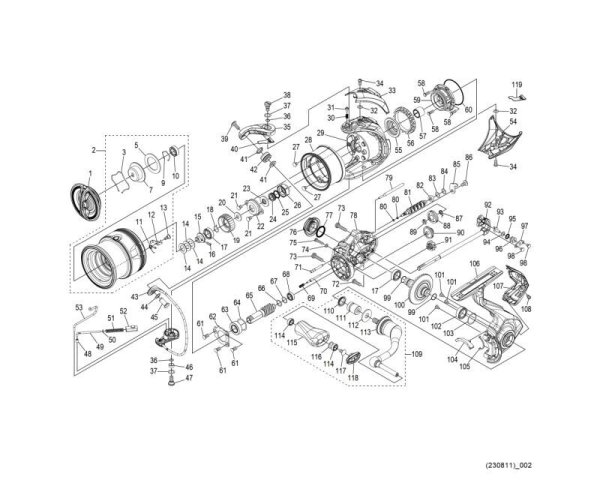

　Reel Part's Schematic Diagram


* Circled figures indicate bearings.
* Please note disassembly is at your own risk.

No. S Part No. Description Price (USD)
1 145NP DRAG KNOB ASSEMBLY 30.80
2 145Q6 SPOOL ASSEMBLY 132.00
3 10B6F STOPPER SPRING 1.65
5 10R5H DRAG WASHER (A) 2.20
7 10BCB OVAL WASHER 6.05
9 10GEW BEARING RETAINING CLIP 1.10
10 104JT BALL BEARING (6X 10X 3) 13.75
11 10BQE SPOOL PIN SPRING 1.65
12 10TNV SPOOL PIN 1.65
13 10A6F FIX ING BOLT 1.65
14 10DHG SPOOL WASHER 2.20
15 10DKF MAIN SHAFT BEARING GUIDE 6.05
16 10PN2 SET SCREW 1.65
17 104PP BALL BEARING (7 X 11 X 3) 13.75
18 107V2 RATCHET SPRING 1.65
19 10SYS DRAG CLICK RATCHET 2.75
20 103PE SPOOL HOLDER 1.65
21 103LB FIX ING BOLT 1.10
22 1076N RETAINER 2.75
23 1004T ROTOR BEARING SEAL 3.85
24 13Z0W MAIN SHAFT COLLAR 4.40
25 108WQ O-RING 1.65
26 13Z0V ROTOR NUT 6.05
27 101C6 FIX ING BOLT 1.10
28 10R4P ROTOR FLANGE 9.35
29 145NR ROTOR ASSEMBLY 104.50
30 10CGZ CLICK SPRING 1.65
31 106UX CLICK PIN 1.65
32 105A2 WASHER 1.10
33 10R4X ARM CAM SPRING COVER 13.20
34 10RP9 FIX ING BOLT 1.65
35 13Z0U ARM CAM 8.25
36 10192 ARM CAM ADJUSTMENT WASHER 1.10
37 10G6C WASHER 1.10
38 13Z1M FIX ING BOLT 6.05
39 10K40 FIX ING BOLT 2.75
40 10R52 ARM CAM FIN 1.10
41 1020L LINE ROLLER BEARING COLLAR 2.75
42 101KE LINE ROLLER (WITH BEARING) ASSEMBLY 34.10
43 145NS BAIL ASSEMBLY 46.20
44 1002S ARM FIX ED SHAFT WASHER 1.10
45 13ZML ARM FIX ING SHAFT 6.05
46 101D0 BALE MOUNTING KECAM COLLAR 1.65
47 13Z1K FIX ING BOLT 6.05
48 10DKC ARM SPRING GUIDE (A) COLLAR BUSH 1.65
49 10SAN ARM SPRING GUIDE (A) 3.85
50 101D9 ARM SPRING GUIDE (A) COLLAR 1.65
51 10R2P ARM CAM SPRING 1.65
52 10R2E ARM CAM SPRING GUIDE (B) 2.75
53 1463K INNER GERI LEVER 2.75
54 10R4Z BAIL MOUNTING COVER 17.05
55 101D5 ROTOR COLLAR 9.35
56 10DK7 FRICTION RING 3.85
57 10DJY ROLLER CLUTCH INNER 3.85
58 101LH FIX ING BOLT 1.10
59 10S2L ROLLER CLUTCH ASSEMBLY 12.65
60 10DKD ROLLER CLUTCH GUIDE SEAL 1.65
61 10TGX FIX ING BOLT 1.10
62 10R53 BEARING PUSH PLATE 2.75
63 10R77 BALL BEARING (7X 13X 4) 7.15
64 10RYR WASHER 1.10
65 10R5J PINION GEAR 21.45
66 10DJ1 WASHER 1.65
67 143BL SPACER 1.10
68 10RKR BALL BEARING (5 X 8 X 2.5) 7.15
69 10R5T INTERMEDIATE GEAR SPRING 1.10
70 10R5K INTERMEDIATE GEAR SHAFT 2.75
71 13X DV INTERMEDIATE GEAR SHAFT (C) 2.75
72 10M2A FIX ING BOLT 1.10
73 100YN FIX ING BOLT 1.65
74 10GD4 WASHER 1.10
75 1017M FIX ING BOLT 1.10
76 13Z13 HANDLE SCREW CAP 6.60
77 108WH O-RING 1.65
78 13Z0Z BODY 22.55
79 10R4U SLIDER GUIDE (A) 3.85
80 10092 O-RING 1.65
81 10R55 WORM SHAFT 11.55
82 10TH6 BUSH 3.85
83 100X Z WASHER 2.20
84 10TK0 WASHER 1.65
85 13X DY WORM SHAFT COVER 1.65
86 10QG5 FIX ING BOLT 1.10
87 10R5N WORM SHAFT GEAR SPRING 2.20
88 10R5L WORM SHAFT GEAR 9.35
89 13Z11 BUSH 2.75
90 10R4Q INTERMEDIATE GEAR (C) 8.25
91 13YJ8 INTERMEDIATE GEAR (L) 8.25
92 13X DZ MAIN SHAFT ASSEMBLY 30.80
93 106VL WORM SHAFT PIN 4.95
94 100CW WASHER 2.20
95 108W9 O-RING (3X 5) 1.65
96 101BY WORM SHAFT PIN COLLAR 2.75
97 10HAG WORM SHAFT PIN PUSH PLATE 1.65
98 10R4V FIX ING BOLT 1.65
99 1009S O-RING 1.65
100 13X E7 DRIVE GEAR 30.80
101 1055G FIX ING BOLT 1.65
102 10EX 8 BALL BEARING (8X 12X 3.5) 13.75
103 1022D WASHER 2.75
104 10R4Y INTERNAL GERI CONTACT 1.65
105 10DKA FOOT FLANGE SEAL 2.75
106 145Q7 FOOT ASSEMBLY 78.10
107 13ZMK BODY GUARD 11.55
108 10EF0 FIX ING BOLT 1.65
109 145PP HANDLE ASSEMBLY 88.00
110 10PX U HANDLE SHAFT SEAL 2.75
111 10TJW HANDLE SHAFT FLANGE (B) 9.35
112 10FJ6 HANDLE WASHER 1.65
113 145PQ HANDLE SHANK ASSEMBLY 58.30
114 104VX BALL BEARING (4 X 7 X 2.5) 13.75
115 1004X HANDLE KNOB 11.55
116 104FH HANDLE WASHER 2.20
117 103E9 FIX ING BOLT 1.10
118 10SML HANDLE CAP 4.95
119 10TD4 ARM CAM FIN (ACCESSORY) 1.10
MH01 13Z1B NAMEPLATE ON BACK OF LEG 2.75
