[DAIWA] Genuine Spare Parts for 16 TOURNAMENT SURF 45 LG 05PE Product code: 00059386 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 16 TOURNAMENT SURF 45 LG 05PE Product code: 00059386 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

Part Number:
Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

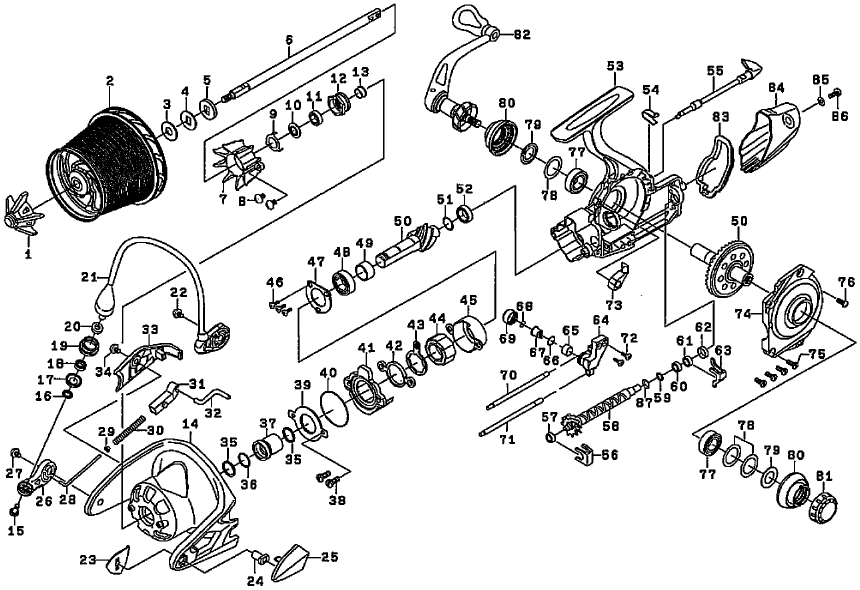

 Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 SPOOL KNOB 139551 12.10
2 SPOOL 128A34 125.40
3 SPOOL W (A) 190350 1.10
4 SPOOL W (B) 190753 1.10
5 MAIN SHAFT W 190853 1.10
6 MAIN SHAFT 171389 29.70
7 ROTOR COVER 108947 8.80
8 ROTOR COVER SC 10A776 2.20
9 ROTOR NUT PLATE 145031 2.20
10 ROTOR NUT BEARING PACKING 185141 2.20
11 ROTOR NUT BALL BEARING 10E257 8.80
12 ROTOR NUT 140214 7.70
13 ROTOR NUT COLOR 110522 3.30
14 ROTOR *Cannot be ordered 188139 63.80
15 ROLLER SC 187090 2.20
16 ROLLER COLLAR 110094 2.20
17 ROLLER BEARING PACKING 185215 2.20
18 ROLLER BALL BEARINGS *Cannot be ordered 10E391 45.10
19 LINE ROLLER *Cannot be ordered 179154 46.20
20 ROLLER COLLAR 191062 3.30
21 VEIL *Cannot be ordered 164829 80.30
22 VEIL HOLDER SC 10A367 2.20
23 BALE HOLDER PLATE 160624 2.20
24 BALE HOLDER NUT 140215 3.30
25 BALE HOLDER COVER 108945 15.40
26 ARM LEVER 101398 12.10
27 ARM LEVER SC 102013 2.20
28 ARM LEVER SP SHAFT *Cannot be ordered 122329 2.20
29 ARM LEVER SP COLOR 110798 3.30
30 ARM LEVER SP 133789 2.20
31 VEIL LOCK SHAFT COLLAR 110799 2.20
32 BAIL LOCK SHAFT 122330 7.70
33 ARM LEVER COVER 108946 11.00
34 ARM LEVER COVER SC 10A171 2.20
35 CLUTCH RING COLOR 110998 3.30
36 CLUTCH RING O RING 10J124 1.10
37 CLUTCH RING 110975 18.70
38 MAG SHIELD PLATE SC 10A504 4.40
39 MUG SHIELD PLATE *Cannot be ordered 114098 17.60
40 MAG SHIELD PLATE O RING 10J123 2.20
41 ONE-WAY CLUTCH CAP (A) 199947 9.90
42 ONE-WAY CLUTCH PLATE (A) 160627 2.20
43 ONE-WAY CLUTCH PLATE (B) 160293 2.20
44 ONE WAY CLUTCH *Cannot be ordered 114045 26.40
45 ONE-WAY CLUTCH CAP (B) 199773 2.20
46 PINION BEARING PLATE SC 10A671 2.20
47 PINION BEARING PLATE 160626 2.20
48 PINION BALL BEARING (A) 10E363 15.40
49 PINION BEARING (A) COLLAR 110801 3.30
50 PINION + DRIVE GEAR SET *Cannot be ordered 138878 77.00
51 PINION BEARING (B) W 190797 1.10
52 PINION BALL BEARING (B) 10E262 15.40
53 BODY *Cannot be ordered 166285 140.80
54 STOPPER CAM SP 133790 2.20
55 STOPPER LEVER 196415 12.10
56 WORM SHAFT RETAINER (A) 182235 2.20
57 WORM SHAFT BALL BEARING 10E313 15.40
58 WORM SHAFT 103254 26.40
59 WORM SHAFT W (A) 190196 1.10
60 WORM SHAFT BALL BEARING 10E313 15.40
61 WORM SHAFT BALL BEARING 10E313 15.40
62 WORM SHAFT BEARING COLLAR 110520 3.30
63 WORM SHAFT RETAINER (B) 182236 3.30
64 OSCILLATING SLIDER 107165 20.90
65 POLE HOLDER COLOR 110802 3.30
66 PAUL W (A) 190854 1.10
67 POLE 195043 11.00
68 PAUL W (B) 190754 1.10
69 POLE HOLDER NUT 140216 4.40
70 OSCILLATING POST (A) 155284 8.80
71 OSCILLATING POST (B) 155285 8.80
72 OSCILLATING SLIDER SC 10A039 2.20
73 STOPPER 127224 3.30
74 BODY COVER 168368 108.90
75 BODY COVER SC (A) 10A710 3.30
76 BODY COVER SC (B) 10A675 2.20
77 DRIVE BALL BEARING 10E263 8.80
78 DRIVE BEARING W 190495 1.10
79 DRIVE BEARING PACKING 185132 2.20
80 DRIVE BEARING COVER 168362 15.40
81 HANDLE CAP 151157 6.60
82 HANDLE 1H2162 133.10
83 REAR CAP GASKET 185143 4.40
84 REAR CAP 116599 22.00
85 REAR CAP W 190627 1.10
86 REAR CAP SC 10A692 2.20
87 WORM SHAFT W (B) 190983 1.10
200 HANDLE KNOB W 190109 1.10
201 HANDLE KNOB BALL BEARING 10E313 15.40
202 HANDLE KNOB 1H1834 11.00
203 HANDLE KNOB SC 10A333 2.20
204 HANDLE KNOB CAP 116660 2.20
300 SPOOL BAND 199831 15.40
