[DAIWA] Genuine Spare Parts for 16 TOURNAMENT SURF 45 05PE Product code: 00059385 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.66 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.

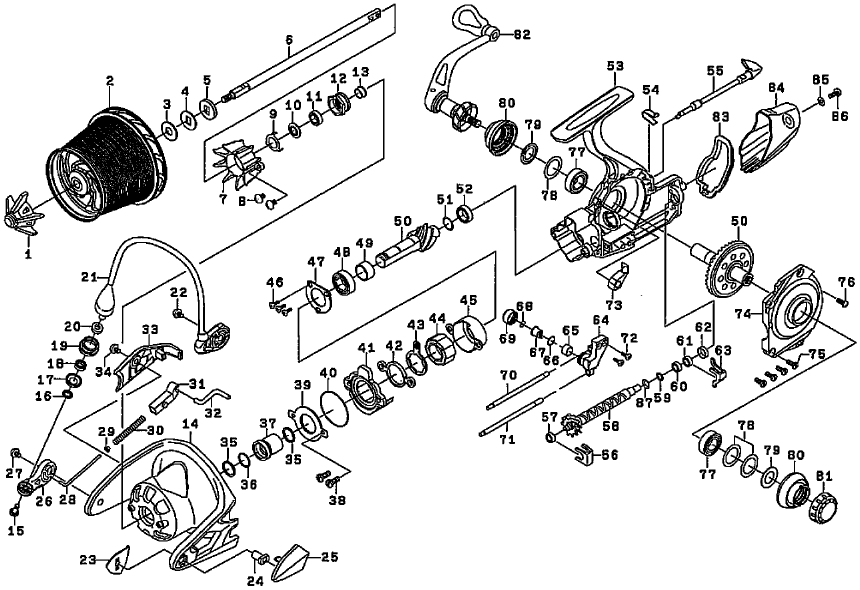

Reel Part's Schematic Diagram |
No. | Part Name | Part Code | Price (USD) |
1 | SPOOL KNOB | 139551 | 12.10 |
2 | SPOOL | 128A34 | 125.40 |
3 | SPOOL W (A) | 190350 | 1.10 |
4 | SPOOL W (B) | 190753 | 1.10 |
5 | MAIN SHAFT W | 190853 | 1.10 |
6 | MAIN SHAFT | 171389 | 29.70 |
7 | ROTOR COVER | 108947 | 8.80 |
8 | ROTOR COVER SC | 10A776 | 2.20 |
9 | ROTOR NUT PLATE | 145031 | 2.20 |
10 | ROTOR NUT BEARING PACKING | 185141 | 2.20 |
11 | ROTOR NUT BALL BEARING | 10E257 | 8.80 |
12 | ROTOR NUT | 140214 | 7.70 |
13 | ROTOR NUT COLOR | 110522 | 3.30 |
14 | ROTOR *Cannot be ordered | 188139 | 63.80 |
15 | ROLLER SC | 187090 | 2.20 |
16 | ROLLER COLLAR | 110094 | 2.20 |
17 | ROLLER BEARING PACKING | 185215 | 2.20 |
18 | ROLLER BALL BEARINGS *Cannot be ordered | 10E391 | 45.10 |
19 | LINE ROLLER *Cannot be ordered | 179154 | 46.20 |
20 | ROLLER COLLAR | 191062 | 3.30 |
21 | VEIL *Cannot be ordered | 164829 | 80.30 |
22 | VEIL HOLDER SC | 10A367 | 2.20 |
23 | BALE HOLDER PLATE | 160624 | 2.20 |
24 | BALE HOLDER NUT | 140215 | 3.30 |
25 | BALE HOLDER COVER | 108945 | 15.40 |
26 | ARM LEVER | 101398 | 12.10 |
27 | ARM LEVER SC | 102013 | 2.20 |
28 | ARM LEVER SP SHAFT *Cannot be ordered | 122329 | 2.20 |
29 | ARM LEVER SP COLOR | 110798 | 3.30 |
30 | ARM LEVER SP | 133789 | 2.20 |
31 | VEIL LOCK SHAFT COLLAR | 110799 | 2.20 |
32 | BAIL LOCK SHAFT | 122330 | 7.70 |
33 | ARM LEVER COVER | 108946 | 11.00 |
34 | ARM LEVER COVER SC | 10A171 | 2.20 |
35 | CLUTCH RING COLOR | 110998 | 3.30 |
36 | CLUTCH RING O RING | 10J124 | 1.10 |
37 | CLUTCH RING | 110975 | 18.70 |
38 | MAG SHIELD PLATE SC | 10A504 | 4.40 |
39 | MUG SHIELD PLATE *Cannot be ordered | 114098 | 17.60 |
40 | MAG SHIELD PLATE O RING | 10J123 | 2.20 |
41 | ONE-WAY CLUTCH CAP (A) | 199947 | 9.90 |
42 | ONE-WAY CLUTCH PLATE (A) | 160627 | 2.20 |
43 | ONE-WAY CLUTCH PLATE (B) | 160293 | 2.20 |
44 | ONE WAY CLUTCH *Cannot be ordered | 114045 | 26.40 |
45 | ONE-WAY CLUTCH CAP (B) | 199773 | 2.20 |
46 | PINION BEARING PLATE SC | 10A671 | 2.20 |
47 | PINION BEARING PLATE | 160626 | 2.20 |
48 | PINION BALL BEARING (A) | 10E363 | 15.40 |
49 | PINION BEARING (A) COLLAR | 110801 | 3.30 |
50 | PINION + DRIVE GEAR SET *Cannot be ordered | 138876 | 77.00 |
51 | PINION BEARING (B) W | 190797 | 1.10 |
52 | PINION BALL BEARING (B) | 10E262 | 15.40 |
53 | BODY *Cannot be ordered | 166285 | 140.80 |
54 | STOPPER CAM SP | 133790 | 2.20 |
55 | STOPPER LEVER | 196415 | 12.10 |
56 | WORM SHAFT RETAINER (A) | 182235 | 2.20 |
57 | WORM SHAFT BALL BEARING | 10E313 | 15.40 |
58 | WORM SHAFT | 103254 | 26.40 |
59 | WORM SHAFT W (A) | 190196 | 1.10 |
60 | WORM SHAFT BALL BEARING | 10E313 | 15.40 |
61 | WORM SHAFT BALL BEARING | 10E313 | 15.40 |
62 | WORM SHAFT BEARING COLLAR | 110520 | 3.30 |
63 | WORM SHAFT RETAINER (B) | 182236 | 3.30 |
64 | OSCILLATING SLIDER | 107165 | 20.90 |
65 | POLE HOLDER COLOR | 110802 | 3.30 |
66 | PAUL W (A) | 190854 | 1.10 |
67 | POLE | 195043 | 11.00 |
68 | PAUL W (B) | 190754 | 1.10 |
69 | POLE HOLDER NUT | 140216 | 4.40 |
70 | OSCILLATING POST (A) | 155284 | 8.80 |
71 | OSCILLATING POST (B) | 155285 | 8.80 |
72 | OSCILLATING SLIDER SC | 10A039 | 2.20 |
73 | STOPPER | 127224 | 3.30 |
74 | BODY COVER | 168368 | 108.90 |
75 | BODY COVER SC (A) | 10A710 | 3.30 |
76 | BODY COVER SC (B) | 10A675 | 2.20 |
77 | DRIVE BALL BEARING | 10E263 | 8.80 |
78 | DRIVE BEARING W | 190495 | 1.10 |
79 | DRIVE BEARING PACKING | 185132 | 2.20 |
80 | DRIVE BEARING COVER | 168362 | 15.40 |
81 | HANDLE CAP | 151157 | 6.60 |
82 | HANDLE | 1H2162 | 133.10 |
83 | REAR CAP GASKET | 185143 | 4.40 |
84 | REAR CAP | 116599 | 22.00 |
85 | REAR CAP W | 190627 | 1.10 |
86 | REAR CAP SC | 10A692 | 2.20 |
87 | WORM SHAFT W (B) | 190983 | 1.10 |
200 | HANDLE KNOB W | 190109 | 1.10 |
201 | HANDLE KNOB BALL BEARING | 10E313 | 15.40 |
202 | HANDLE KNOB | 1H1834 | 11.00 |
203 | HANDLE KNOB SC | 10A333 | 2.20 |
204 | HANDLE KNOB CAP | 116660 | 2.20 |
300 | SPOOL BAND | 199831 | 15.40 |
