[DAIWA] Genuine Spare Parts for 23 LONGBEAM 35 QD12 Product code: 00067010 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

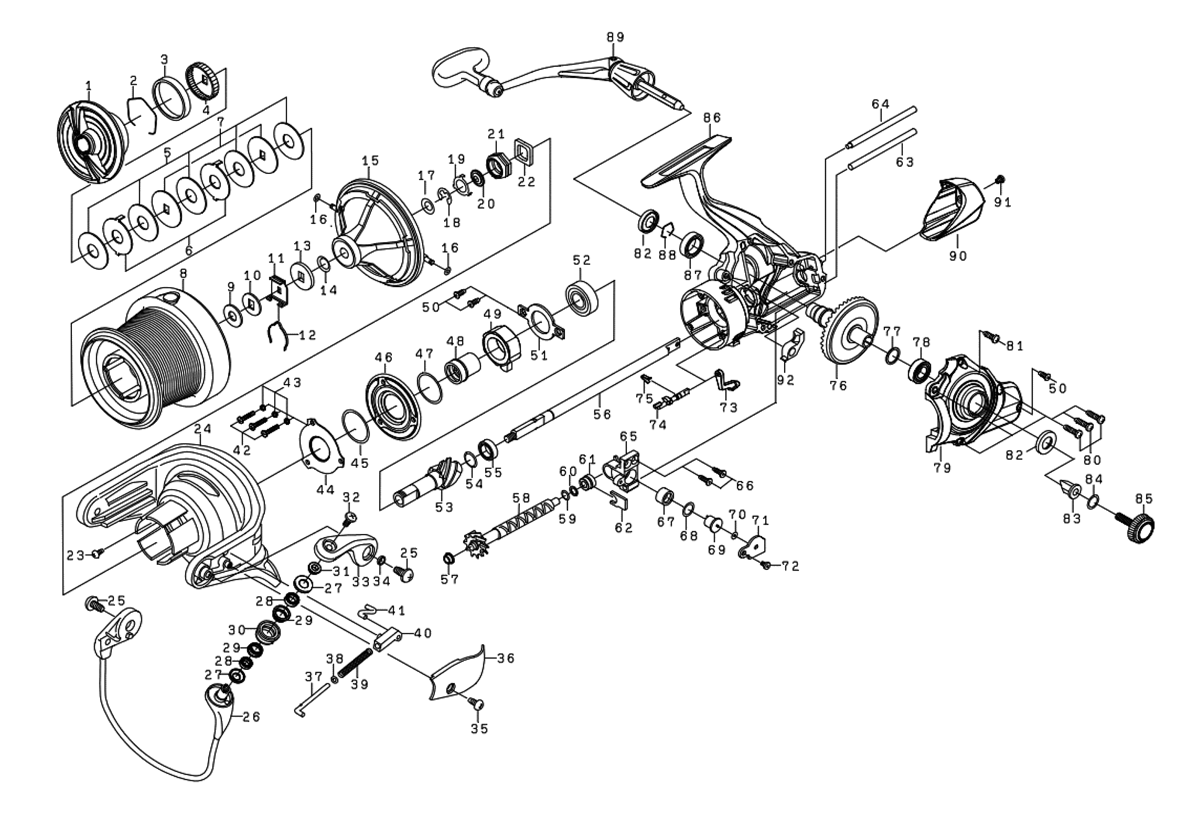

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	DRAG KNOB	139845	18.70
2	DRAG RING	185063	2.20
3	DRAG RATCHET COLLAR	110886	2.20
4	DRAG RATCHET	180189	3.30
5	DRAG W	144224	2.20
6	DRAG GRIP W	190533	1.10
7	DRAG DISC W	142131	2.20
8	SPOOL (2-8)	128F32	108.90
9	SPOOL W (A)	190350	1.10
10	SPOOL W (B)	143038	1.10
11	CLICK HOLDER	116521	2.20
12	CLICKLEAF SP	133990	2.20
13	MAIN SHAFT W	190313	1.10
14	LINE GUARD SP/W	190970	1.10
15	LINE GUARD	162198	4.40
16	LINE GUARD O RING	10J130	1.10
17	LINE GUARD W	190796	1.10
18	LINE GUARD RETAINER	10F002	2.20
19	ROTOR NUT PACKING PLATE	160526	2.20
20	ROTOR NUT PACKING	185082	4.40
21	ROTOR NUT	140424	3.30
22	ROTOR NUT PLATE	160421	2.20
23	ROTOR NUT LOCK SC	10A525	2.20
24	ROTOR *Cannot be ordered	188B68	46.20
25	ARM LEVER SC	10A521	2.20
26	VEIL	164885	52.80
27	ROLLER PACKING	185130	2.20
28	ROLLER BALL BEARINGS	10E256	12.10
29	ROLLER COLLAR (A)	110706	3.30
30	LINE ROLLER	179172	15.40
31	ROLLER COLLAR (B)	191039	2.20
32	ROLLER SC	187060	2.20
33	ARM LEVER	101484	6.60
34	ARM LEVER SC COLOR	110A29	2.20
35	ARM LEVER COVER SC	10A459	2.20
36	ARM LEVER COVER	108A18	4.40
37	ARM LEVER SHAFT	122168	2.20
38	ARM LEVER SHAFT W	190773	1.10
39	ARM LEVER SP	133989	2.20
40	ARM LEVER SP COLOR *Not available	110A30	2.20
41	BAIL LOCK SHAFT	122169	2.20
42	MAG SHIELD PLATE SC	10A741	2.20
43	MAG SHIELD PLATE SC/W	190621	1.10
44	MUG SHIELD PLATE *Cannot be ordered	114120	23.10
45	MAG SHIELD PLATE O RING	10J134	1.10
46	SHIELD CAP	182274	3.30
47	SHIELD CAP W	190B08	1.10
48	CLUTCH RING *Cannot be ordered	110B68	9.90
49	ONE WAY CLUTCH *Cannot be ordered	114116	26.40
50	PINION BEARING PLATE SC	10A217	2.20
51	PINION BEARING PLATE	182275	2.20
52	PINION BALL BEARING (A)	10E194	8.80
53	PINION *Cannot be ordered	154655	12.10
54	PINION BEARING (B) W	190797	1.10
55	PINION BALL BEARING (B)	10E410	15.40
56	MAIN SHAFT	171534	11.00
57	WORM SHAFT COLLAR (A)	110847	2.20
58	WORM SHAFT	103341	30.80
59	WORM SHAFT SP/W	190983	1.10
60	WORM SHAFT W	190196	1.10
61	WORM SHAFT COLLAR (B)	110848	2.20
62	WORM SHAFT RETAINER	182243	2.20
63	OSCILLATING POST (A)	155604	8.80
64	OSCILLATING POST (B)	155354	8.80
65	OSCILLATING SLIDER	107185	3.30
66	POLE HOLDER PLATE SC (A)	10A045	2.20
67	POLE HOLDER COLOR	110955	3.30
68	PAUL W (A)	190780	1.10
69	POLE	195039	11.00
70	PAUL W (B)	190754	1.10
71	POLE HOLDER PLATE *Cannot be ordered	160896	2.20
72	POLE HOLDER PLATE SC (B)	10A076	2.20
73	STOPPER LEVER	196419	2.20
74	STOPPER CAM	194192	2.20
75	STOPPER CAM SP	133886	2.20
76	DRIVE GEAR *Cannot be ordered	138945	8.80
77	DRIVE W	190C02	1.10
78	DRIVE BALL BEARING (A)	10E363	15.40
79	BODY COVER *Cannot be ordered	168C57	29.70
80	BODY COVER SC (A)	10A855	2.20
81	BODY COVER SC (B)	124001	2.20
82	HANDLE PACKING	185208	2.20
83	HANDLE COLOR	104001	2.20
84	HANDLE SC/W	190806	1.10
85	HANDLE SC	152181	4.40
86	BODY *Cannot be ordered	166C26	42.90
87	DRIVE BALL BEARING (B)	10E357	15.40
88	DRIVE BALL BEARING (B) RING	185209	2.20
89	HANDLE	1H2C81	84.70
90	REAR CAP	116733	4.40
91	REAR CAP SC	10A459	2.20
92	STOPPER	127258	2.20
200	HANDLE KNOB W	190196	1.10
202	HANDLE KNOB COLOR	110411	2.20
203	HANDLE KNOB SC	10A333	2.20
