[DAIWA] Genuine Spare Parts for 16 CATALINA 3500H Product code: 00059581 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

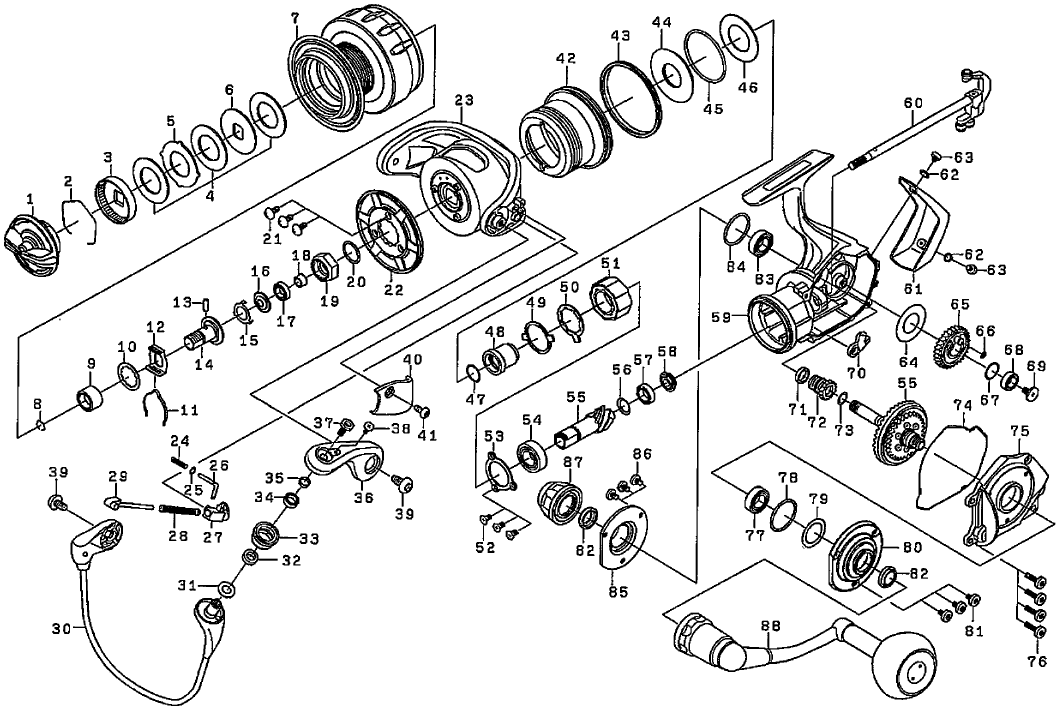

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	DRAG KNOB	139718	24.20
2	DRAG RING	185059	2.20
3	DRAG RATCHET	180232	8.80
4	DRAG DOUBLE SET (3 piece)	144193	36.30
5	DRAG GRIP W	143082	2.20
6	DRAG DISC W	142147	2.20
7	SPOOL (2-7)	128A35	125.40
8	SPOOL METAL RING	185120	2.20
9	SPOOL METAL COLOR	110962	3.30
10	SPOOL W	190955	1.10
11	CLICKLEAF SP	181269	2.20
12	CLICK HOLDER	116377	3.30
13	SPOOL METAL PIN	156096	2.20
14	SPOOL METAL	132094	7.70
15	ROTOR NUT PLATE	160459	2.20
16	ROTOR NUT PACKING	185175	3.30
17	ROTOR NUT BALL BEARING	10E367	15.40
18	ROTOR NUT COLOR	110922	3.30
19	ROTOR NUT	140252	3.30
20	ROTOR NUT O-RING	185077	2.20
21	ROTOR COVER SC	10A870	2.20
22	ROTOR COVER	162123	8.80
23	ROTOR *Cannot be ordered	188113	67.10
24	ROTOR BRAKE SP	133883	2.20
25	ROTOR BRAKE W	190773	1.10
26	ROTOR BRAKE SHAFT	122333	3.30
27	ARM LEVER SP COLOR	110924	2.20
28	ARM LEVER SP	133882	2.20
29	ARM LEVER SHAFT	156117	2.20
30	VEIL *Cannot be ordered	164796	69.30
31	ROLLER W	193014	1.10
32	ROLLER COLLAR (B)	191064	3.30
33	LINE ROLLER	179146	8.80
34	ROLLER BALL BEARING (MAG SHIELD) *Cannot be ordered	10E391	45.10
35	ROLLER COLLAR (A)	191063	2.20
36	ARM LEVER	101330	27.50
37	ROLLER SC	10A899	2.20
38	ARM LEVER SC	10A116	3.30
39	HOLDER SC	10A901	2.20
40	ARM LEVER SP COVER	108011	6.60
41	ARM LEVER SP COVER SC	10A898	2.20
42	INFINITE COVER *Cannot be ordered	108133	36.30
43	INFINITE COVER O-RING	10J109	1.10
44	MUG SHIELD PLATE *Cannot be ordered	114083	23.10
45	MAG SHIELD PLATE O RING	10J096	1.10
46	MAG SHIELD PLATE W	190953	2.20
47	CLUTCH RING O RING	10J110	1.10
48	CLUTCH RING *Cannot be ordered	110921	18.70
49	BEARING PLATE *Not available	160743	2.20
50	ONE WAY CLUTCH PLATE	160744	2.20
51	ONE WAY CLUTCH *Cannot be ordered	114045	26.40
52	PINION BEARING (A) PLATE SC	10A499	2.20
53	PINION BEARING (A) PLATE	160461	2.20
54	PINION BALL BEARING (A)	10E263	8.80
55	PINION + DRIVE GEAR SET *Cannot be ordered	138615	132.00
56	PINION BALL BEARING (B) W	190086	1.10
57	PINION BALL BEARING (B)	10E257	8.80
58	PINION BEARING (B) COLLAR	110923	3.30
59	BODY *Cannot be ordered	166280	49.50
60	MAIN SHAFT *Cannot be ordered	171514	27.50
61	REAR CAP	116566	8.80
62	REAR CAP SC/W	190993	1.10
63	REAR CAP SC	10A961	2.20
64	OSCILLATING GEAR (A)W	190954	1.10
65	OSCILLATING GEAR (A)	112684	8.80
66	OSCILLATING GEAR (A) O-RING	10J012	1.10
67	OSCILLATING GEAR BEARING W	190711	1.10
68	OSCILLATING GEAR BALL BEARING	10E211	8.80
69	OSCILLATING GEAR SC	10A922	2.20
70	STOPPER	127241	7.70
71	OSCILLATING GEAR (B) RING	185177	2.20
72	OSCILLATING GEAR (B)	106109	19.80
73	OSCILLATING GEAR (B) O-RING	10J060	1.10
74	BODY COVER PACKING	185178	4.40
75	BODY COVER	168366	27.50
76	BODY COVER SC	158095	2.20
77	DRIVE BALL BEARING	10E212	8.80
78	DRIVE BEARING COVER O-RING	10J111	1.10
79	DRIVE W	190712	1.10
80	DRIVE BEARING COVER (L)	108136	27.50
81	DRIVE BEARING COVER SC	10A846	4.40
82	HANDLE PACKING	185179	3.30
83	DRIVE BALL BEARING	10E212	8.80
84	DRIVE BEARING COVER O-RING	10J111	1.10
85	DRIVE BEARING COVER (R)	108135	27.50
86	DRIVE BEARING COVER SC	10A846	4.40
87	HANDLE CAP	151169	17.60
88	HANDLE	1H2175	163.90
200	HANDLE KNOB W	190196	1.10
201	HANDLE KNOB COLOR	110879	2.20
202	HANDLE KNOB	1H1554	29.70
203	HANDLE KNOB BALL BEARING	10E224	8.80
204	HANDLE KNOB SC	10A333	2.20
205	HANDLE KNOB CAP (O-RING ATTACHED)	116492	17.60
206	HANDLE KNOB CAP O RING	10J083	1.10
300	SPOOL BAND	199835	15.40
