[DAIWA] Genuine Spare Parts for 16 JOINUS 4500 Product code: 00050412 **Back-order (Shipping in 3-4 weeks after receiving order)
![Photo1: [DAIWA] Genuine Spare Parts for 16 JOINUS 4500 Product code: 00050412 **Back-order (Shipping in 3-4 weeks after receiving order) (1)](https://www.hedgehog-studio.co.jp/phone/data/hedgehog-studio/product/20240326_5b9269.png)
Our Selling Price: US$0.66 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.

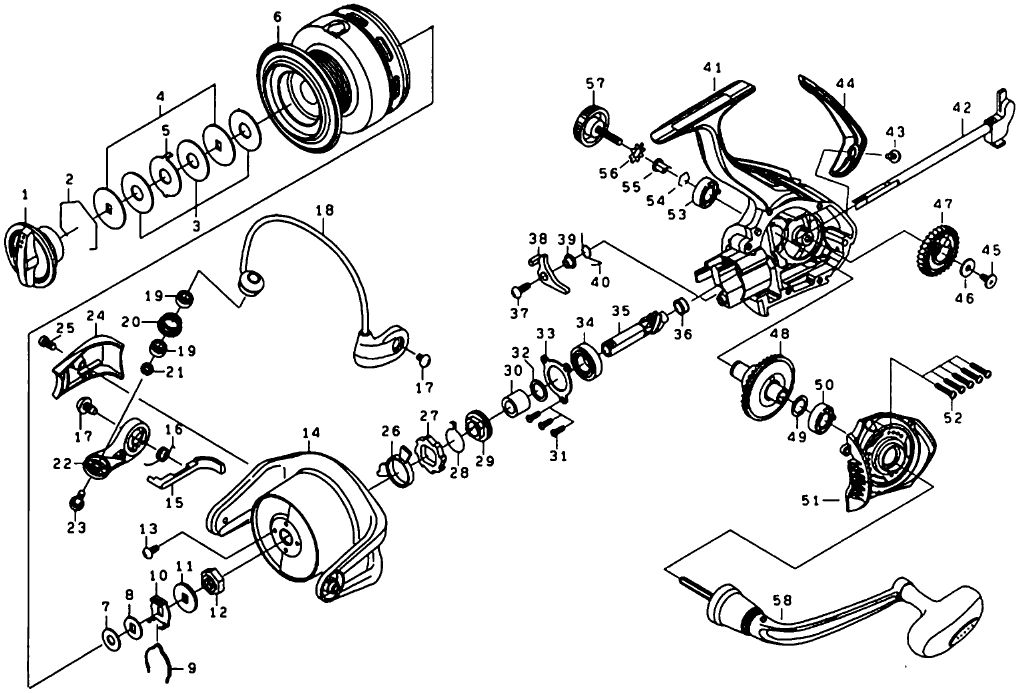

| Reel Part's Schematic Diagram |
| No. | Part Name | Part Code | Price (USD) |
| 1 | DRAG KNOB | 139724 | 6.60 |
| 2 | DRAG RING | 185063 | 2.20 |
| 3 | DRAG W | 144187 | 2.20 |
| 4 | DRAG DISC W | 142155 | 2.20 |
| 5 | DRAG GRIP W | 190533 | 1.10 |
| 6 | SPOOL (ITONASHI) | 128A16 | 22.00 |
| 7 | SPOOL W (A) | 190351 | 1.10 |
| 8 | SPOOL W (B) | 190040 | 1.10 |
| 9 | CLICKLEAF SP | 133695 | 2.20 |
| 10 | CLICK HOLDER | 116638 | 2.20 |
| 11 | CLICK HOLDER W | 190352 | 1.10 |
| 12 | ROTOR NUT | 140242 | 2.20 |
| 13 | ROTOR NUT SC | 10A650 | 2.20 |
| 14 | ROTOR | 188143 | 9.90 |
| 15 | KICK LEVER | 111168 | 4.40 |
| 16 | ARM LEVER SP | 133473 | 2.20 |
| 17 | ARM LEVER SC | 10A521 | 2.20 |
| 18 | VEIL | 164870 | 9.90 |
| 19 | ROLLER COLLAR (A) | 192022 | 2.20 |
| 20 | LINE ROLLER | 179155 | 3.30 |
| 21 | ROLLER COLLAR (B) | 191047 | 2.20 |
| 22 | ARM LEVER | 101399 | 3.30 |
| 23 | ROLLER SC | 187060 | 2.20 |
| 24 | ARM LEVER SP COVER | 108146 | 2.20 |
| 25 | COVER SC | 10A459 | 2.20 |
| 26 | RATCHET COLLAR | 110144 | 2.20 |
| 27 | RATCHET | 180170 | 3.30 |
| 28 | STOPPER LEAF SP | 133561 | 2.20 |
| 29 | STOPPER LEAF SP HOLDER | 116699 | 2.20 |
| 30 | STOPPER RING | 110148 | 2.20 |
| 31 | PINION BEARING PLATE SC | 10A741 | 2.20 |
| 32 | PINION BEARING W | 190593 | 1.10 |
| 33 | PINION BEARING PLATE | 182271 | 2.20 |
| 34 | PINION BALL BEARING | 10E372 | 8.80 |
| 35 | PINION | 154632 | 7.70 |
| 36 | PINION COLLAR | 110149 | 2.20 |
| 37 | STOPPER SC | 10A158 | 2.20 |
| 38 | STOPPER | 127254 | 2.20 |
| 39 | STOPPER COLLAR | 110151 | 2.20 |
| 40 | STOPPER SP | 133976 | 2.20 |
| 41 | BODY | 166289 | 6.60 |
| 42 | MAIN SHAFT | 171511 | 7.70 |
| 43 | REAR CAP SC | 10A652 | 2.20 |
| 44 | REAR CAP | 116700 | 4.40 |
| 45 | OSCILLATE GEAR SC | 10A159 | 2.20 |
| 46 | OSCILLATE GEAR W | 190557 | 1.10 |
| 47 | OSCILLATING GEAR | 106146 | 3.30 |
| 48 | DRIVE GEAR*Not available | 138869 | 7.70 |
| 49 | DRIVE W | 190411 | 1.10 |
| 50 | DRIVE BEARING | 163093 | 2.20 |
| 51 | BODY COVER | 168372 | 4.40 |
| 52 | BODY COVER SC | 10A855 | 2.20 |
| 53 | DRIVE BEARING | 163093 | 2.20 |
| 54 | DRIVE BEARING RING | 185213 | 2.20 |
| 55 | HANDLE COLOR | 104001 | 2.20 |
| 56 | HANDLE W | 135010 | 2.20 |
| 57 | HANDLE SC | 152174 | 2.20 |
| 58 | HANDLE | 1H2166 | 18.70 |
