[DAIWA] Genuine Spare Parts for 17 LIBERTY CLUB 3000 Product code: 00059623 **Back-order (Shipping in 3-4 weeks after receiving order)
![Photo1: [DAIWA] Genuine Spare Parts for 17 LIBERTY CLUB 3000 Product code: 00059623 **Back-order (Shipping in 3-4 weeks after receiving order) (1)](https://www.hedgehog-studio.co.jp/phone/data/hedgehog-studio/product/20240319_131458.png)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.

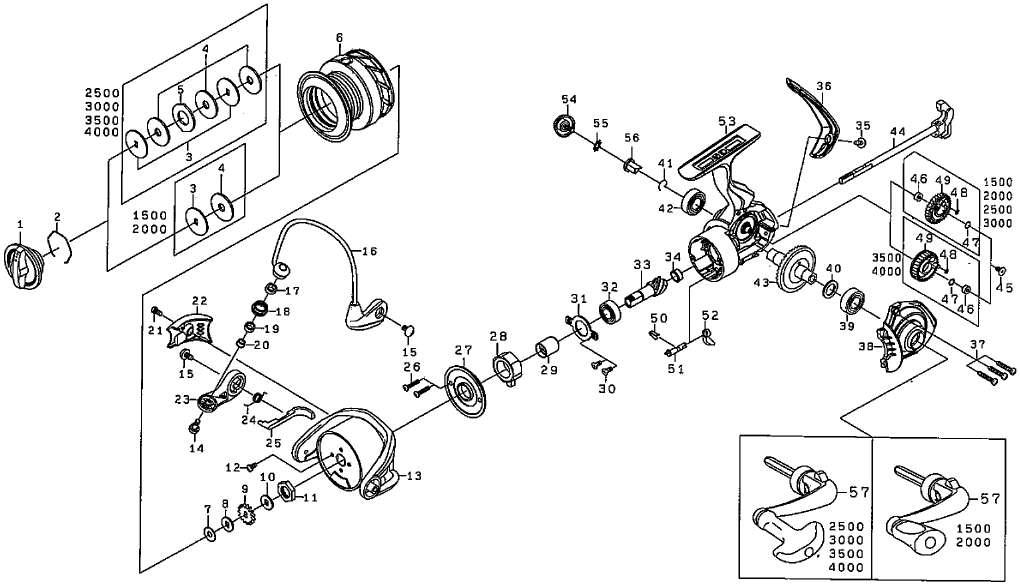

| Reel Part's Schematic Diagram |
| No. | Part Name | Part Code | Price (USD) |
| 1 | DRAG KNOB | 139735 | 3.30 |
| 2 | DRAG RING | 185054 | 2.20 |
| 3 | DRAG DISC W | 142069 | 2.20 |
| 4 | DRAG W | 144070 | 2.20 |
| 5 | DRAG GRIP W | 143074 | 2.20 |
| 6 | SPOOL (2-6) | 128B07 | 19.80 |
| 7 | SPOOL W (A) | 190602 | 1.10 |
| 8 | SPOOL W (B) | 190367 | 1.10 |
| 9 | CLICK GEAR | 118110 | 2.20 |
| 10 | CLICK HOLDER W *Not available | 190848 | 1.10 |
| 11 | ROTOR NUT | 140307 | 2.20 |
| 12 | ROTOR NUT SC | 10A650 | 2.20 |
| 13 | ROTOR | 188137 | 6.60 |
| 14 | ROLLER SC | 152124 | 2.20 |
| 15 | HOLDER SC | 10A651 | 2.20 |
| 16 | VEIL | 164956 | 7.70 |
| 17 | ROLLER COLLAR (A) | 191065 | 2.20 |
| 18 | LINE ROLLER | 179141 | 3.30 |
| 19 | ROLLER SLEEVE | 191043 | 2.20 |
| 20 | ROLLER COLLAR (B) | 110752 | 2.20 |
| 21 | ARM LEVER SP COVER SC | 10A652 | 2.20 |
| 22 | ARM LEVER SP COVER | 108899 | 2.20 |
| 23 | ARM LEVER | 101261 | 3.30 |
| 24 | ARM LEVER SP | 133A66 | 2.20 |
| 25 | KICK LEVER | 111116 | 4.40 |
| 26 | ONE-WAY CLUTCH PLATE SC | 10A741 | 2.20 |
| 27 | ONE WAY CLUTCH PLATE | 182267 | 2.20 |
| 28 | ONE WAY CLUTCH | 114118 | 23.10 |
| 29 | CLUTCH RING | 110136 | 5.50 |
| 30 | PINION BEARING PLATE SC | 10A125 | 2.20 |
| 31 | PINION BEARING PLATE | 182269 | 2.20 |
| 32 | PINION BALL BEARING | 10E210 | 8.80 |
| 33 | PINION | 154635 | 9.90 |
| 34 | PINION COLLAR | 110134 | 2.20 |
| 35 | REAR CAP SC | 10A652 | 2.20 |
| 36 | REAR CAP | 116718 | 3.30 |
| 37 | BODY COVER SC | 123164 | 2.20 |
| 38 | BODY COVER | 168A05 | 4.40 |
| 39 | DRIVE BALL BEARING (A) | 10E210 | 8.80 |
| 40 | DRIVE W | 190137 | 1.10 |
| 41 | DRIVE BALL BEARING (B) RING | 185116 | 2.20 |
| 42 | DRIVE BALL BEARING (B) | 10E381 | 8.80 |
| 43 | DRIVE GEAR | 138870 | 6.60 |
| 44 | MAIN SHAFT | 171512 | 4.40 |
| 45 | OSCILLATING GEAR SC | 10A155 | 2.20 |
| 46 | OSCILLATING GEAR COLOR | 110A07 | 2.20 |
| 47 | OSCILLATING GEAR COLOR W | 190455 | 1.10 |
| 48 | OSCILLATING GEAR O-RING | 10J113 | 1.10 |
| 49 | OSCILLATING GEAR | 106154 | 3.30 |
| 50 | STOPPER CAM SP | 133886 | 2.20 |
| 51 | STOPPER CAM | 194186 | 2.20 |
| 52 | STOPPER LEVER | 196408 | 2.20 |
| 53 | BODY | 166A08 | 5.50 |
| 54 | HANDLE SC | 152170 | 3.30 |
| 55 | HANDLE SC/W | 134001 | 2.20 |
| 56 | HANDLE COLOR | 104014 | 2.20 |
| 57 | HANDLE | 1H2A18 | 18.70 |
