[DAIWA] Genuine Spare Parts for 18 LEGALIS LT 2000S Product code:00060011 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.66 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.

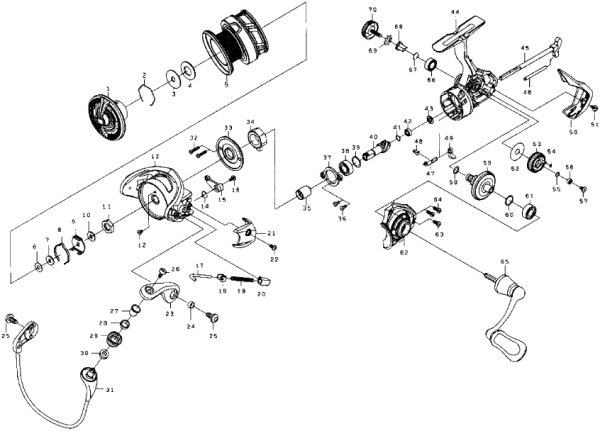

Reel Part's Schematic Diagram |
No. | Part Name | Part Code | Price (USD) |
1 | DRAG KNOBS | 139760 | 12.10 |
2 | DRAG RINGS | 185237 | 2.20 |
3 | DRAG DISK W | 142165 | 2.20 |
4 | DRAG W (1 piece) | 144226 | 6.60 |
5 | SPOOL (2-5) | 128C60 | 34.10 |
6 | SPOOL W (A) | 190A49 | 1.10 |
7 | SPOOL W (B) | 190602 | 1.10 |
8 | CLICK LEAF SP | 133A50 | 2.20 |
9 | CLICK HOLDER | 116819 | 2.20 |
10 | CLICK HOLDER W | 190A50 | 1.10 |
11 | ROTOR NUT | 140307 | 2.20 |
12 | ROTOR NUT SC | 10A748 | 2.20 |
13 | ROTOR | 188A70 | 8.80 |
14 | KICK LEVER SP | 133858 | 2.20 |
15 | KICK LEVER | 111153 | 3.30 |
16 | KICK LEVER SC | 10A870 | 2.20 |
17 | ARM LEVER SHAFT | 122160 | 2.20 |
18 | ARM LEVER SHAFT PLATE | 160716 | 3.30 |
19 | ARM LEVER SP | 133859 | 2.20 |
20 | ARM LEVER SP HOLDER | 110056 | 2.20 |
21 | ARM LEVER SP COVER | 108109 | 3.30 |
22 | ARM LEVER SP COVER SC | 10AA13 | 2.20 |
23 | ARM LEVER | 101442 | 3.30 |
24 | ARM LEVER SC COLLAR | 110055 | 2.20 |
25 | BAIL SC | 10AA14 | 2.20 |
26 | ROLLER SC | 152124 | 2.20 |
27 | ROLLER COLLAR (A) | 191030 | 2.20 |
28 | ROLLER COLLAR (B) | 191029 | 2.20 |
29 | LINE ROLLER | 179147 | 7.70 |
30 | ROLLER COLLAR (C) | 191065 | 2.20 |
31 | BAIL | 164852 | 23.10 |
32 | SHIELD CAP SC | 10A741 | 2.20 |
33 | SHIELD CAP | 182261 | 3.30 |
34 | ONE-WAY CLUTCH | 114118 | 23.10 |
35 | CLUTCH RING | 110034 | 5.50 |
36 | PINION BEARING PLATE SC | 10A059 | 2.20 |
37 | PINION BEARING PLATE | 182269 | 2.20 |
38 | PINION BALL BEARING (A) | 10E210 | 8.80 |
39 | PINION BEARING (A) W | 190137 | 1.10 |
40 | PINION *Cannot be ordered | 154658 | 6.60 |
41 | PINION BEARING (B) W | 190014 | 1.10 |
42 | PINION BALL BEARING (B) | 10E337 | 8.80 |
43 | PINION BALL BEARING (B) COLLAR | 110A10 | 3.30 |
44 | BODY | 166A93 | 13.20 |
45 | MAIN SHAFT *Cannot be ordered | 171551 | 8.80 |
46 | OSCILLATING POST | 155561 | 2.20 |
47 | STOPPER CAM | 194186 | 2.20 |
48 | STOPPER CAM SP | 133886 | 2.20 |
49 | STOPPER LEVER | 196408 | 2.20 |
50 | REAR CAP | 116761 | 4.40 |
51 | REAR CAP SC | 10AA13 | 2.20 |
52 | OSCILLATING GEAR W | 190977 | 1.10 |
53 | OSCILLATING GEAR O-RING *Cannot be ordered | 106164 | 6.60 |
54 | OSCILLATING GEAR O-RING | 10J113 | 1.10 |
55 | OSCILLATING GEAR BEARING W | 190854 | 1.10 |
56 | OSCILLATING GEAR BALL BEARING | 10E295 | 8.80 |
57 | OSCILLATING GEAR SC | 10A058 | 2.20 |
58 | DRIVE GEAR O-RING | 10J071 | 1.10 |
59 | DRIVE GEAR | 138A57 | 8.80 |
60 | DRIVE W | 190509 | 1.10 |
61 | DRIVE BALL BEARING (A) | 10E210 | 8.80 |
62 | BODY COVER | 168B06 | 9.90 |
63 | BODY COVER SC (A) | 10AA15 | 2.20 |
64 | BODY COVER SC (B) | 10AA16 | 2.20 |
65 | HANDLE | 1H2B16 | 19.80 |
66 | DRIVE BALL BEARING (B) | 10E381 | 8.80 |
67 | DRIVE BEARING (B) RING | 185116 | 2.20 |
68 | HANDLE COLLAR | 104014 | 2.20 |
69 | HANDLE W | 134001 | 2.20 |
70 | HANDLE SC | 152170 | 3.30 |
200 | HANDLE KNOB W | 190196 | 1.10 |
201 | HANDLE KNOB COLLAR | 110411 | 2.20 |
202 | HANDLE KNOB | 1H1711 | 17.60 |
203 | HANDLE KNOB SC | 10A333 | 2.20 |
204 | HANDLE KNOB CAP | 116756 | 2.20 |
300 | LINE STOPPER | 177082 | 2.20 |
301 | LINE STOPPER PLATE | 160B28 | 2.20 |
302 | LINE STOPPER SPRING | 133A01 | 2.20 |
303 | SHIELD CAP W *Not available | 190C53 | 1.10 |
304 | CLUTCH RING W | 190558 | 1.10 |
