[DAIWA] Genuine Spare Parts for 24 CERTATE LT4000-C Product code: 00061181 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 24 CERTATE LT4000-C Product code: 00061181 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

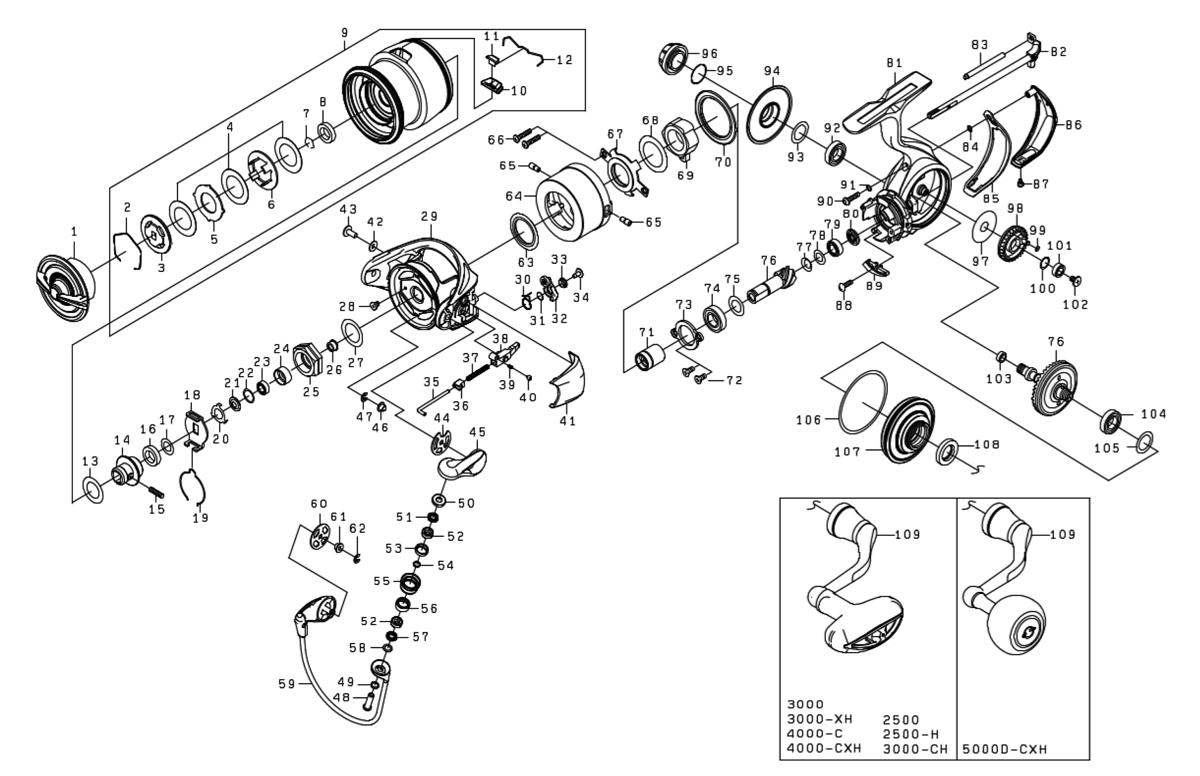

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 6J784402 30.80
2 DRAG RINGS 6J556701 2.20
3 DRAG METAL (A) 6J556601 6.60
4 DRAG W (1 piece) 6M359001 19.80
5 DRAG LIP W 6J561201 1.10
6 DRAG METAL (B) 6J556501 2.20
7 SPOOL COLOR RING 6B358702 2.20
8 SPOOL COLLAR 6J546701 2.20
9 SPOOL (2-12) 6M549701 148.50
10 LINE STOPPER PLATE 6J568601 2.20
11 LINE STOPPER 6J558001 2.20
12 LINE STOPPER SP 6J314801 2.20
13 SPOOL METAL W 6J546301 1.10
14 SPOOL METAL 6J549501 9.90
15 SPOOL METAL SC 6J558201 2.20
16 SPOOL METAL COLLAR 6H624801 2.20
17 SPOOL W 6J602201 1.10
18 CLICK HOLDER 6M021401 2.20
19 CLICK LEAF SP 6H416101 2.20
20 ROTOR NUT PLATE 6G471501 2.20
21 ROTOR NUT PACKING 6J729101 2.20
22 ROTOR NUT BEARING W 63755202 1.10
23 ROTOR NUT BALL BEARING 6H959602 15.40
24 ROTOR NUT BEARING COLLAR 6J690201 4.40
25 ROTOR NUT 6J253001 8.80
26 ROTOR NUT COLLAR 6M402701 4.40
27 ROTOR NUT W 63712836 1.10
28 ROTOR NUT SC 6H022701 2.20
29 ROTOR *Cannot be ordered 6M486401 52.80
30 KICK LEVER SP 6M194501 2.20
31 KICK LEVER W 6M194601 1.10
32 KICK LEVER 6M247601 8.80
33 KICK LEVER COLLAR 6M196401 2.20
34 KICK LEVER SC 6H022702 2.20
35 ARM LEVER SHAFT 6M247801 3.30
36 ARM LEVER SHAFT COLLAR 6M195001 3.30
37 ARM LEVER SP 6G944501 2.20
38 ARM LEVER SHAFT HOLDER 6M247901 2.20
39 ARM LEVER SHAFT HOLDER SP 6M195301 2.20
40 ARM LEVER SHAFT HOLDER PIN 6M195401 2.20
41 ARM LEVER COVER 6M248102 7.70
42 ARM LEVER COVER SC/W 6G256401 1.10
43 ARM LEVER COVER SC 6M355601 2.20
44 ARM LEVER PLATE 6M195901 2.20
45 ARM LEVER 6M248003 16.50
46 ARM LEVER COLLAR 6M195801 2.20
47 ARM LEVER RETAINER 6B339801 2.20
48 ARM LEVER SC 6M196801 3.30
49 ARM LEVER SC・W 6M291901 1.10
50 ROLLER COLLAR (A) 6J538001 2.20
51 ROLLER MAG COLLAR (A) *Cannot be ordered 6J538401 12.10
52 ROLLER BALL BEARING 6J256702 15.40
53 ROLLER COLLAR (B) 6J256601 3.30
54 ROLLER COLLAR (C) 6J256301 2.20
55 LINE ROLLER *Cannot be ordered 6M196701 8.80
56 ROLLER COLLAR (D) 6M196601 4.40
57 ROLLER MAG COLLAR (B) *Cannot be ordered 6J537801 12.10
58 ROLLER W 63754101 1.10
59 BAIL *Cannot be ordered 6M248201 72.60
60 BAIL HOLDER PLATE 6M196501 2.20
61 BALE HOLDER COLLAR 6M195801 2.20
62 BAIL HOLDER RETAINER 6B339801 2.20
63 STOPPER LEVER PACKING 6J554901 2.20
64 STOPPER LEVER CAP *Cannot be ordered 6J774702 12.10
65 STOPPER LEVER CAP SC 6J782101 2.20
66 MAG SHIELD PLATE SC 6H842807 2.20
67 MAG SHIELD PLATE *Cannot be ordered 6J553802 23.10
68 ONE-WAY CLUTCH W 6H502204 1.10
69 ONE-WAY CLUTCH *Cannot be ordered 6H412602 26.40
70 MAGSHIELD PACKING 6J553701 2.20
71 CLUTCH RING *Cannot be ordered 6J774801 7.70
72 PINION BEARING PLATE SC 6J552202 2.20
73 PINION BEARING PLATE 6J552102 2.20
74 PINION BALL BEARING (A) 6G279602 15.40
75 PINION BEARING (A) W 63758502 1.10
76 PINION + DRIVE GEAR SET *Cannot be ordered 6Z026348 77.00
77 PINION BALL BEARING (B) SP・W 6H814902 1.10
78 PINION BALL BEARING (B) W 6E096501 1.10
79 PINION BALL BEARING (B) 6G538007 15.40
80 PINION BALL BEARING (B) COLLAR *Cannot be ordered 6J552001 3.30
81 BODY *Cannot be ordered 6M488201 61.60
82 MAIN SHAFT *Cannot be ordered 6J783303 16.50
83 OSCILLATING POST 6J774301 2.20
84 REAR CAP W 6G315302 1.10
85 REAR CAP PACKING 6J783901 3.30
86 REAR CAP *Cannot be ordered 6J784003 8.80
87 REAR CAP SC (A) 6J774601 2.20
88 BAIL KICK COLLAR SC 6H158201 2.20
89 BAIL KICK COLLAR 6J571801 2.20
90 BAIL KICK COLLAR SC (B) 6J553603 2.20
91 LEAR CAP SC (B) W 6G315301 1.10
92 DRIVE BALL BEARING (A) 6G818902 15.40
93 DRIVE BEARING (A) W 6J555501 1.10
94 DRIVE BEARING (A) COVER *Cannot be ordered 6M488401 30.80
95 HANDLE CAP O-RING 6G399702 1.10
96 HANDLE CAP 6J555901 6.60
97 OSCILLATING GEAR W 6G610104 1.10
98 OSCILLATING GEAR *Cannot be ordered 6J570401 9.90
99 OSCILLATING GEAR O-RING 6G869601 1.10
100 OSCILLATING GEAR BEARING W 6H129201 1.10
101 OSCILLATING GEAR BALL BEARING 6G686904 15.40
102 OSCILLATING GEAR SC 6G940403 2.20
103 DRIVE GEAR BEARING 6J552701 2.20
104 DRIVE BALL BEARING (B) 6H739702 15.40
105 DRIVE BALL BEARING (B) W 6G613401 1.10
106 ENGINE PLATE O-RING 6J571501 1.10
107 ENGINE PLATE *Cannot be ordered 6M488502 36.30
108 HANDLE PACKING 6M457801 3.30
109 HANDLE *Not available 6M549001 145.20
201 HANDLE KNOB SP/W 6H744801 1.10
202 HANDLE KNOB W 6B411703 1.10
203 HANDLE KNOB BALL BEARING 6G469007 15.40
204 HANDLE KNOB 6J574001 36.30
205 HANDLE KNOB SC 6B679308 2.20
206 HANDLE KNOB CAP 6J574201 6.60
