[DAIWA] Genuine Spare Parts for 18 BLAST LT6000D-H Product code: 00065105 **Back-order (Shipping in 3-4 weeks after receiving order)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4690

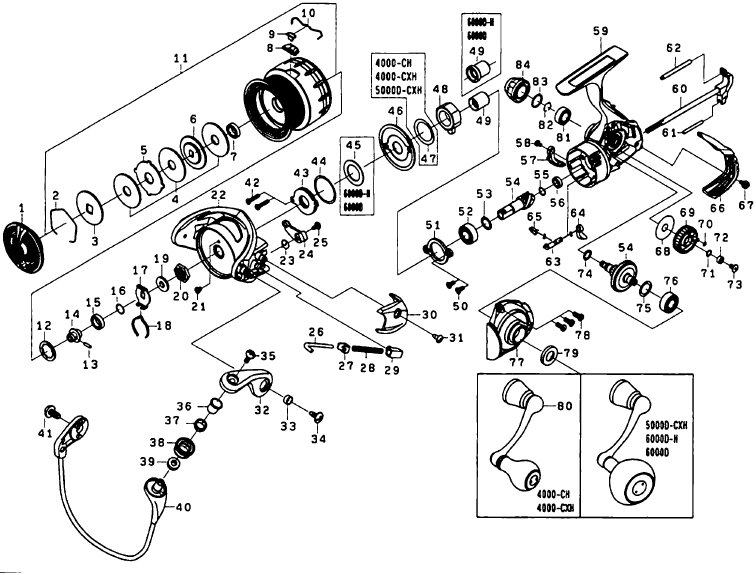

Reel Part's Schematic Diagram |
No. | Part Name | Part Code | Price (USD) |
1 | DRAG KNOBS | 139767 | 18.70 |
2 | DRAG RING | 185051 | 2.20 |
3 | DRAG DISC W (A) | 142163 | 2.20 |
4 | DRAG W SET (3 piece) | 144227 | 19.80 |
5 | DRAG LIP W | 143089 | 2.20 |
6 | DRAG DISC W (B) | 142168 | 2.20 |
7 | DRAG COLLAR | 110925 | 2.20 |
8 | LINE STOPPER PLATE | 160A56 | 2.20 |
9 | LINE STOPPER | 177080 | 2.20 |
10 | LINE STOPPER SP | 133996 | 2.20 |
11 | SPOOL | 128C83 | 106.70 |
12 | SPOOL W | 190A42 | 1.10 |
13 | SPOOL METAL SC | 10AA04 | 2.20 |
14 | SPOOL METAL | 132134 | 9.90 |
15 | SPOOL METAL BALL BEARING | 10E268 | 8.80 |
16 | SPOOL METAL BEARING W | 190A43 | 1.10 |
17 | CLICK HOLDER | 116747 | 2.20 |
18 | CLICK LEAF SP | 133A50 | 2.20 |
19 | ROTOR NUT PACKING | 185202 | 2.20 |
20 | ROTOR NUT | 140302 | 15.40 |
21 | ROTOR NUT SC | 10A748 | 2.20 |
22 | ROTOR *Cannot be ordered | 188A78 | 34.10 |
23 | KICK LEVER SP | 133861 | 2.20 |
24 | KICK LEVER | 111147 | 4.40 |
25 | KICK LEVER SC | 10A870 | 2.20 |
26 | ARM LEVER SHAFT *Discontinued | 122145 | 2.20 |
27 | ARM LEVER SHAFT PLATE | 160716 | 3.30 |
28 | ARM LEVER SP | 133897 | 2.20 |
29 | ARM LEVER SP HOLDER | 110300 | 2.20 |
30 | ARM LEVER SP COVER | 108096 | 3.30 |
31 | COVER SC | 10A652 | 2.20 |
32 | ARM LEVER | 101443 | 9.90 |
33 | ARM LEVER SC COLLAR | 110012 | 2.20 |
34 | ARM LEVER SC | 10A651 | 2.20 |
35 | ROLLER SC | 152124 | 2.20 |
36 | ROLLER COLLAR (A) | 191030 | 2.20 |
37 | ROLLER SLEEVE | 191029 | 2.20 |
38 | LINE ROLLER | 179147 | 7.70 |
39 | ROLLER COLLAR (B) | 191042 | 2.20 |
40 | BAIL | 164845 | 27.50 |
41 | BALE HOLDER SC | 10A651 | 2.20 |
42 | MAG SHIELD PLATE SC | 10A052 | 2.20 |
43 | MAG SHIELD PLATE *Cannot be ordered | 114109 | 23.10 |
44 | MAG SHIELD PLATE O-RING | 10J134 | 1.10 |
45 | MAG SHIELD CAP W | 190070 | 2.20 |
46 | MAG SHIELD CAP *Cannot be ordered | 108105 | 4.40 |
48 | ONE WAY CLUTCH *Cannot be ordered | 114116 | 26.40 |
49 | CLUTCH RING *Cannot be ordered | 110A73 | 18.70 |
50 | PINION BEARING PLATE SC | 10A051 | 2.20 |
51 | PINION BEARING PLATE | 182256 | 2.20 |
52 | PINION BALL BEARING (A) | 10E263 | 8.80 |
53 | PINION BALL BEARING (A) W | 190411 | 1.10 |
54 | PINION + DRIVE GEAR SET *Cannot be ordered | 138B32 | 88.00 |
55 | PINION BALL BEARING (B)W | 190826 | 1.10 |
56 | PINION BALL BEARING (B) | 10E379 | 8.80 |
57 | BAIL KICK COLLAR | 110039 | 2.20 |
58 | BAIL KICK COLLAR SC | 10A876 | 2.20 |
59 | BODY *Cannot be ordered | 166B03 | 39.60 |
60 | MAIN SHAFT *Cannot be ordered | 171564 | 18.70 |
61 | OSCILLATING POST (A) | 155336 | 2.20 |
62 | OSCILLATING POST (B) | 155307 | 2.20 |
63 | STOPPER CAM | 194185 | 3.30 |
64 | STOPPER LEVER | 196390 | 2.20 |
65 | STOPPER CAM LEAF SP | 133886 | 2.20 |
66 | REAR CAP | 116716 | 4.40 |
67 | REAR CAP SC | 10A053 | 2.20 |
68 | OSCILLATING GEAR W | 190760 | 1.10 |
69 | OSCILLATING GEAR O-RING *Cannot be ordered | 106095 | 4.40 |
70 | OSCILLATING GEAR O-RING | 10J012 | 1.10 |
71 | OSCILLATING GEAR BEARING W | 190711 | 1.10 |
72 | OSCILLATING GEAR BALL BEARING | 10E348 | 8.80 |
73 | OSCILLATING GEAR SC | 10A922 | 2.20 |
74 | DRIVE GEAR O-RING | 10F064 | 2.20 |
75 | DRIVE W | 190058 | 1.10 |
76 | DRIVE BALL BEARING (A) | 10E349 | 8.80 |
77 | BODY COVER | 168B14 | 26.40 |
78 | BODY COVER SC | 10AA41 | 2.20 |
79 | HANDLE PACKING | 185220 | 2.20 |
80 | HANDLE | 1H2B32 | 94.60 |
81 | DRIVE BALL BEARING (B) | 10E238 | 8.80 |
82 | DRIVE BEARING RING | 185120 | 2.20 |
83 | HANDLE CAP O-RING | 10J065 | 1.10 |
84 | HANDLE CAP | 151218 | 4.40 |
201 | HANDLE KNOB W | 190196 | 1.10 |
202 | HANDLE KNOB COLLAR | 110411 | 2.20 |
203 | HANDLE KNOB | 1H1554 | 29.70 |
204 | HANDLE KNOB SC | 10A333 | 2.20 |
205 | HANDLE KNOB CAP (WITH O-RING) | 116783 | 15.40 |
206 | HANDLE KNOB CAP O-RING | 10J083 | 1.10 |
