[DAIWA] Genuine Spare Parts for 20 REVROS LT2000S Product code: 00060061 **Back-order (Shipping in 3-4 weeks after receiving order)
![Photo1: [DAIWA] Genuine Spare Parts for 20 REVROS LT2000S Product code: 00060061 **Back-order (Shipping in 3-4 weeks after receiving order) (1)](https://www.hedgehog-studio.co.jp/phone/data/hedgehog-studio/product/20240229_0fbb71.png)
Our Selling Price: US$0.77 [Regular Price: US$1.10]
Prices vary according to options.
Item Description
ATTENTION:
- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.
- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.
*Please make sure to read about the conditions before you order.
- Genuine Spool Purchase
* If you just want the genuine spool (No.6 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4747

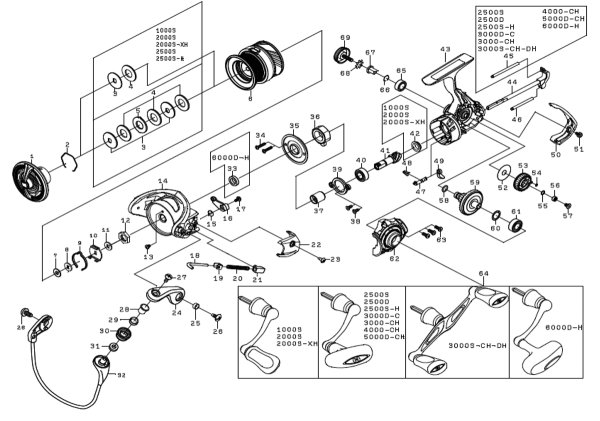

| Reel Part's Schematic Diagram |
| No. | Part Name | Part Code | Price (USD) |
| 1 | DRAG KNOBS | 139760 | 12.10 |
| 2 | DRAG RINGS | 185237 | 2.20 |
| 3 | DRAG DISK W | 142165 | 2.20 |
| 4 | DRAG W (1 piece) | 144226 | 6.60 |
| 6 | SPOOL (2-6) | 128D55 | 34.10 |
| 7 | SPOOL W (A) | 190A49 | 1.10 |
| 8 | SPOOL W (B) | 190602 | 1.10 |
| 9 | CLICK LEAF SP | 133A50 | 2.20 |
| 10 | CLICK HOLDER | 116819 | 2.20 |
| 11 | CLICK HOLDER W | 190A50 | 1.10 |
| 12 | ROTOR NUT | 140307 | 2.20 |
| 13 | ROTOR NUT SC | 10A748 | 2.20 |
| 14 | ROTOR | 188B13 | 12.10 |
| 15 | KICK LEVER SP | 133858 | 2.20 |
| 16 | KICK LEVER | 111153 | 3.30 |
| 17 | KICK LEVER SC | 10A870 | 2.20 |
| 18 | ARM LEVER SHAFT | 122160 | 2.20 |
| 19 | ARM LEVER SHAFT PLATE | 160716 | 3.30 |
| 20 | ARM LEVER SP | 133859 | 2.20 |
| 21 | ARM LEVER SP HOLDER | 110056 | 2.20 |
| 22 | ARM LEVER SP COVER | 108109 | 3.30 |
| 23 | ARM LEVER SP COVER SC | 10A652 | 2.20 |
| 24 | ARM LEVER | 101460 | 3.30 |
| 25 | ARM LEVER SC COLLAR | 110055 | 2.20 |
| 26 | BAIL SC | 10A651 | 2.20 |
| 27 | ROLLER SC | 152124 | 2.20 |
| 28 | ROLLER COLLAR (A) | 191030 | 2.20 |
| 29 | ROLLER COLLAR (B) | 191029 | 2.20 |
| 30 | LINE ROLLER | 179147 | 7.70 |
| 31 | ROLLER COLLAR (C) | 191065 | 2.20 |
| 32 | BAIL | 164852 | 23.10 |
| 34 | SHIELD CAP SC | 10A741 | 2.20 |
| 35 | SHIELD CAP | 182261 | 3.30 |
| 36 | ONE-WAY CLUTCH | 114118 | 23.10 |
| 37 | CLUTCH RING | 110034 | 5.50 |
| 38 | PINION BEARING PLATE SC | 10A059 | 2.20 |
| 39 | PINION BEARING PLATE | 182269 | 2.20 |
| 40 | PINION BALL BEARING | 10E210 | 8.80 |
| 41 | PINION | 154703 | 6.60 |
| 42 | PINION COLLAR | 110B22 | 2.20 |
| 43 | BODY | 166B41 | 8.80 |
| 44 | MAIN SHAFT *Cannot be ordered | 171551 | 8.80 |
| 46 | OSCILLATING POST | 155561 | 2.20 |
| 47 | STOPPER CAM | 194186 | 2.20 |
| 48 | STOPPER CAM SP | 133886 | 2.20 |
| 49 | STOPPER LEVER | 196408 | 2.20 |
| 50 | REAR CAP | 116821 | 3.30 |
| 51 | REAR CAP SC | 10A652 | 2.20 |
| 52 | OSCILLATING GEAR W | 190977 | 1.10 |
| 53 | OSCILLATING GEAR O-RING *Cannot be ordered | 106164 | 6.60 |
| 54 | OSCILLATING GEAR O-RING | 10J113 | 1.10 |
| 55 | OSCILLATING GEAR BEARING W | 190854 | 1.10 |
| 56 | OSCILLATING GEAR BALL BEARING | 10E295 | 8.80 |
| 57 | OSCILLATING GEAR SC | 10A058 | 2.20 |
| 58 | DRIVE GEAR O-RING | 10J071 | 1.10 |
| 59 | DRIVE GEAR | 138A57 | 8.80 |
| 60 | DRIVE W | 190509 | 1.10 |
| 61 | DRIVE BALL BEARING (A) | 10E210 | 8.80 |
| 62 | BODY COVER | 168B60 | 9.90 |
| 63 | BODY COVER SC | 123164 | 2.20 |
| 64 | HANDLE | 1H2B76 | 22.00 |
| 65 | DRIVE BALL BEARING (B) | 10E381 | 8.80 |
| 66 | DRIVE BALL BEARING (B) RING | 185116 | 2.20 |
| 67 | HANDLE COLLAR | 104014 | 2.20 |
| 68 | HANDLE W | 134001 | 2.20 |
| 69 | HANDLE SC | 152170 | 3.30 |
| 300 | HANDLE KNOB CAP | 116756 | 2.20 |
| 301 | LINE STOPPER | 177082 | 2.20 |
| 302 | LINE STOPPER PLATE | 160B28 | 2.20 |
| 303 | LINE STOPPER SPRING | 133A01 | 2.20 |
