[DAIWA] Genuine Spare Parts for 15 SALTIGA 4000 Product code: 00059543 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 15 SALTIGA 4000 Product code: 00059543 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

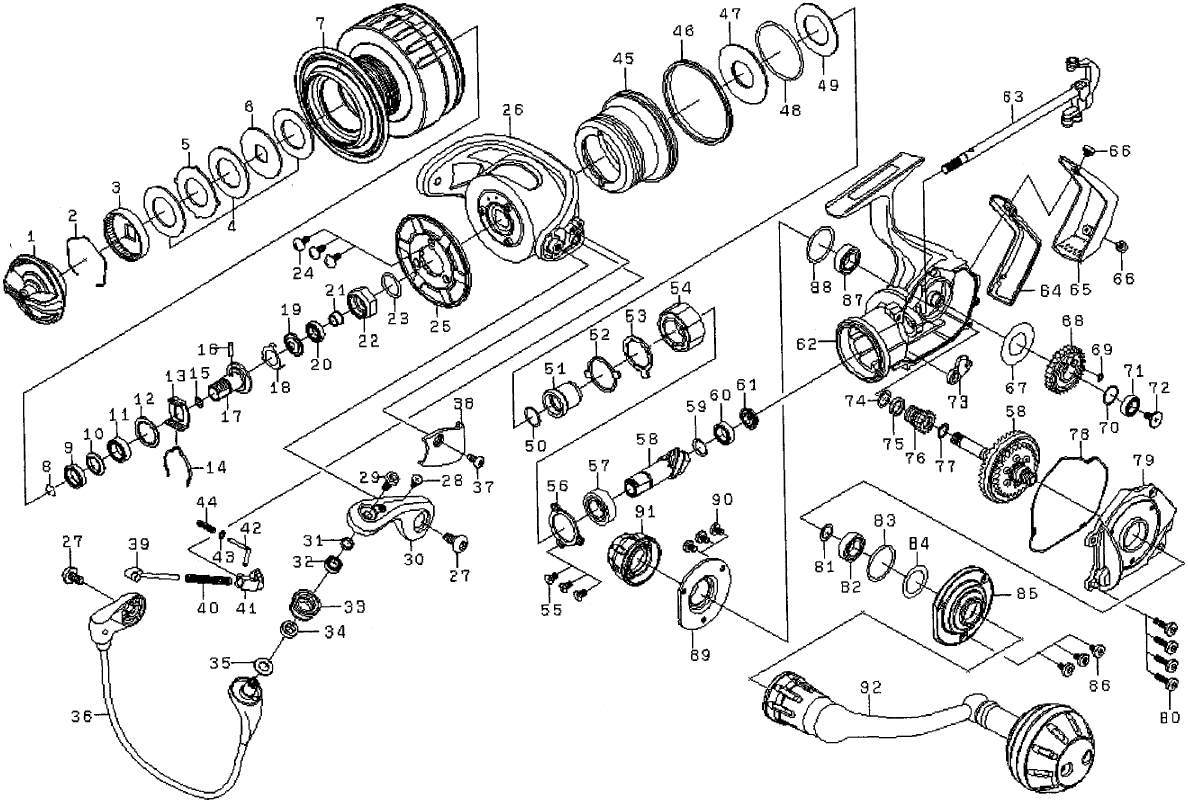

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 139693 27.5
2 DRAG RING 185059 2.2
3 DRAG RATCHET 180232 8.8
4 DRAG DOUBLE SET (3 piece) 144193 36.3
5 DRAG GRIP W 143082 2.2
6 DRAG DESK W 142147 2.2
7 SPOOL (2-7) 128913 278.3
8 SPOOL METAL RING 185120 2.2
9 SPOOL METAL BALL BEARING (A) 10E075 8.8
10 METAL BALL BEARING PACKING 185174 3.3
11 SPOOL METAL BALL BEARING (B) 10E275 8.8
12 SPOOL W 190952 1.1
13 CLICK HOLDER 116377 3.3
14 CLICKLEAF SP 181269 2.2
15 SPOOL METAL O-RING 10J108 1.1
16 SPOOL METAL PIN 156096 2.2
17 SPOOL METAL 132094 7.7
18 ROTOR NUT PLATE 160459 2.2
19 ROTOR NUT PACKING 185175 3.3
20 ROTOR NUT BALL BEARING 10E367 15.4
21 ROTOR NUT COLOR 110922 3.3
22 ROTOR NUT 140252 3.3
23 ROTOR NUT O-RING 185077 2.2
24 ROTOR COVER SC 10A870 2.2
25 ROTOR COVER 162123 8.8
26 ROTOR *Cannot be ordered 188113 67.1
27 HOLDER SC 10A901 2.2
28 ARM LEVER SC 10A116 3.3
29 ROLLER SC 10A899 2.2
30 ARM LEVER 101330 27.5
31 ROLLER COLLAR (A) 191063 2.2
32 ROLLER BALL BEARING (MAG SHIELD) *Cannot be ordered 10E391 45.1
33 LINE ROLLER 179146 8.8
34 ROLLER COLLAR (B) 191064 3.3
35 ROLLER W 193014 1.1
36 VEIL *Cannot be ordered 164796 69.3
37 ARM LEVER SP COVER SC 10A898 2.2
38 ARM LEVER SP COVER 108011 6.6
39 ARM LEVER SHAFT 156117 2.2
40 ARM LEVER SP 133882 2.2
41 ARM LEVER SP COLOR 110924 2.2
42 ROTOR BRAKE SHAFT 122333 3.3
43 ROTOR BRAKE W 190773 1.1
44 ROTOR BRAKE SP 133883 2.2
45 INFINITE COVER *Cannot be ordered 108107 36.3
46 INFINITE COVER O-RING 10J109 1.1
47 MUG SHIELD PLATE *Cannot be ordered 114083 23.1
48 MAG SHIELD PLATE O RING 10J096 1.1
49 MAG SHIELD PLATE W 190953 2.2
50 CLUTCH RING O RING 10J110 1.1
51 CLUTCH RING *Cannot be ordered 110921 18.7
52 BEARING PLATE 160743 2.2
53 ONE WAY CLUTCH PLATE 160744 2.2
54 ONE WAY CLUTCH *Cannot be ordered 114045 26.4
55 PINION BEARING (A) PLATE SC 10A499 2.2
56 PINION BEARING (A) PLATE 160461 2.2
57 PINION BALL BEARING (A) 10E263 8.8
58 PINION + DRIVE GEAR SET *Cannot be ordered 138812 132
59 PINION BALL BEARING (B) W 190086 1.1
60 PINION BALL BEARING (B) 10E257 8.8
61 PINION BEARING (B) COLLAR 110923 3.3
62 BODY *Cannot be ordered 166240 73.7
63 MAIN SHAFT *Cannot be ordered 171490 30.8
64 REAR CAP GASKET 185176 3.3
65 REAR CAP 116662 77
66 REAR CAP SC 10A902 3.3
67 OSCILLATING GEAR (A)W 190954 1.1
68 OSCILLATING GEAR (A) 112684 8.8
69 OSCILLATING GEAR (A) O-RING 10J012 1.1
70 OSCILLATING GEAR BEARING W 190711 1.1
71 OSCILLATING GEAR BALL BEARING 10E211 8.8
72 OSCILLATING GEAR SC 10A922 2.2
73 STOPPER 127241 7.7
74 DRIVE B BEARING O-RING (A) 10J135 1.1
75 OSCILLATING GEAR (B) RING 185177 2.2
76 OSCILLATING GEAR 106142 19.8
77 OSCILLATING GEAR (B) O-RING 10J136 1.1
78 BODY COVER PACKING 185178 4.4
79 BODY COVER *Cannot be ordered 168304 46.2
80 BODY COVER SC 158095 2.2
81 DRIVE B BEARING O-RING (A) 10J135 1.1
82 DRIVE B BEARING (MAG SHIELD) *Cannot be ordered 10E389 45.1
83 DRIVE B BEARING O-RING (B) 10J137 1.1
84 DRIVE W 190712 1.1
85 DRIVE BEARING COVER (L) *Cannot be ordered 168305 46.2
86 DRIVE BEARING COVER SC 10A846 4.4
87 DRIVE B BEARING (MAG SHIELD) *Cannot be ordered 10E389 45.1
88 DRIVE B BEARING O-RING (B) 10J137 1.1
89 DRIVE BEARING COVER (R) *Cannot be ordered 168306 46.2
90 DRIVE BEARING COVER SC 10A846 4.4
91 HANDLE CAP 151194 24.2
92 HANDLE 1H2113 236.5
200 HANDLE KNOB PACKING 185180 2.2
201 HANDLE KNOB W 190196 1.1
202 HANDLE KNOB BALL BEARING 10E313 15.4
203 HANDLE KNOB (A)/BLUE 1H1583 53.9
204 HANDLE KNOB (B) / GUN METAL (WITHOUT RING) 1H1584 67.1
205 HANDLE KNOB (A) SC 10A333 2.2
206 HANDLE KNOB (B) O-RING 190649 1.1
207 HANDLE KNOB (B) SC 10A513 2.2
300 SPOOL BAND 199835 15.4
