[DAIWA] Genuine Spare Parts for 16 CERTATE 2004 Product code: 00056303 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 16 CERTATE 2004 Product code: 00056303 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

Part Number:
Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.

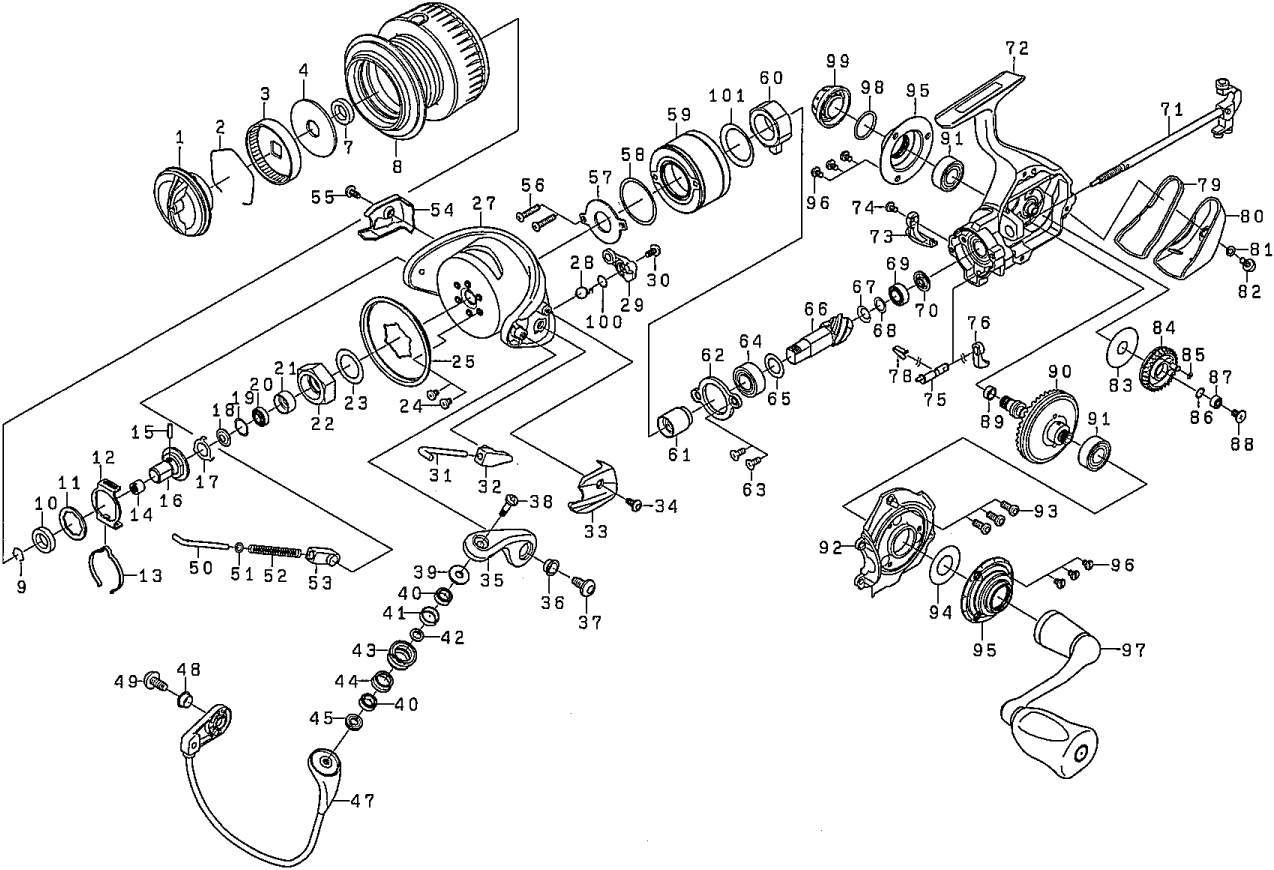

 Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOBS 139709 30.80
2 DRAG RINGS 185061 2.20
3 DRAG RATCHET 180157 7.70
4 DRAG W (1 piece) 144189 6.60
7 DRAG COLLAR (7 11 2.5) 110869 2.20
8 SPOOL (2-8) 128973 139.70
9 SPOOL METAL RING 185116 2.20
10 SPOOL METAL COLLAR (7 11 2.5) 110869 2.20
11 SPOOL W 190976 1.10
12 CLICK HOLDER 116512 2.20
13 CLICK LEAF SP 133857 2.20
14 SPOOL METAL NUT 140312 3.30
15 SPOOL METAL PIN 156139 2.20
16 SPOOL METAL 132088 6.60
17 ROTOR NUT PLATE 160455 2.20
18 ROTOR NUT PACKING 185157 2.20
19 ROTOR NUT BEARING W 134008 2.20
20 ROTOR NUT BALL BEARING 10E364 17.60
21 ROTOR NUT COLLAR 110090 3.30
22 ROTOR NUT 140327 8.80
23 ROTOR NUT W 190322 1.10
24 ROTOR COVER SC 10A748 2.20
25 ROTOR COVER 162174 3.30
27 ROTOR *Cannot be ordered 188130 47.30
28 KICK LEVER SP 133965 2.20
29 KICK LEVER 111159 8.80
30 KICK LEVER SC 10A870 2.20
31 ARM LEVER SHAFT 122166 3.30
32 ARM LEVER SHAFT HOLDER 110118 2.20
33 ARM LEVER COVER 108126 6.60
34 COVER SC 10A082 2.20
35 ARM LEVER 101394 15.40
36 ARM LEVER SC COLLAR 110123 2.20
37 ARM LEVER SC 10A081 2.20
38 ROLLER SC 187088 3.30
39 ROLLER MAG COLLAR (A) *Cannot be ordered 191066 12.10
40 ROLLER BALL BEARING 10E360 15.40
41 ROLLER COLLAR (A) 191069 3.30
42 ROLLER COLLAR (B) 110119 2.20
43 LINE ROLLER *Cannot be ordered 179151 8.80
44 ROLLER COLLAR (C) 191068 4.40
45 ROLLER MAG COLLAR (B) *Cannot be ordered 191067 11.00
47 BAIL *Cannot be ordered 164866 53.90
48 BAIL HOLDER SC COLLAR 110123 2.20
49 BAIL HOLDER SC 10A081 2.20
50 BAIL SHAFT 122127 3.30
51 BAIL SHAFT W 190773 1.10
52 BAIL SHAFT SP 133961 2.20
53 BAIL SHAFT SP HOLDER 110623 2.20
54 BAIL HOLDER COVER 108125 6.60
55 BALE HOLDER COVER SC 10A082 2.20
56 MAG SHIELD PLATE SC 10A873 2.20
57 MAG SHIELD PLATE *Cannot be ordered 114112 23.10
58 MAGSHIELD PLATE O-RING 10J143 1.10
59 MAG SHIELD CAP *Cannot be ordered 108127 11.00
60 ONE-WAY CLUTCH *Cannot be ordered 114124 26.40
61 CLUTCH RING *Cannot be ordered 110872 9.90
62 PINION BEARING PLATE 182251 2.20
63 PINION BEARING PLATE SC 10A411 2.20
64 PINION BALL BEARING (A) 10E339 15.40
65 PINION BEARING (A) W 190917 1.10
66 PINION + DRIVE GEAR SET *Cannot be ordered 138852 111.10
67 PINION BEARING (B) SP・W 190918 1.10
68 PINION BEARING (B) W 193014 1.10
69 PINION BALL BEARING (B) 10E356 15.40
70 PINION COLLAR 110873 3.30
71 MAIN SHAFT *Cannot be ordered 171504 30.80
72 BODY *Cannot be ordered 166265 58.30
73 BAIL KICK COLLAR 110875 2.20
74 BAIL KICK COLLAR SC 10A113 2.20
75 STOPPER CAM 194174 9.90
76 STOPPER LEVER 196395 6.60
77 STOPPER LEVER RETAINER 10F014 2.20
78 STOPPER CAM LEAF SP 133860 2.20
79 REAR CAP PACKING 185160 3.30
80 REAR CAP 116514 6.60
81 REAR CAP W 190009 1.10
82 LEAR CAP SC 10A875 2.20
83 OSCILLATING GEAR W 190948 1.10
84 OSCILLATING GEAR O-RING *Cannot be ordered 106099 9.90
85 OSCILLATING GEAR O-RING 10J068 1.10
86 OSCILLATING GEAR BEARING W 190854 1.10
87 OSCILLATING GEAR BALL BEARINGS 10E224 8.80
88 OSCILLATING GEAR SC 10A876 2.20
89 DRIVE GEAR RING 185161 2.20
90 PINION + DRIVE GEAR SET *Cannot be ordered 138852 111.10
91 DRIVE BALL BEARING *Cannot be ordered 10E383 45.10
92 BODY COVER *Cannot be ordered 168348 27.50
93 BODY COVER SC 158095 2.20
94 DRIVE W 190911 1.10
95 DRIVE BEARING COVER *Cannot be ordered 168346 24.20
96 DRIVE BEARING COVER SC 10A980 2.20
97 HANDLE 1H2147 138.60
98 HANDLE CAP O-RING 10J076 1.10
99 HANDLE CAP 151164 4.40
100 KICK LEVER W 190057 1.10
101 ONE-WAY CLUTCH W 190A28 1.10
200 HANDLE KNOB W 190196 1.10
201 HANDLE KNOB COLLAR 110879 2.20
202 HANDLE KNOB 1H1477 15.40
203 HANDLE KNOB SC 10A333 2.20
204 HANDLE KNOB CAP 116262 2.20
205 ARM LEVER COVER W 190673 1.10
300 WASHERS (REAL FOUR/RCS) 190922 2.20
