[DAIWA] Genuine Spare Parts for 18 CALDIA LT4000S-C Product code: 00056048 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.77 [Regular Price: US$1.10]

Prices vary according to options.

View availability

Part Number:

Quantity:

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.

*Please make sure to read about the conditions before you order.

- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/3861

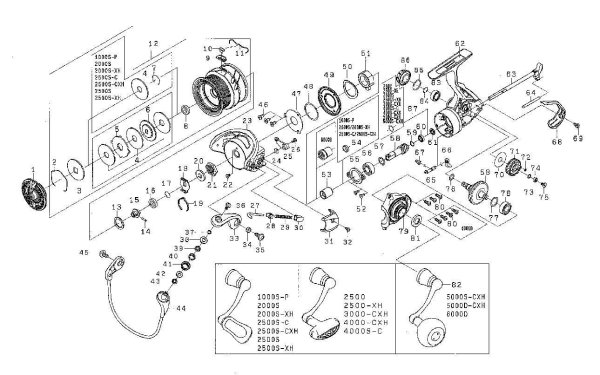

　Reel Part's Schematic Diagram

No.	Part Name	Part Code	Price (USD)
1	DRAG KNOB	139768	16.50
2	DRAG RING	185228	2.20
3	DRAG DISK W (A)	142165	2.20
4	DRAG W SET (3 piece)	144225	19.80
5	DRAG GRIP W	190A37	2.20
6	DRAG DISK W (B)	142167	2.20
8	SPOOL COLLAR	110A39	2.20
9	LINE STOPPER PLATE	160A56	2.20
10	LINE STOPPER	177080	2.20
11	LINE STOPPER SPRING	133996	2.20
12	SPOOL (2-11)	128D16	101.20
13	SPOOL W (A)	190A61	1.10
14	SPOOL METAL SC	10AA03	2.20
15	SPOOL METAL	132133	9.90
16	SPOOL METAL COLOR	110925	2.20
17	SPOOL W (B)	190A34	1.10
18	CLICK HOLDER	116819	2.20
19	CLICKLEAF SP	133A50	2.20
20	ROTOR NUT PACKING	185203	3.30
21	ROTOR NUT	140301	15.40
22	ROTOR NUT SC	10A748	2.20
23	ROTOR *Cannot be ordered	188A44	31.90
24	KICK LEVER SP	133861	2.20
25	KICK LEVER	111176	4.40
26	KICK LEVER SC	10A870	2.20
27	ARM LEVER SHAFT	122137	2.20
28	ARM LEVER SHAFT PLATE	160716	3.30
29	ARM LEVER SP	133862	2.20
30	ARM LEVER SP HOLDER	110300	2.20
31	ARM LEVER SP COVER	108A26	3.30
32	COVER SC	10A871	2.20
33	ARM LEVER	101369	6.60
34	ARM LEVER SC COLOR	110012	2.20
35	ARM LEVER SC	10A872	2.20
36	ROLLER SC	187082	2.20
37	ROLLER COLLAR (A)	110011	2.20
38	ROLLER PACKING	185136	3.30
39	ROLLER BALL BEARING	10E353	12.10
40	ROLLER COLLAR (B)	110010	2.20
41	LINE ROLLER	179123	7.70
42	ROLLER COLLAR (C)	191061	2.20
43	ROLLER COLLAR (D)	110017	2.20
44	VEIL	164894	36.30
45	VEIL HOLDER SC	10A872	2.20
46	MAG SHIELD PLATE SC	10A199	2.20
47	MAG SHIELD PLATE *Cannot be ordered	114123	23.10
48	MAG SHIELD PLATE O RING	10J143	1.10
49	MUG SHIELD CAP *Cannot be ordered	108A21	4.40
50	ONE-WAY CLUTCH W	190A44	1.10
51	ONE WAY CLUTCH *Cannot be ordered	114119	26.40
52	PINION BEARING PLATE SC	10A778	2.20
53	CLUTCH RING *Cannot be ordered	110A62	6.60
55	PINION BEARING PLATE	182245	2.20
56	PINION BALL BEARING (A)	10E323	8.80
57	PINION BEARING (A) W	190137	1.10
58	PINION + DRIVE GEAR SET *Cannot be ordered	138B90	46.20
59	PINION BEARING (B) SP/W	190A36	1.10
60	PINION BALL BEARING (B)	10E209	8.80
61	PINION COLOR	110A10	3.30
62	BODY *Cannot be ordered	166B21	37.40
63	MAIN SHAFT *Cannot be ordered	171546	36.30
64	OSCILLATING POST	155556	2.20
65	STOPPER CAM	194178	3.30
66	STOPPER LEVER	196390	2.20
67	STOPPER CAM LEAF SP	133886	2.20
68	REAR CAP	116722	3.30
69	REAR CAP SC	10A196	2.20
70	OSCILLATING GEAR W	190A45	1.10
71	OSCILLATING GEAR *Cannot be ordered	106159	6.60
72	OSCILLATING GEAR O-RING	10J062	1.10
73	OSCILLATING GEAR BEARING W	190854	1.10
74	OSCILLATING GEAR BALL BEARING	10E295	8.80
75	OSCILLATING GEAR SC	10A779	2.20
76	DRIVE GEAR RING	10J071	1.10
77	DRIVE W	190137	1.10
78	DRIVE BALL BEARING	10E210	8.80
79	BODY COVER	168B34	24.20
80	BODY COVER SC	10A197	2.20
81	HANDLE PACKING	185181	2.20
82	HANDLE	1H2A84	82.50
83	DRIVE BALL BEARING	10E381	8.80
84	DRIVE BEARING RING	185116	2.20
85	HANDLE CAP O-RING	185077	2.20
86	HANDLE CAP	151202	4.40
87	PINION BALL BEARING (B) W	190913	1.10
200	HANDLE KNOB W	190196	1.10
201	HANDLE KNOB COLOR	110411	2.20
202	HANDLE KNOB	1H1705	36.30
203	HANDLE KNOB SC	10A333	2.20
204	HANDLE KNOB CAP	116745	6.60
