[DAIWA] Genuine Spare Parts for 21 CALDIA LT4000-CXH Product code: 00060291 **Back-order (Shipping in 3-4 weeks after receiving order)

[DAIWA] Genuine Spare Parts for 21 CALDIA LT4000-CXH Product code: 00060291 **Back-order (Shipping in 3-4 weeks after receiving order)

Our Selling Price: US$0.66 [Regular Price: US$1.10]

Prices vary according to options.

View availability
Part Number:
Quantity:
Contact Us

Item Description

ATTENTION:

- US$5.00 commission will be charged additionally.
* Select "+US$5.00 for Genuine Parts" for commission in STEP 2 on the order screen.

- It takes about 3 to 4 weeks for us to get ready to ship the items after you order.



*Please make sure to read about the conditions before you order.


- Genuine Spool Purchase

* If you just want the genuine spool (No.9 / Spool Unit), you can purchase it from the following link without waiting for weeks if it's in our stock now.
https://www.hedgehog-studio.co.jp/phone/product/4964

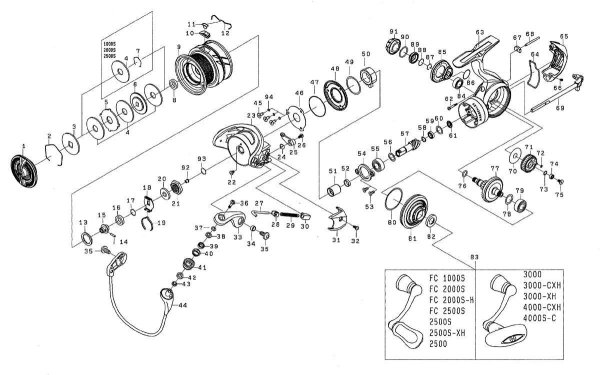

　Reel Part's Schematic Diagram



No. Part Name Part Code Price (USD)
1 DRAG KNOB 139818 16.50
2 DRAG RING 185237 2.20
3 DRAG DISK W (A) 142179 2.20
4 DRAG W SET (3 piece) 144225 19.80
5 DRAG GRIP W 190A37 2.20
6 DRAG DISK W (B) 142166 2.20
8 SPOOL COLLAR 110B52 2.20
9 SPOOL (2-12) 128E45 101.20
10 LINE STOPPER PLATE 160B27 2.20
11 LINE STOPPER 177082 2.20
12 LINE STOPPER SP 133A01 2.20
13 SPOOL W 190A35 1.10
14 SPOOL METAL SC 10AA03 2.20
15 SPOOL METAL 132133 9.90
16 SPOOL METAL COLOR 110925 2.20
17 SPOOL METAL W 190A34 1.10
18 CLICK HOLDER 116819 2.20
19 CLICKLEAF SP 133857 2.20
20 ROTOR NUT PACKING 185203 3.30
21 ROTOR NUT 140412 3.30
22 ROTOR NUT SC 10A748 2.20
23 ROTOR *Cannot be ordered 188B45 27.50
24 KICK LEVER SP 133861 2.20
25 KICK LEVER 111178 3.30
26 KICK LEVER SC 10A870 2.20
27 ARM LEVER SHAFT 122162 2.20
28 ARM LEVER SHAFT HOLDER 160716 3.30
29 ARM LEVER SP 133862 2.20
30 ARM LEVER SP HOLDER 110056 2.20
31 ARM LEVER COVER 108A33 3.30
32 ARM LEVER COVER SC 10AA13 2.20
33 ARM LEVER 101467 6.60
34 ARM LEVER SC COLOR 110055 2.20
35 ARM LEVER SC 10AA14 2.20
36 ROLLER SC 187082 2.20
37 ROLLER COLLAR (A) 110B53 2.20
38 ROLLER COLLAR (A) PACKING 185136 3.30
39 ROLLER BALL BEARING 10E353 12.10
40 ROLLER BEARING COLLAR 110010 2.20
41 LINE ROLLER 179109 7.70
42 ROLLER COLLAR (B) 191061 2.20
43 ROLLER COLLAR (C) 110B54 2.20
44 VEIL 164942 34.10
45 MAG SHIELD PLATE SC 10A741 2.20
46 MAG SHIELD PLATE *Cannot be ordered 114123 23.10
47 MAG SHIELD O-RING 10J143 1.10
48 MUG SHIELD CAP *Cannot be ordered 108A84 3.30
49 ONE-WAY CLUTCH W 190A44 1.10
50 ONE WAY CLUTCH *Cannot be ordered 114149 26.40
51 CLUTCH RING *Cannot be ordered 110A59 7.70
52 CLUTCH RING COLLAR 110B55 2.20
53 PINION BEARING PLATE SC 10A125 2.20
54 PINION BEARING PLATE 160C56 3.30
55 PINION BALL BEARING (A) 10E210 8.80
56 PINION BALL BEARING (A) W 190137 1.10
57 PINION + DRIVE GEAR SET *Cannot be ordered 138C17 46.20
58 PINION BALL BEARING (B) W 190014 1.10
59 PINION BALL BEARING (B) 10E209 8.80
60 PINION COLOR W 190913 1.10
61 PINION COLOR 110A10 3.30
62 REAR CAP SC (A) 10AB38 2.20
63 BODY *Cannot be ordered 166B76 30.80
64 REAR CAP PACKING 185274 3.30
65 REAR CAP 116858 4.40
66 REAR CAP SC (B) 10AB31 2.20
67 OSCILLATING POST COLOR 110B56 2.20
68 OSCILLATING POST 155589 2.20
69 MAIN SHAFT *Cannot be ordered 171611 34.10
70 OSCILLATE GEAR W 190A45 1.10
71 OSCILLATING GEAR *Cannot be ordered 106181 6.60
72 OSCILLATING GEAR O-RING 10J062 1.10
73 OSCILLATING GEAR BEARING W 190854 1.10
74 OSCILLATING GEAR BALL BEARING 10E295 8.80
75 OSCILLATE GEAR SC 10A058 2.20
76 DRIVE GEAR O-RING 10J071 1.10
77 PINION + DRIVE GEAR SET *Cannot be ordered 138C17 46.20
78 DRIVE W 190510 1.10
79 DRIVE BALL BEARING (A) 10E210 8.80
80 ENGINE PLATE O-RING 10J165 1.10
81 ENGINE PLATE *Cannot be ordered 168C23 30.80
82 HANDLE PACKING 185181 2.20
83 HANDLE 1H2C37 77.00
84 DRIVE BALL BEARING (B) 10E381 8.80
85 SET PLATE *Cannot be ordered 137311 7.70
86 SET PLATE O-RING 10J187 2.20
87 DRIVE BEARING (B) RING 185116 2.20
88 DRIVE BEARING (B) O-RING 10J111 1.10
89 DRIVE BEARING (B) COVER *Cannot be ordered 168C17 12.10
90 HANDLE CAP O-RING 185077 2.20
91 HANDLE CAP 151210 4.40
92 ROTOR NUT COLLAR 110C08 3.30
94 PLATE SC/W 190621 1.10
200 HANDLE KNOB W 190196 1.10
201 HANDLE KNOB COLOR 110411 2.20
202 HANDLE KNOB 1H1708 17.60
203 HANDLE KNOB SC 10A333 2.20
204 HANDLE KNOB CAP 116755 2.20
